Axle Bracket Bushing

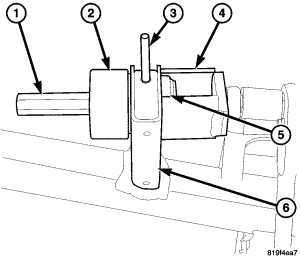

Fig 1: Identifying Axle Bracket Bushing
GC0063432Courtesy of CHRYSLER LLC
  1. Place special tool 9948-3 Nut (1), 9948-1 Receiver (5), 9948-5 Spacer (3), 9948-4 Driver (2) and the press the bushing in the axle bracket (5).
  2. Remove tools and install the upper suspension arm. See REMOVAL .
