Engine Control Module (ECM)

WARNING: This page is about a different car, the 2007 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

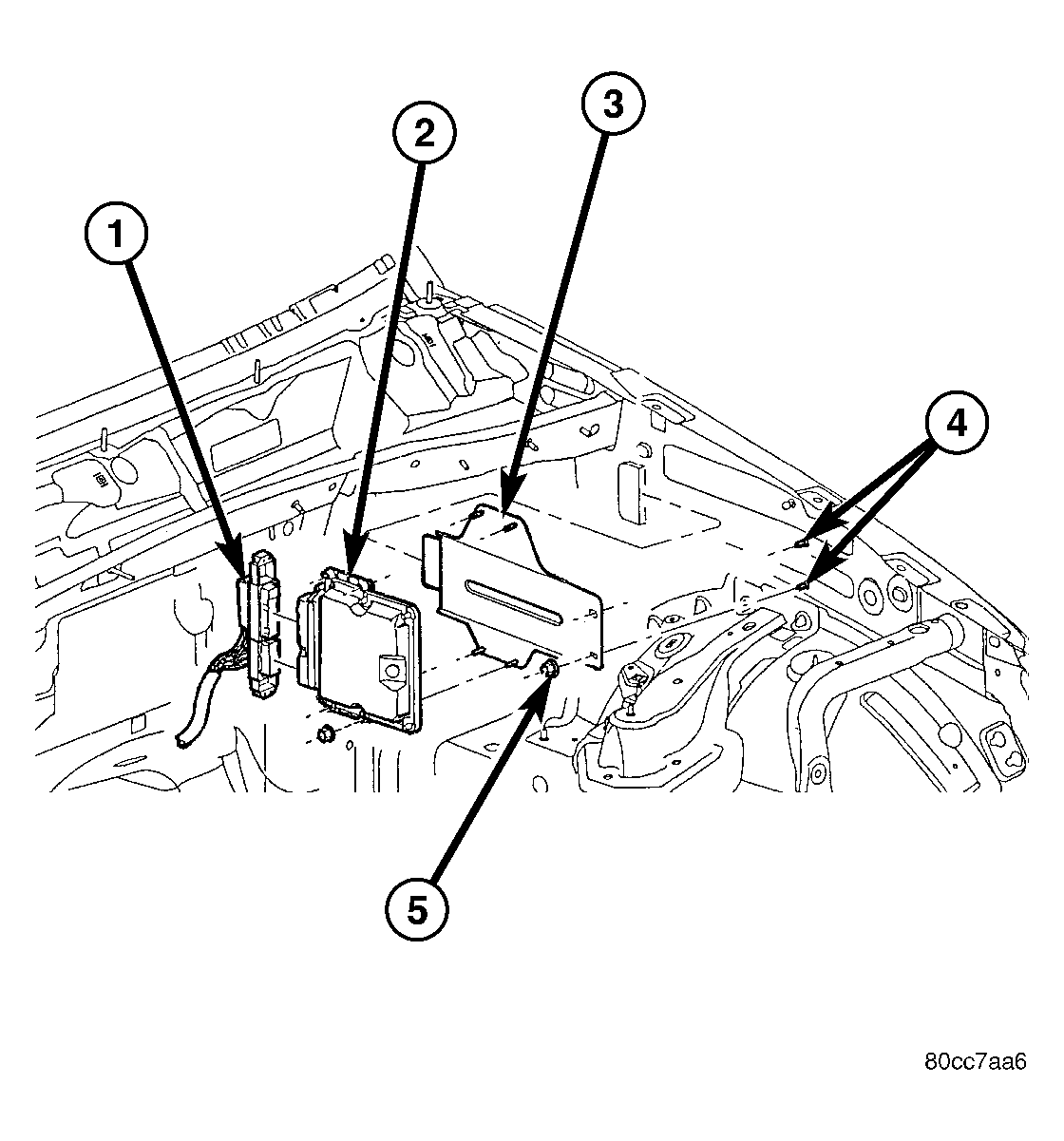

Fig 1: Engine Control Module (ECM)

Courtesy of CHRYSLER LLC

1 - ECM ELECTRICAL CONNECTORS

2 - ENGINE CONTROL MODULE (ECM)

3 - ECM MOUNTING BRACKET

4 - ECM MOUNTING BRACKET MOUNTING STUDS

5 - MOUNTING BRACKET RETAINING NUTS

The Engine Control Module (ECM) (2) is located in the left side of engine compartment attached to the left inner fender behind the battery. The ECM also incorporates the barometric pressure sensor in it's housing. See Fig 1.
