Manual Transmissions

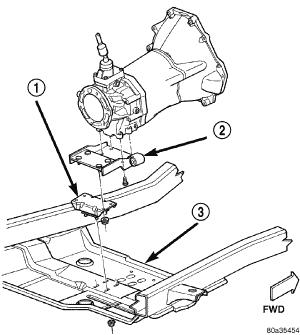

Fig 1: Rear Mount (Manual Transmission)
GC0064409Courtesy of CHRYSLER LLC
1 - CUSHION
2 - BRACKET
3 - SKID PLATE
  1. Disconnect negative cable from battery.
  2. Raise the vehicle and support the transmission.
  3. Remove the nuts holding the support cushion to the skid plate.
  4. Remove nuts holding support cushion to transmission support bracket.
  5. Remove the support cushion (2). See Figure.
  6. Remove bolts holding transmission support bracket to transmission.
  7. Remove the transmission support bracket.
