Flex Plate

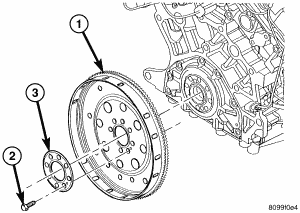

Fig 1: Flex Plate
GC0064407Courtesy of CHRYSLER LLC
1 - FLEX PLATE
2 - BOLT (QTY. 8)
3 - BACKING PLATE
  1. Remove the transmission.
  2. Remove flex plate attaching bolts.
  3. Remove the flex plate (1).
