Flex Plate

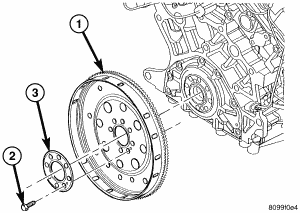

Fig 1: Flex Plate
GC0064408Courtesy of CHRYSLER LLC
1 - FLEX PLATE
2 - BOLT (QTY. 8)
3 - BACKING PLATE
  1. Position flex plate (1) with backing plate on the crankshaft.
  2. Apply Mopar® Lock & Seal Adhesive to the flex plate bolts.
  3. Install flex plate bolts. Tighten bolts to 95 N.m (70 ft. lbs.).
  4. Install the transmission.
