Structural Cover

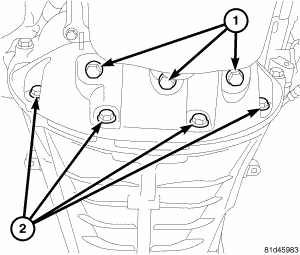

Fig 1: 3.8L Structural Cover
GC0064404Courtesy of CHRYSLER LLC
  1. Raise vehicle on hoist.
  2. Remove the bolts retaining structural cover to transmission (1,2).
  3. Remove the bolts retaining structural cover to engine.
  4. Remove the structural cover.
