Disconnecting Stabilizer Bar

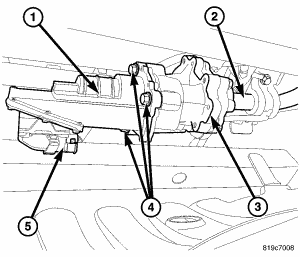

Fig 1: Identifying Actuator Components

Courtesy of CHRYSLER LLC

WARNING: The disconnecting stabilizer bar unit (1) is not serviced separately from the bar (2). Do not disassemble this unit from the stabilizer bar.

NOTE: The stabilizer links, stabilizer bar retainers/ bushings and the stabilizer bar are serviceable. The new bar consists of the disconnecting unit and electronic actuator (1) attached as an assembly to the bar.

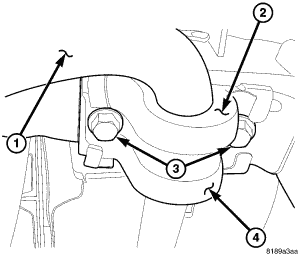

Fig 2: Identifying Stabilizer Bar Bracket Components

Courtesy of CHRYSLER LLC

Position the stabilizer bar (1) on the frame rail and install the retainers (4) with bushings (2) and bolts (3). Ensure the bar is centered with equal spacing on both sides.
Tighten the retainer bolts (3) to 61 N.m (45 ft. lbs.).

Fig 3: Identifying Actuator Components
Courtesy of CHRYSLER LLC

NOTE: The seal must be clean and intact in the electrical connector (3) when reconnecting to the actuator (1).
Reconnect the electronic actuator electrical connector (3) for the disconnecting stabilizer bar.

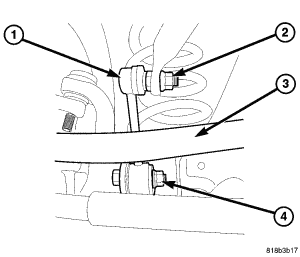

Fig 4: Identifying Stabilizer Link (Right) Components
Courtesy of CHRYSLER LLC

NOTE: Stabilizer bar link to axle bolt should be tightened with vehicle sitting on its tires
Install links (1) and nuts (2) to the stabilizer bar. Hold the link shaft with a wrench and tighten the nuts (2) to 102 N.m (75 ft. lbs.).
Remove the supports and lower the vehicle.
Using a scan tool program the new stabilizer bar to the vehicle.
