Axle Bushing

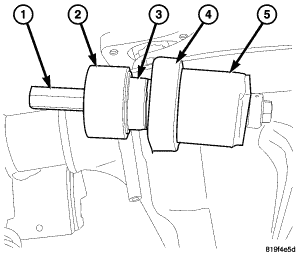

Fig 1: Identifying Axle Bushing Components
GC0063433Courtesy of CHRYSLER LLC
  1. Place special tool 9948-3 Nut (1), 9948-4 Driver (2), 9948-1 Receiver (5) and the press the bushing (3) in the axle housing (4).
  2. Remove tools and install the upper suspension arm. See REMOVAL .
