Section 1 (Clutch): Cylinder-Master: Installation: Installation

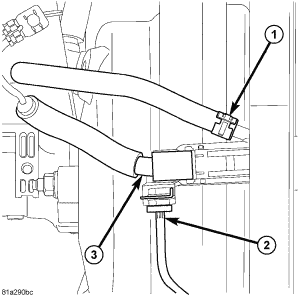

Fig 1: Identifying Clutch Master Cylinder Assembly Components

Courtesy of CHRYSLER LLC

1. Install clutch master cylinder through brake booster mounting plate and turn counter clockwise a quarter turn.
2. Install hose (1) to clutch master cylinder from brake master cylinder reservoir.
3. Install hydraulic line to the bottom of clutch master cylinder.
   NOTE: Verify O-ring is on hydraulic line.
4. Connect wiring harness (3) to pedal position switch.
5. Install actuator rod on clutch pedal pin.
6. Bleed clutch hydraulic circuit.
