Removal - PDC B+ Terminal Module

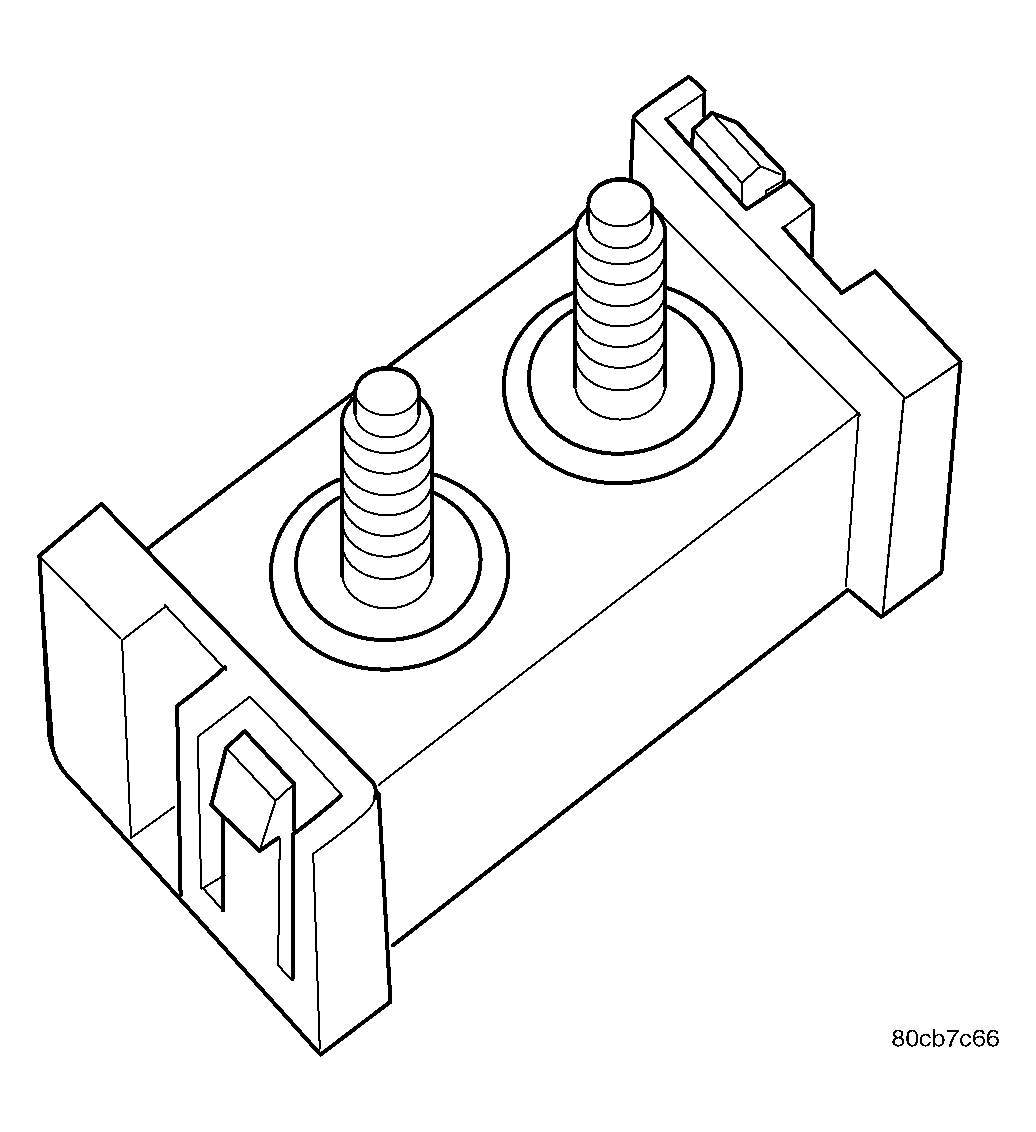

Fig 1: B+ Terminal Module
GC0026749Courtesy of CHRYSLER LLC
  1. Remove the PDC housing lower cover.
  2. From the top of the PDC housing, use a small screwdriver or a terminal pick tool (Special Tool Kit 6680) to release the two latches that secure the B(+) terminal module in the PDC.
  3. Gently and evenly press the two B(+) terminal studs down through the bus bar in the PDC.
  4. From the bottom of the PDC housing, remove the B(+) terminal module from the PDC.
