Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

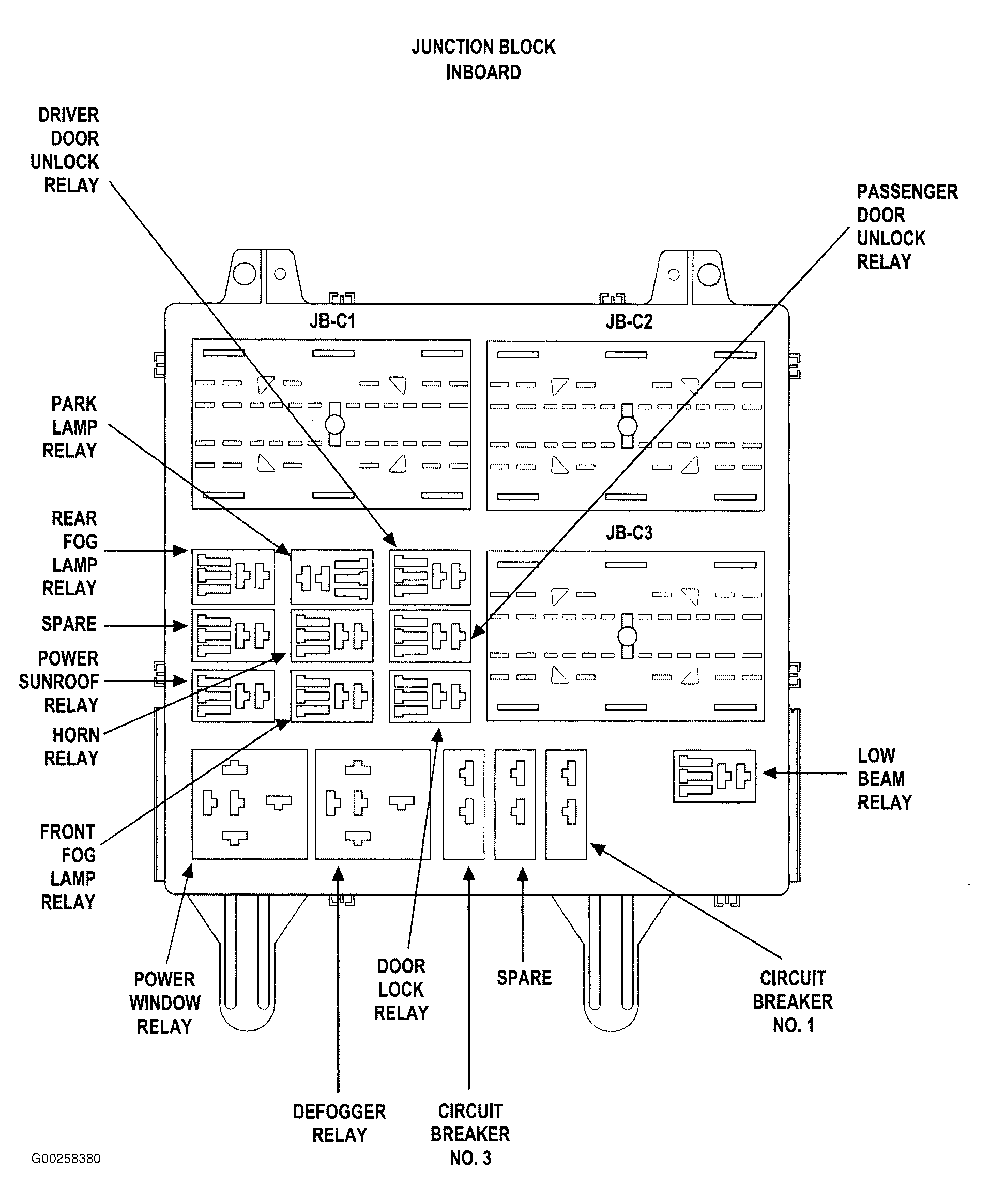

Circuit Breaker No. 1 Junction block. See Figure.
Circuit Breaker No. 3 Junction block. See Figure.
Junction Block Left side of dash.
Power Distribution Center Left side of engine compartment. See Figure.
