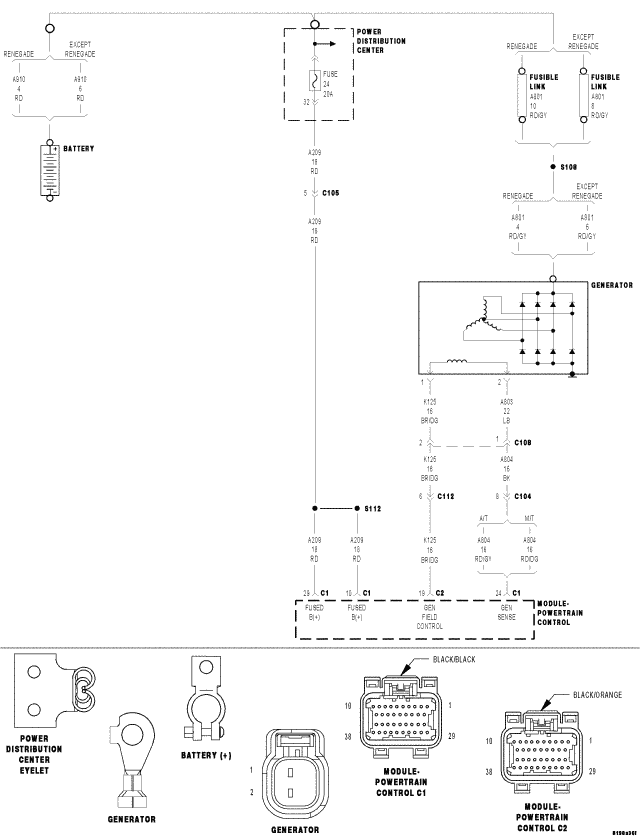

Home >> Jeep >> 2007 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P060D To P1404 - Gas >> P0622-Generator Field Control Circuit >> Circuit Schematic
