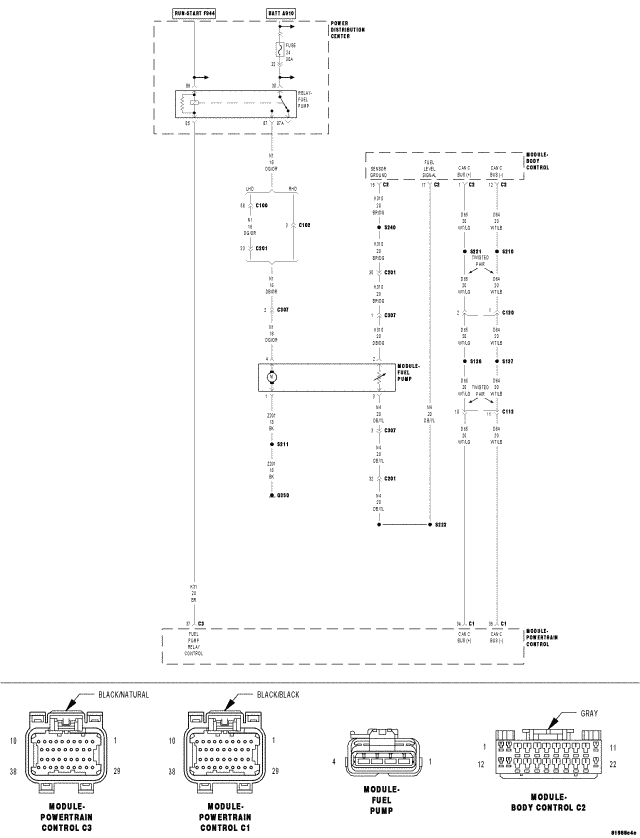

Home >> Jeep >> 2007 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0325 To P0501 - Gas >> P0461-Fuel Level Sensor 1 Performance >> Circuit Schematic
