Fuel Injectors

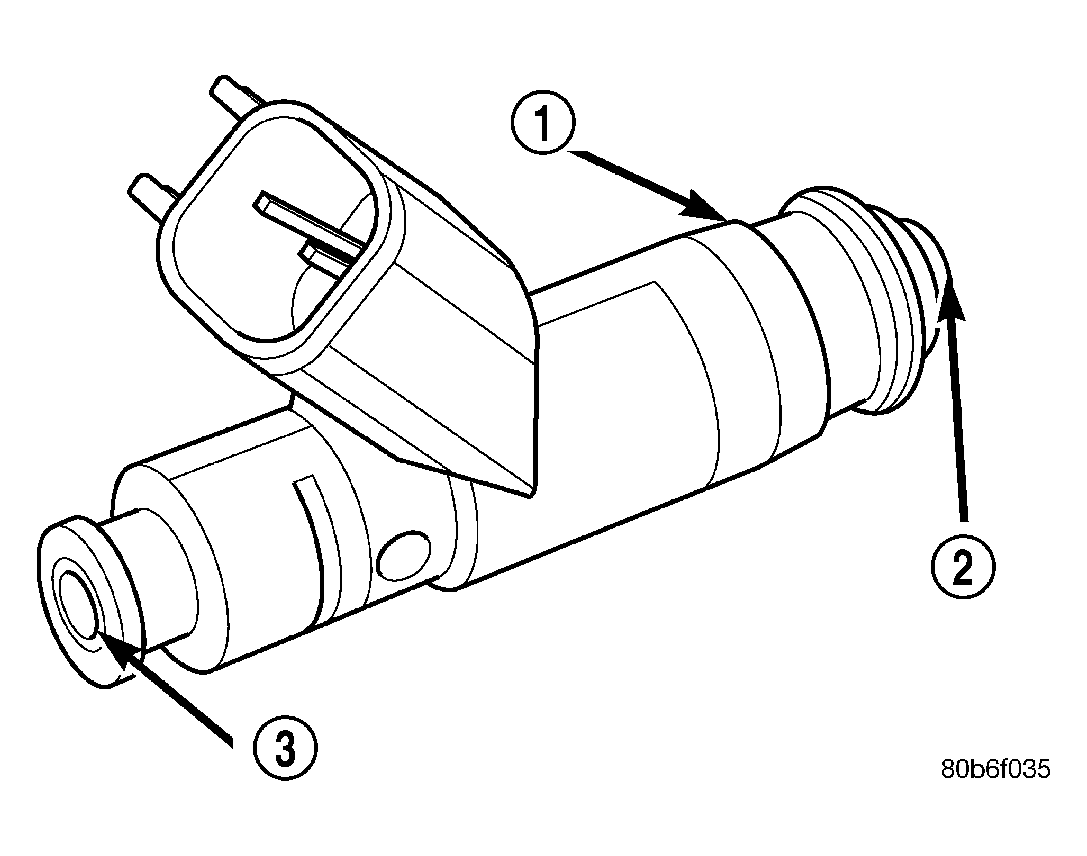

Fig 1: Fuel Injector - Typical

Courtesy of CHRYSLER LLC

1 - INJECTOR BODY

2 - FUEL OUTLET NOZZLE

3 - FUEL INLET NOZZLE

An individual fuel injector (1) is used for each individual cylinder. See Fig 1.
