Boost Pressure/Intake Air Temperature Sensor

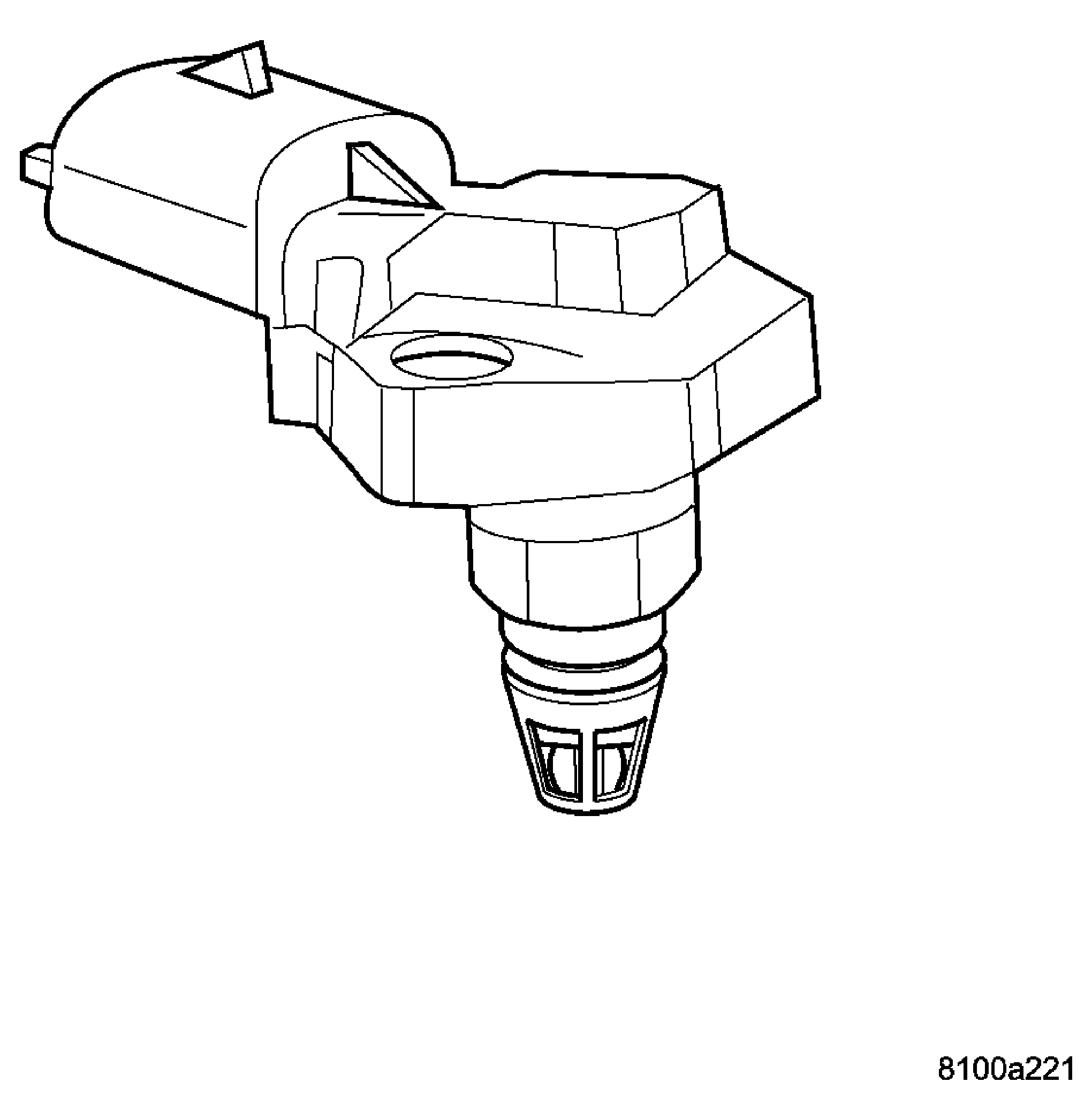

Fig 1: Boost Pressure Sensor / Intake Air Temperature Sensor

Courtesy of CHRYSLER LLC

The boost pressure/intake air temperature sensor is mounted to the top of the intake manifold. The sensor allows the ECM to monitor air pressure within the intake manifold. This sensor is also used to monitor the intake air temperature. See Figure.
