Boost Pressure Sensor

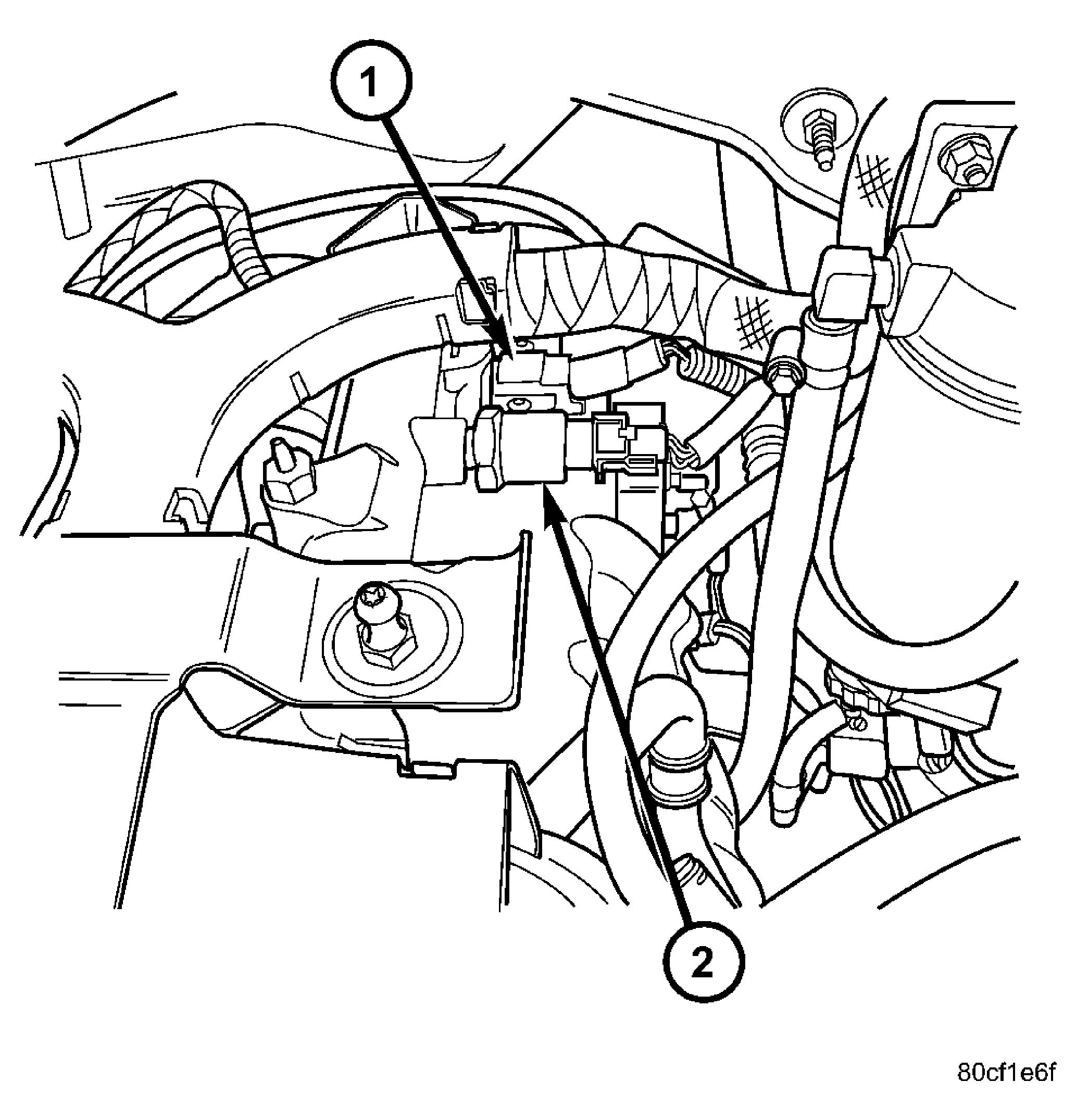

Fig 1: Sensor Locations
GC0025703Courtesy of CHRYSLER LLC
1 - BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR
2 - FUEL RAIL PRESSURE SENSOR
  1. Disconnect negative battery cable.
  2. Remove engine cover and bracket assembly. Refer to REMOVAL .
  3. Disconnect sensor electrical connector. See Fig 1.
  4. Remove retaining bolts and remove sensor (1) from cylinder head cover/intake manifold. See Fig 1.
