Front Wiper Module
Courtesy of CHRYSLER LLC

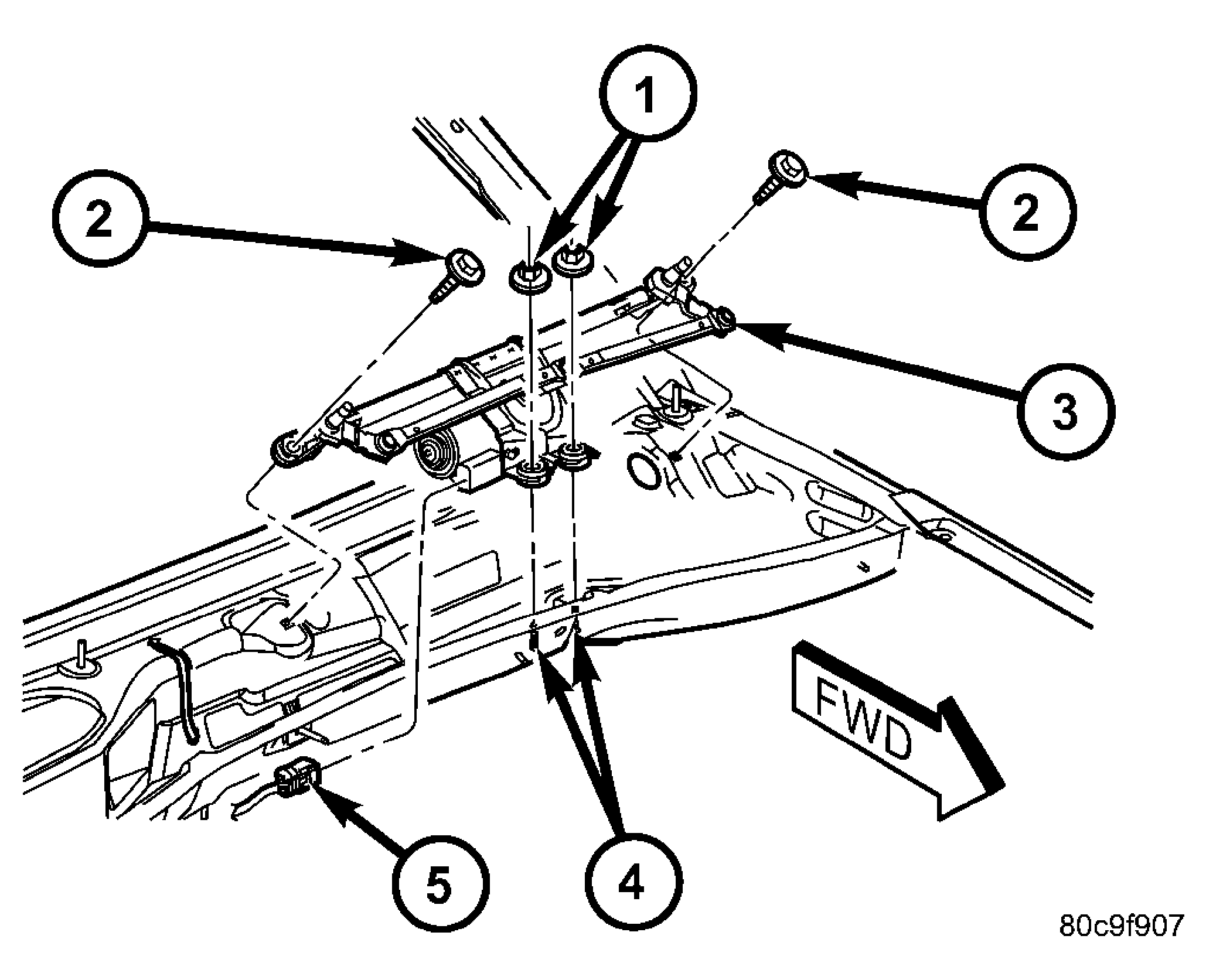

- Position the front wiper module (3) to the cowl plenum as a unit.
- Lower the front wiper module lower mounting insulators over the two weld studs (4) on the bottom of the cowl plenum panel.
- Install the two screws (2) that secure the front wiper module to the top of the cowl plenum panel at the pivot brackets. Tighten the screw on the driver side, followed by the screw on the passenger side. Tighten the screws to 8 N.m (72 in. lbs.).
- Install and tighten the two nuts (1) that secure the front wiper module to the two weld studs on the bottom of the cowl plenum panel. Tighten the nuts to 8 N.m (72 in. lbs.).
- Reconnect the headlamp and dash wire harness connector (5) for the front wiper motor to the motor pigtail wire connector.
- Reinstall the cowl plenum cover/grille panel over the cowl plenum. Refer to INSTALLATION
.
- Close and latch the hood.
- Reinstall both front wiper arms onto the wiper pivots. See INSTALLATION .
- Reconnect the battery negative cable.
