Speed Control Switch

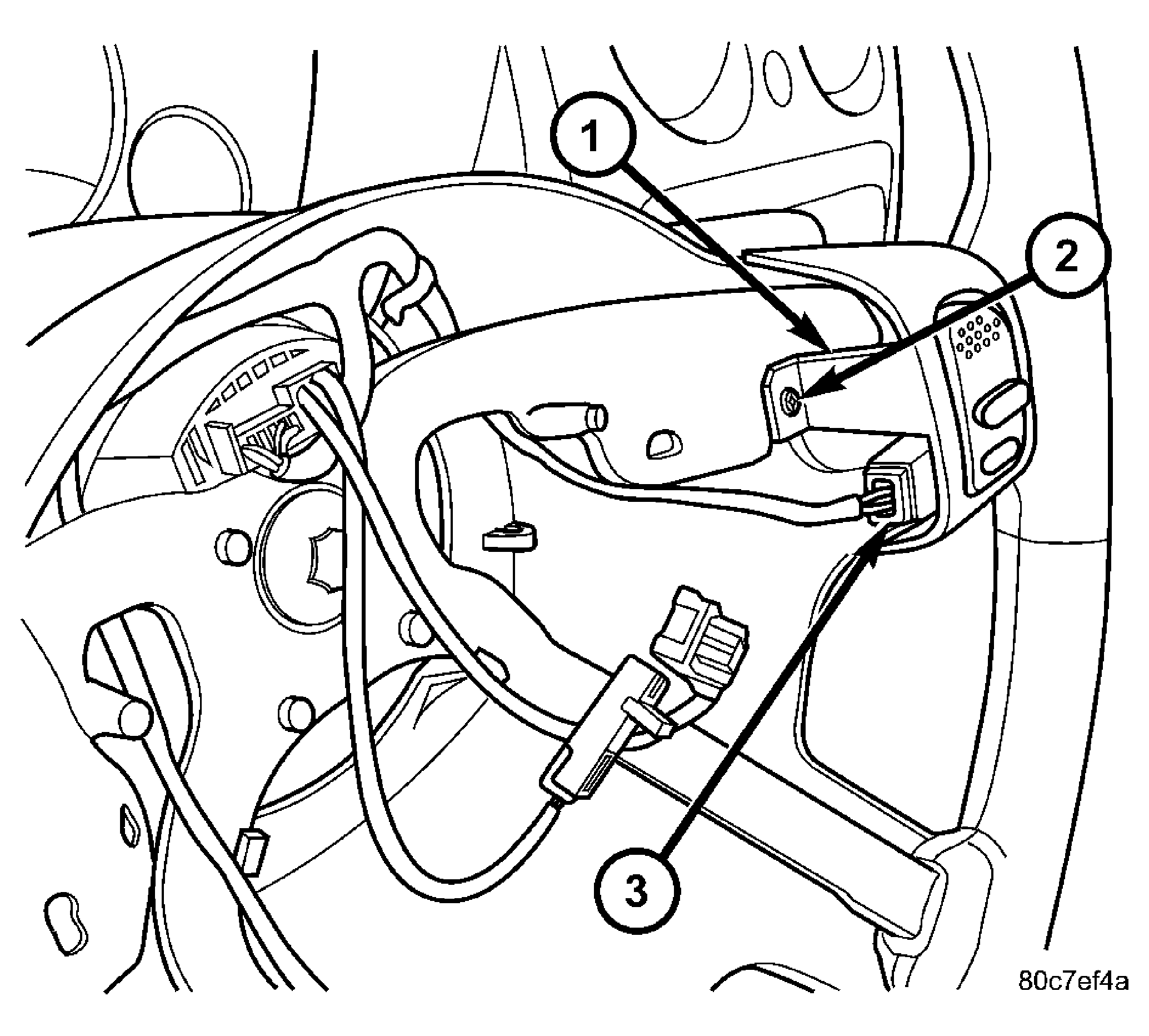

Fig 1: Locating Speed Control Switch

GC0026627

Courtesy of CHRYSLER LLC

1 - SWITCH

2 - SCREW

3 - ELECTRICAL CONNECTOR

Position switch to steering wheel.
Install switch mounting screw (2) and tighten to 1.5 N.m (14 in. lbs.).
Plug electrical connector into switch.
Install airbag module. Refer to RESTRAINTS - SERVICE INFORMATION .
Connect negative battery cable to battery.
