Speed Control Servo

Position servo to mounting bracket.

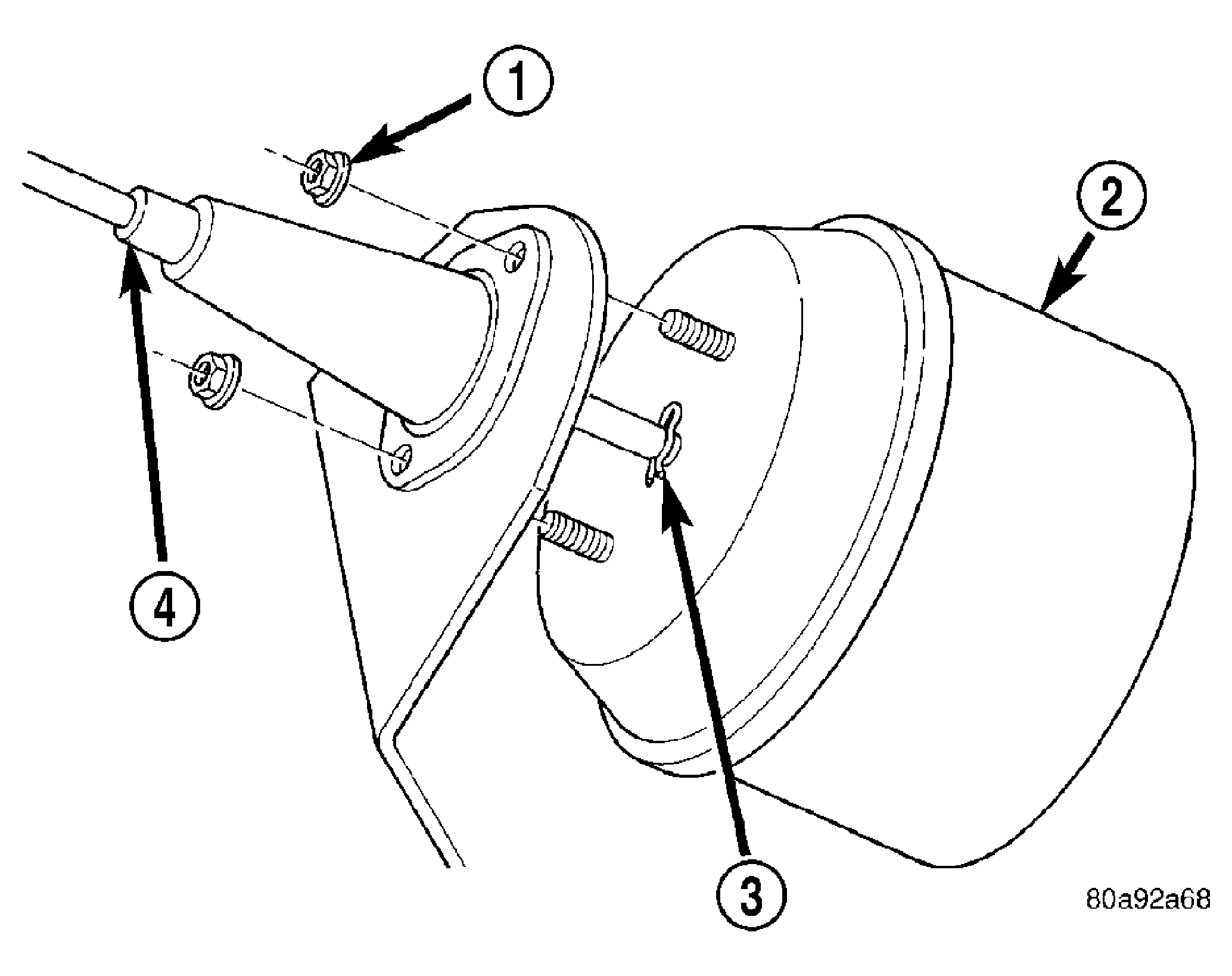

Fig 1: Removing/Installing Servo Cable Clip - Typical

Courtesy of CHRYSLER LLC

1 - SERVO MOUNTING NUTS (2)

2 - SERVO

3 - CABLE RETAINING CLIP

4 - SERVO CABLE AND SLEEVE

Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3).
Insert servo mounting studs through holes in servo mounting bracket.

Install servo-to-mounting bracket nuts (1) and tighten. Refer to TORQUE SPECIFICATIONS .

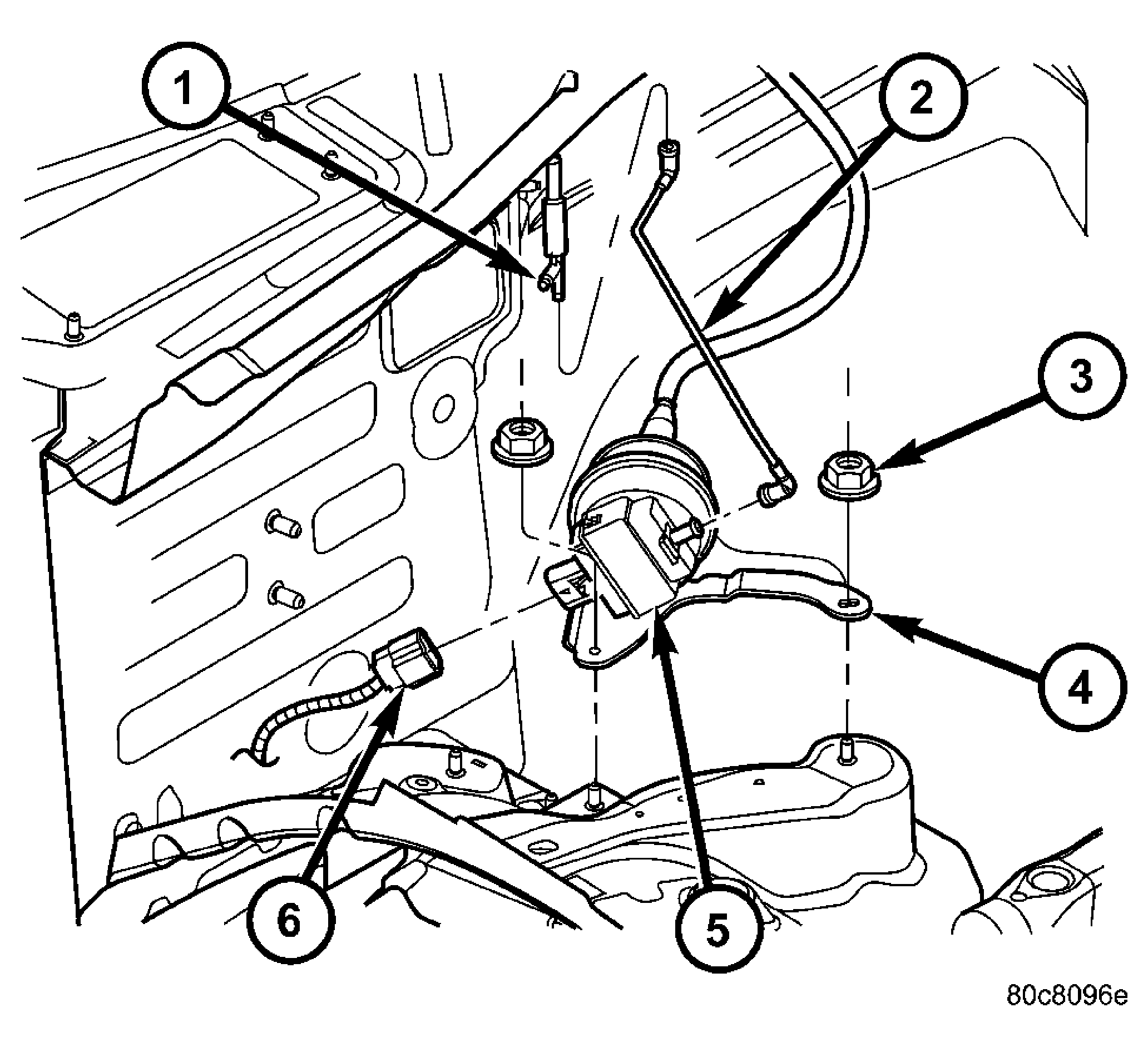

Fig 2: Speed Control Servo & Components

Courtesy of CHRYSLER LLC

1 - "T" FITTING

2 - VACUUM LINE

3 - SERVO BRACKET MOUNTING NUTS

4 - SERVO MOUNTING BRACKET

5 - SERVO

6 - SERVO ELECTRICAL CONNECTOR

Install servo mounting bracket-to-body nuts (3) and tighten. Refer to TORQUE SPECIFICATIONS .
Connect vacuum line (2) at servo.
Connect electrical connector (6) at servo.
Connect servo cable to throttle body. Refer to CABLE - SPEED CONTROL for Removal/Installation instructions.
Install coolant bottle.
Connect negative battery cable to battery.
Before starting engine, operate accelerator pedal to check for any binding.
