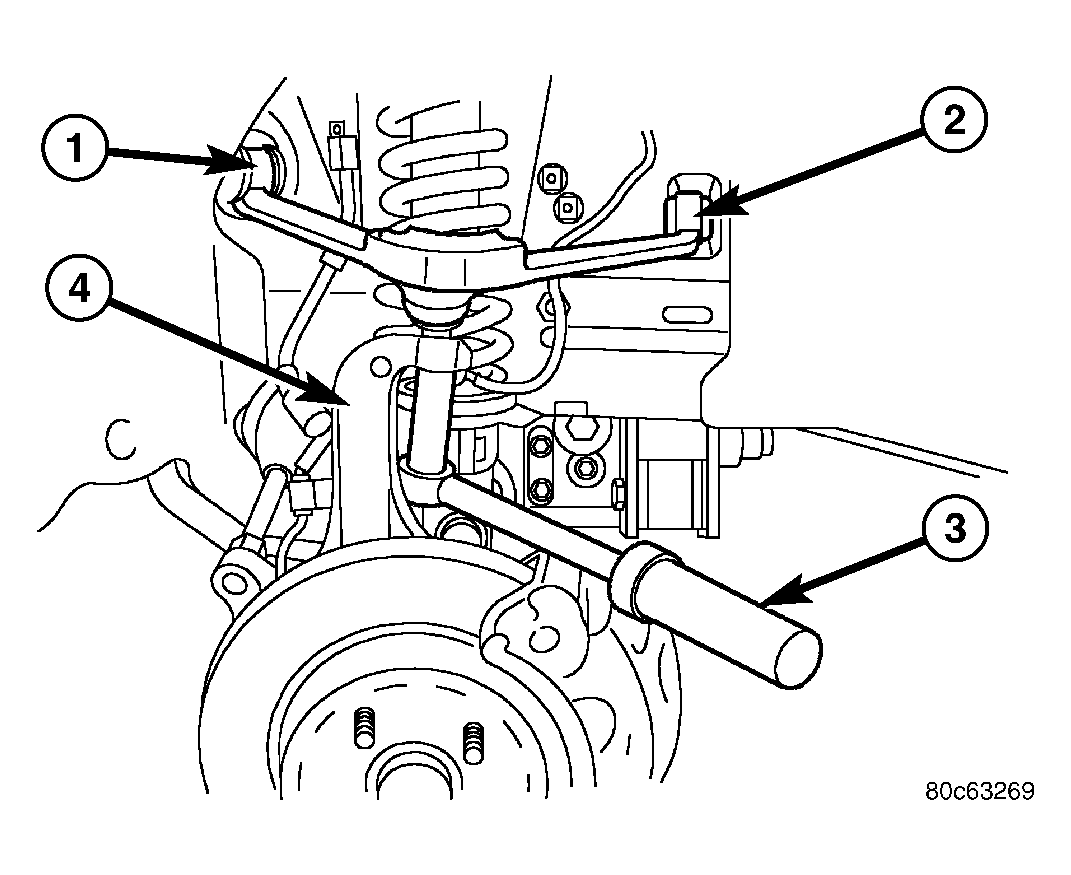

Upper Control Arm - Left
Courtesy of CHRYSLER LLC
| 1 - FRONT PIVOT BOLT |
| 2 - REAR PIVOT BOLT |
| 3 - RATCHET TOOL |
| 4 - STEERING KNUCKLE |
- Install the upper control arm to the vehicle.
- Install the upper control arm front bolt (1). See Fig 1. Tighten the bolt to 122 N.m (90 ft. lbs.).
- Install the upper control arm rear bolt (2). See Fig 1. Tighten the bolt to 122 N.m (90 ft. lbs.).
- Reconnect the battery temperature sensor to the battery tray.
- Install the battery tray. Refer to INSTALLATION
.
- Install the battery. Refer to INSTALLATION
.
- Reclip and mount the power center.
Courtesy of CHRYSLER LLC
| 1 - FRONT PIVOT BOLT |
| 2 - REAR PIVOT BOLT |
| 3 - RATCHET TOOL |
| 4 - STEERING KNUCKLE |
- Install the upper ball joint nut. See Fig 1. Tighten the nut to 81 N.m (60 ft. lbs.).
- Install the left side tire and wheel assembly. Refer to STANDARD PROCEDURE
.
- Lower the vehicle.
- Perform a wheel alignment. See STANDARD PROCEDURE .
