Home >> Jeep >> 2007 >> Liberty Limited, 4WD, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2123 To P2610 - Gas >> P2273-O2 Sensor 2/2 Signal Stuck Rich >> Circuit Schematic

Circuit Schematic

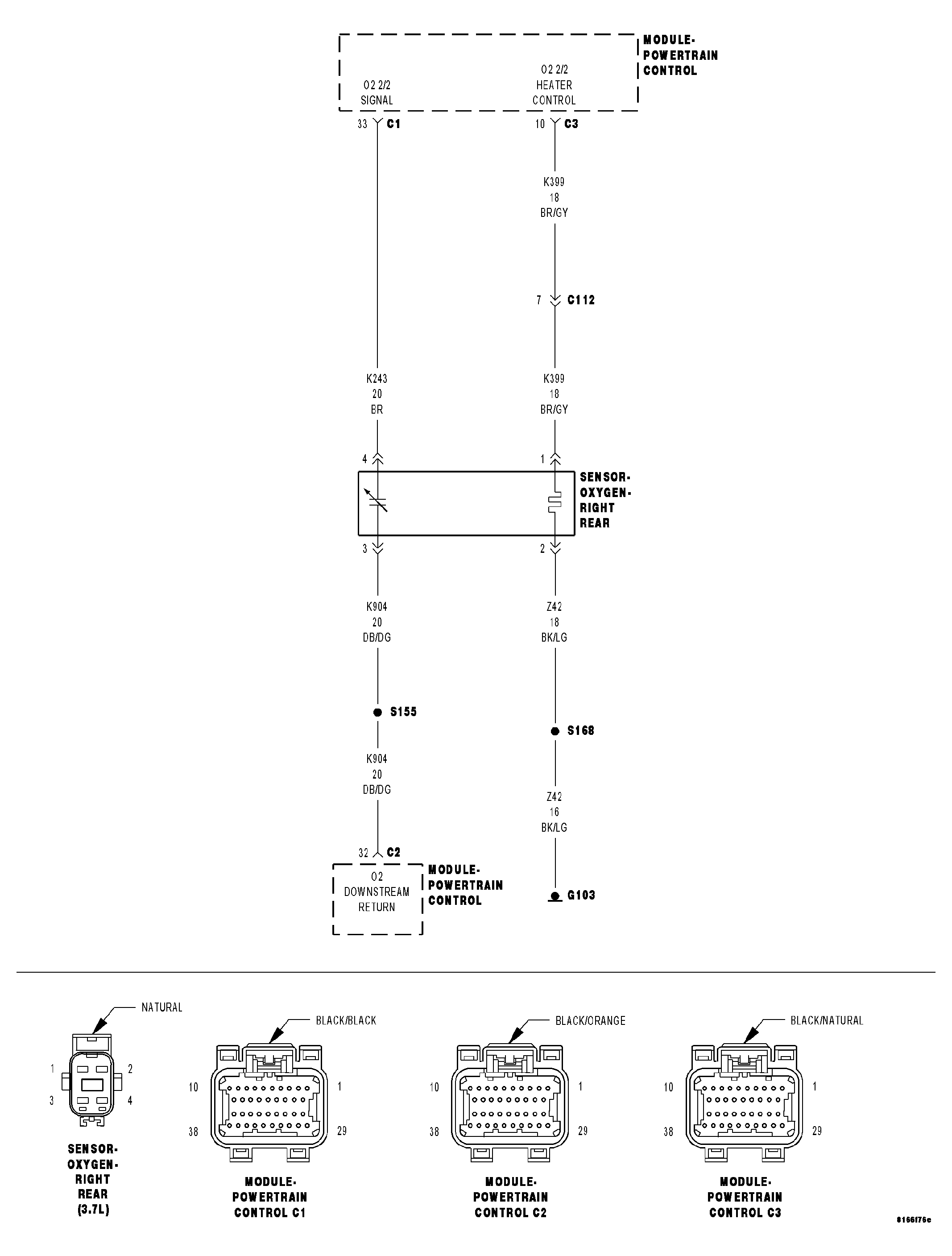

Fig 1: Right Rear O2 Sensor Circuit Schematic

GC0046236

Courtesy of CHRYSLER LLC
