Generator - Diesel

CAUTION: Disconnect negative cable from battery before removing battery output wire from generator. Failure to do so can result in injury.
CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.
CAUTION: When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump will be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or refer to BELT-ACCESSORY DRIVE .
  1. Disconnect and isolate negative battery cable.
  2. Remove engine oil fill cap and engine oil dipstick.
  3. Remove plastic decorative engine cover. Cover snaps onto engine.
  4. Remove generator drive belt. Refer to COOLING for procedure.
  5. Remove protective plastic cover from B+ stud at top of generator.
  6. Remove nut securing battery output cable to B+ terminal at top of generator.
  7. Unplug field terminal connector at rear of generator.

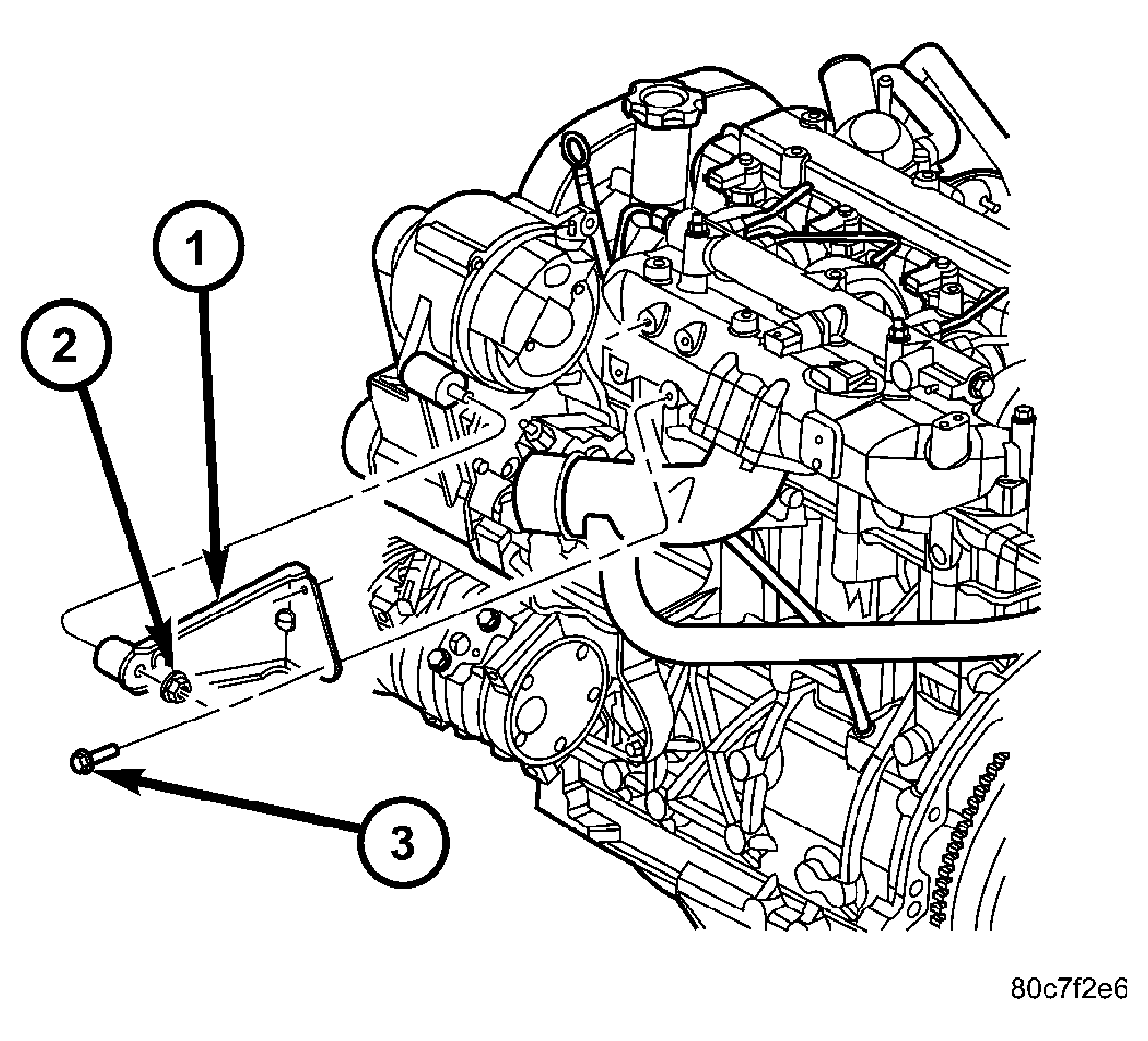

    Fig 1: View Of Generator Support Bracket - Diesel
    GC0046813Courtesy of CHRYSLER LLC
    1 - SUPPORT BRACKET
    2 - SUPPORT BRACKET NUT
    3 - SUPPORT BRACKET BOLTS
  8. Loosen support bracket bolts (3) and nut (2). See Fig 1.

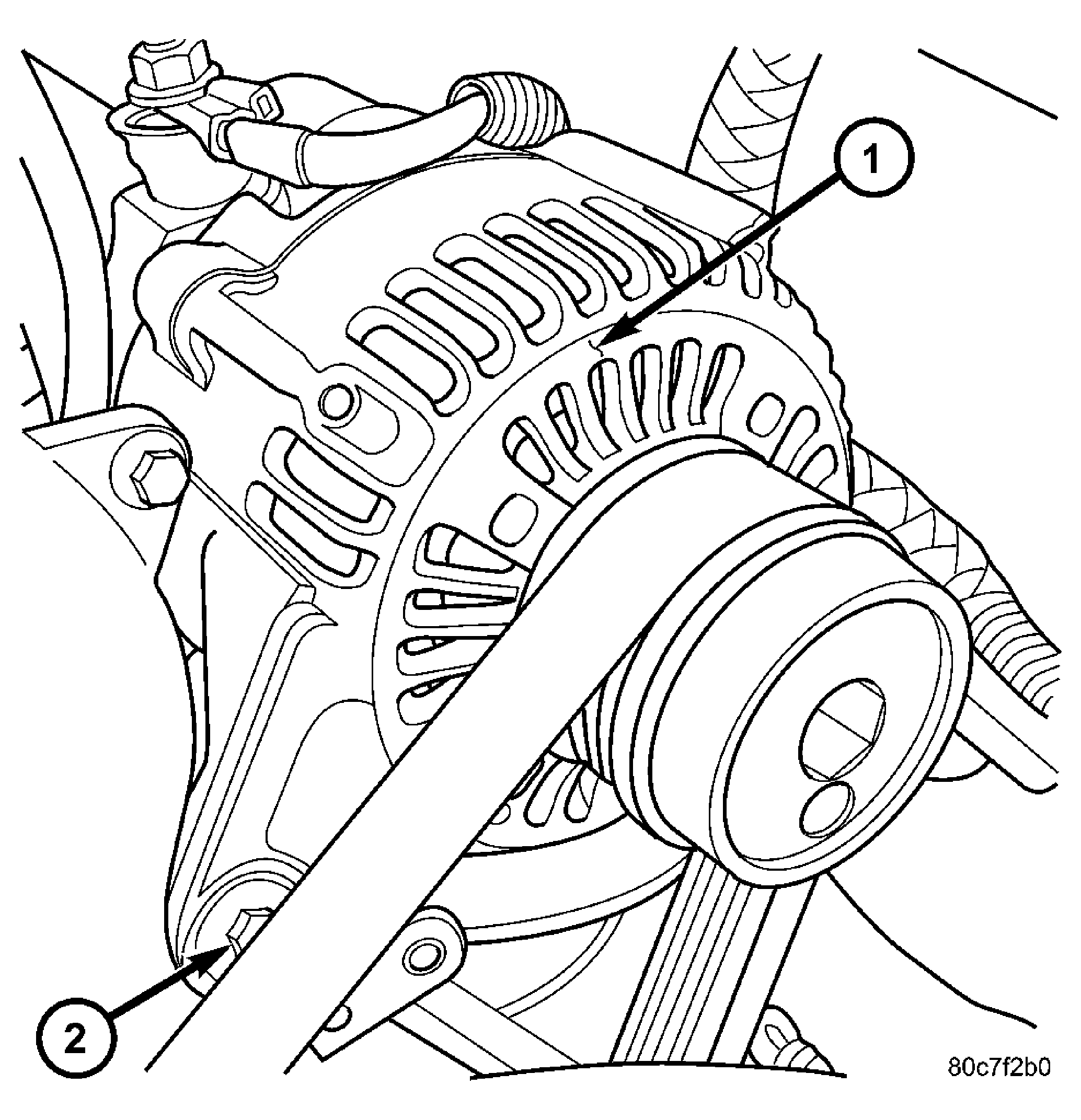

    Fig 2: View Of Generator - Diesel
    GC0046812Courtesy of CHRYSLER LLC
    1 - GENERATOR
    2 - MOUNTING BOLTS
  9. Remove two generator mounting bolts (2). See Fig 2.
  10. Remove generator from vehicle.
