Installation - PDC B(+) Terminal Module

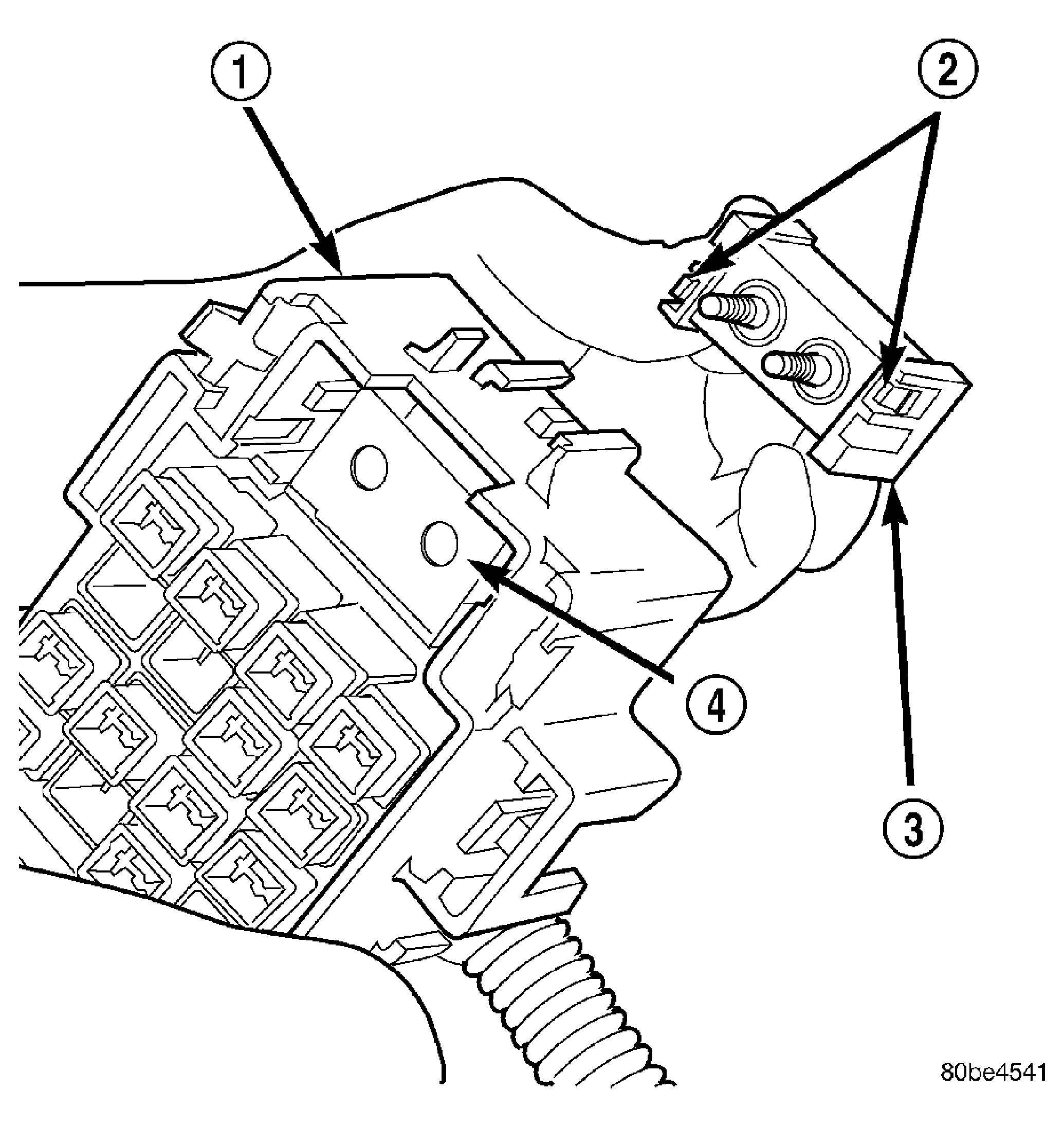

Fig 1: Removing/Installing PDC B(+) Terminal Module

Courtesy of CHRYSLER LLC

From the bottom of the PDC housing (1), align and insert the B(+) terminal module (3) into the PDC.
From the bottom of the PDC housing (1), align and insert the two studs of the PDC B(+) terminal module (3) through the bus bar (4) in the PDC.
From the bottom of the PDC housing (1), press the B(+) terminal module (3) gently and evenly into the PDC until both of the latches (2) are fully engaged.
Install the PDC housing lower cover.
