SENSOR, Ambient Temperature: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

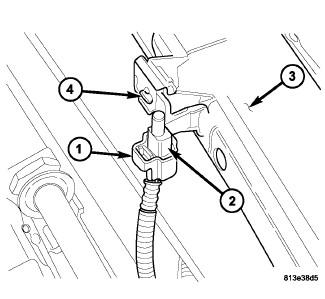

Fig 1: Sensor-Ambient Temperature
GC0119480Courtesy of CHRYSLER LLC
  1. Install the ambient air temperature sensor (2) onto the top of the front bumper beam (3). Make sure that the retaining tabs (4) are fully engaged.
  2. Connect the wire harness connector (1) to the ambient air temperature sensor.
  3. Install the grille. Refer to Body/Exterior/GRILLE - Installation .
  4. Reconnect the negative battery cable.
