Stabilizer Link: Installation: SRT8

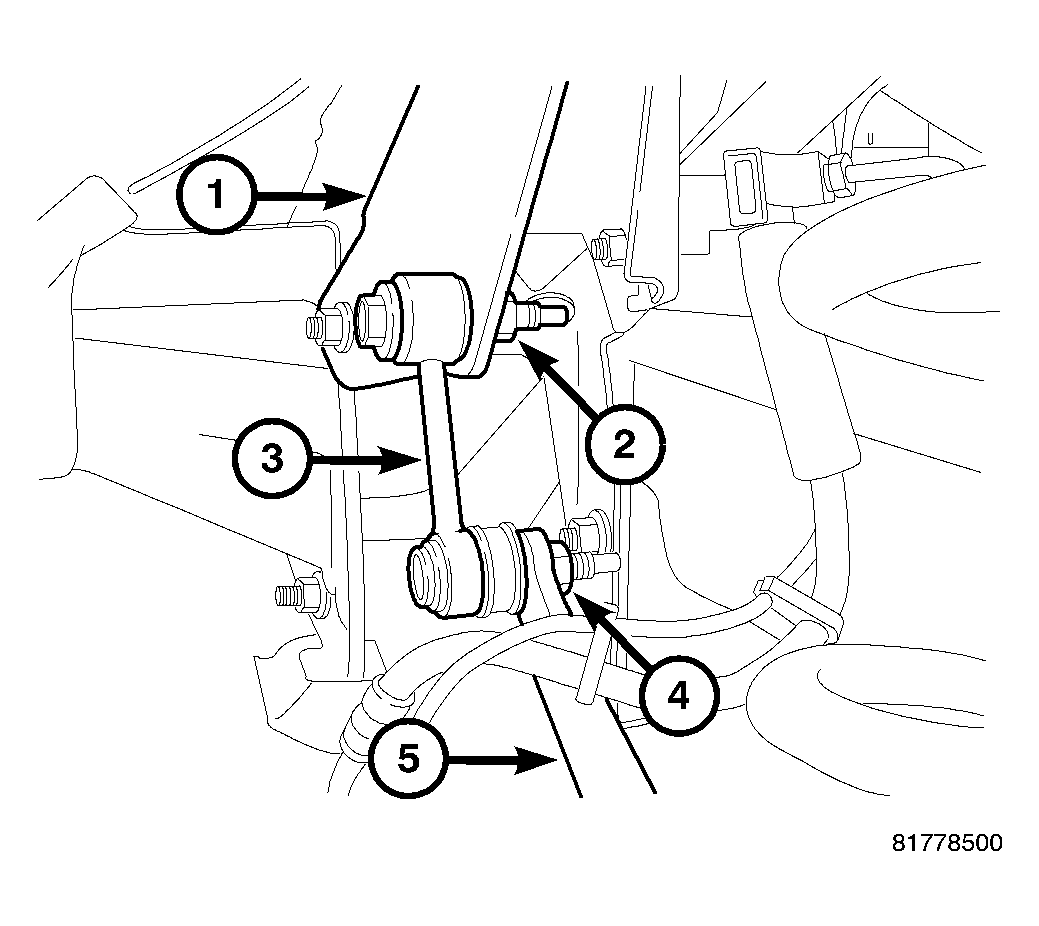

Fig 1: STABILIZER LINK
GC0047131Courtesy of CHRYSLER LLC
  1. Install the upper bolt/nut (2) for the stabilizer link (3) to the bracket (1) and tighten to 102 N.m (75 ft. lbs.).
  2. Install the stabilizer link (3) to the stabilizer bar (5).
  3. Install the nut (4) and tighten to 88 N.m (65 ft. lbs.).
  4. Install the tire and wheel assembly.
  5. Lower the vehicle.
