Front Suspension

Fig 1: Remover C-4150A
GC0019115Courtesy of CHRYSLER LLC

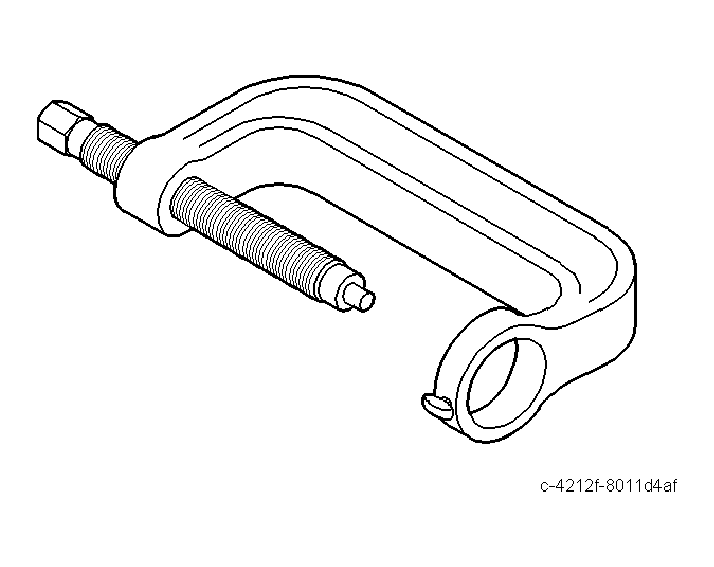

Fig 2: Ball Joint Press - C-4212F
GC0026754Courtesy of CHRYSLER LLC

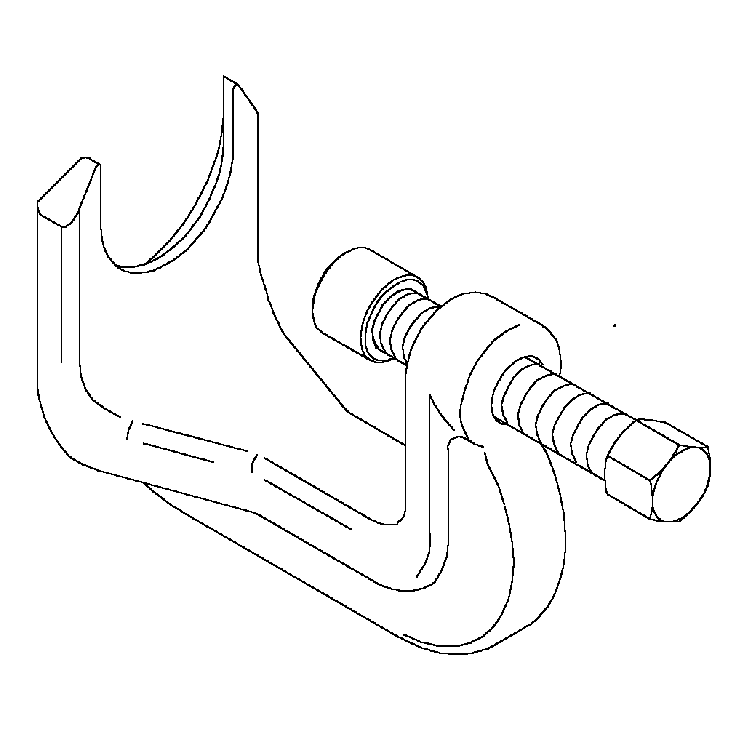

Fig 3: Puller - 8677
GC0026756Courtesy of CHRYSLER LLC

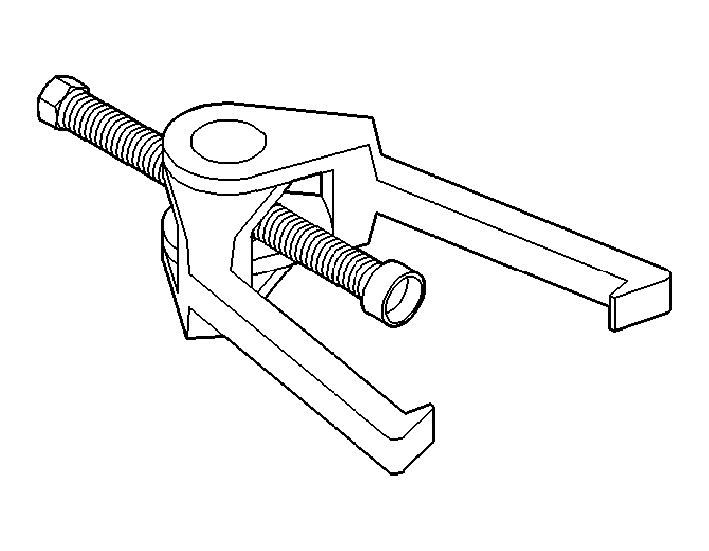

Fig 4: Puller C-3894-A
GC0026755Courtesy of CHRYSLER LLC

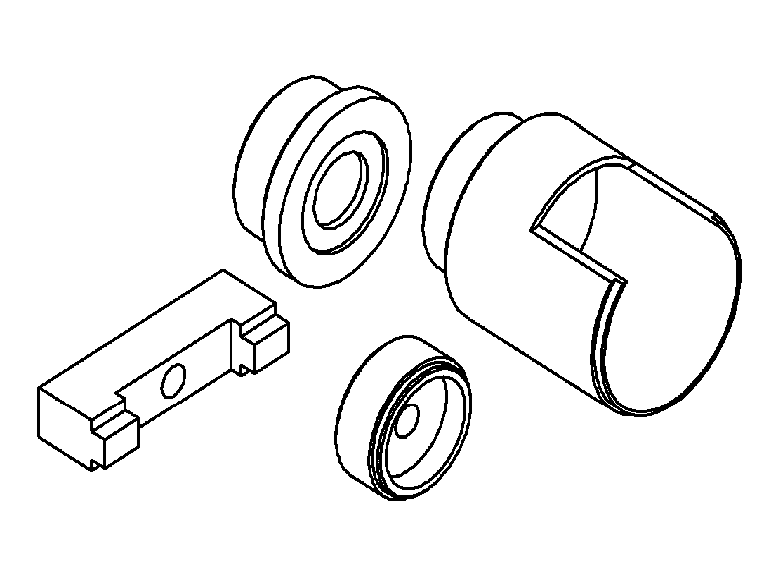

Fig 5: Clevis Bushing - 9653
GC0026757Courtesy of CHRYSLER LLC

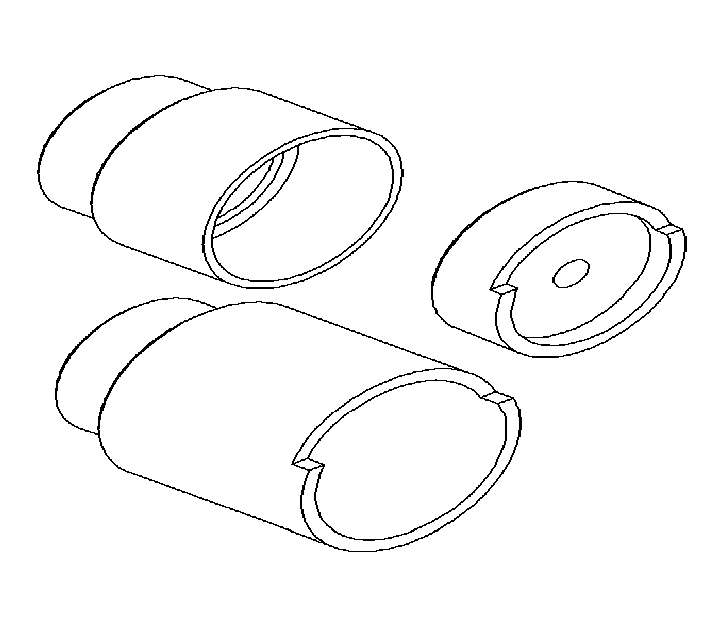

Fig 6: Ball Joint - 9654
GC0016884Courtesy of CHRYSLER LLC

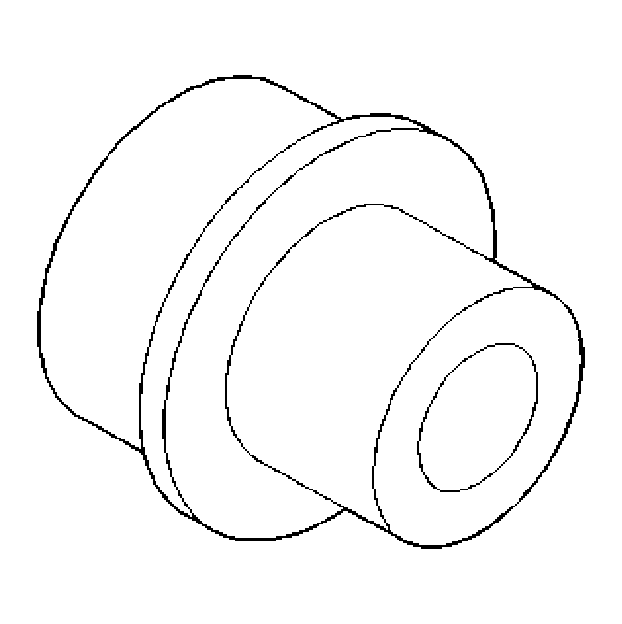

Fig 7: Ball Joint - C-4212-3
GC0026758Courtesy of CHRYSLER LLC
