Right Front Fog Lamp Connector End View

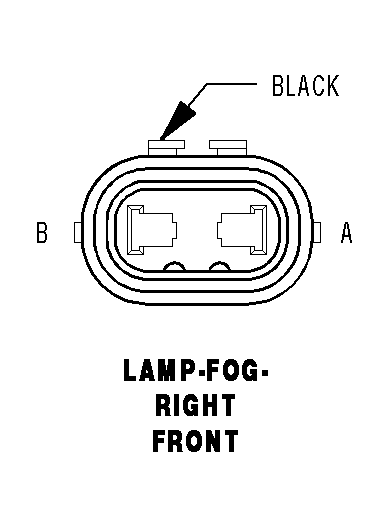

LAMP-FOG-RIGHT FRONT - BLACK 2 WAY

GCWH680175Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
A L89 18WT/OR FRONT FOG LAMP RELAY OUTPUT
B Z910 20BK (DIESEL) GROUND
B Z910 18BK (GAS) GROUND
