Oil Pressure Sensor (5.7L/SRT8) Connector End View

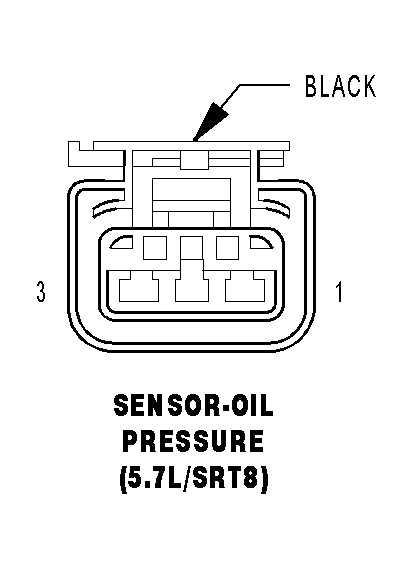

SENSOR-OIL PRESSURE (5.7L/SRT8) - BLACK 3 WAY

GCWH680359Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 F855 20PK/YL 5 VOLT SUPPLY
2 G6 20VT/GY ENGINE OIL PRESSURE SIGNAL
3 K900 20DB/DG SENSOR GROUND
