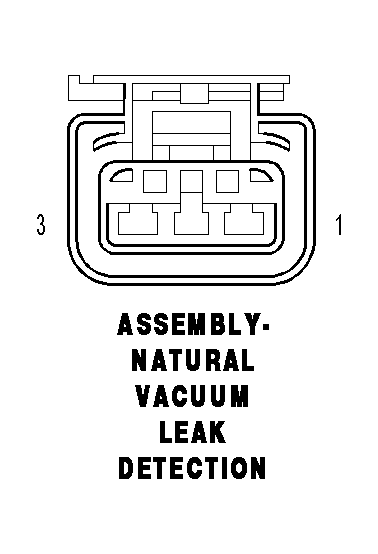

Natural Vacuum Leak Detection Assembly Connector End View
ASSEMBLY-NATURAL VACUUM LEAK DETECTION - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z912 18BK |
GROUND |
| 2 |
K107 20BR/LB (EXCEPT EXPORT/EXPORT PARK ASSIST) |
NVLD SWITCH SIGNAL |
| 2 |
K107 20VT/WT (EXPORT EXCEPT PARK ASSIST) |
NVLD SWITCH SIGNAL |
| 3 |
K106 20VT/LB |
NVLD SOL CONTROL |
