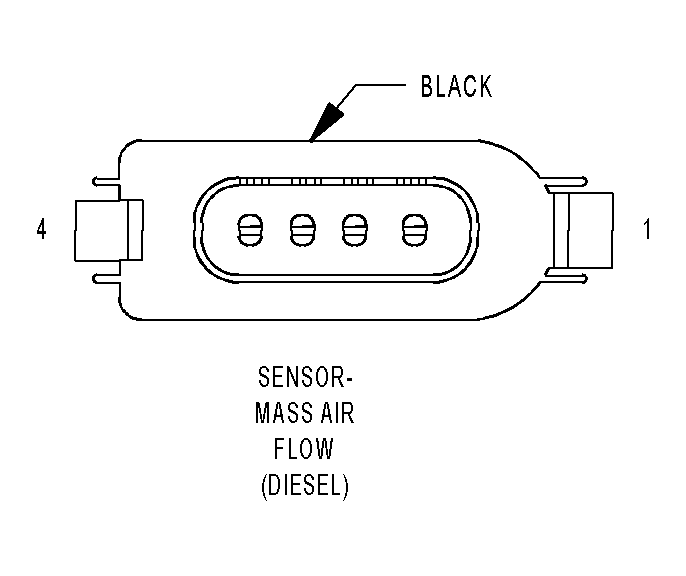

Mass Air Flow Sensor (Diesel) Connector End View
SENSOR-MASS AIR FLOW (DIESEL) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F944 18PK/BK |
IGNITION SWITCH OUTPUT (RUN-START) |
| 2 |
K957 18BR |
MASS AIR FLOW SENSOR GROUND |
| 3 |
K362 20DG/YL |
MASS AIR FLOW SENSOR 5 VOLT SUPPLY |
| 4 |
K157 20BL/YL |
MASS AIR FLOW SENSOR SIGNAL |
