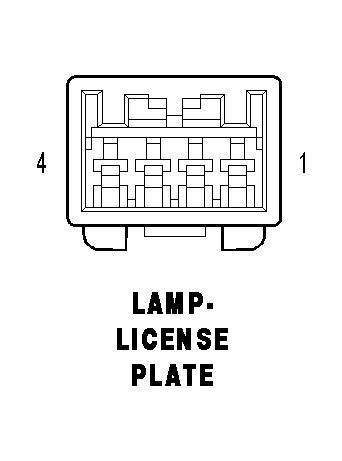

License Plate Lamp Connector End View

LAMP-LICENSE PLATE - 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	L777 20WT/VT	FUSED PARK LAMP RELAY OUTPUT
2	Z800 20BK	GROUND
3	Q80 20OR/VT	FLIP-UP GLASS SWITCH SENSE
4	-	-
