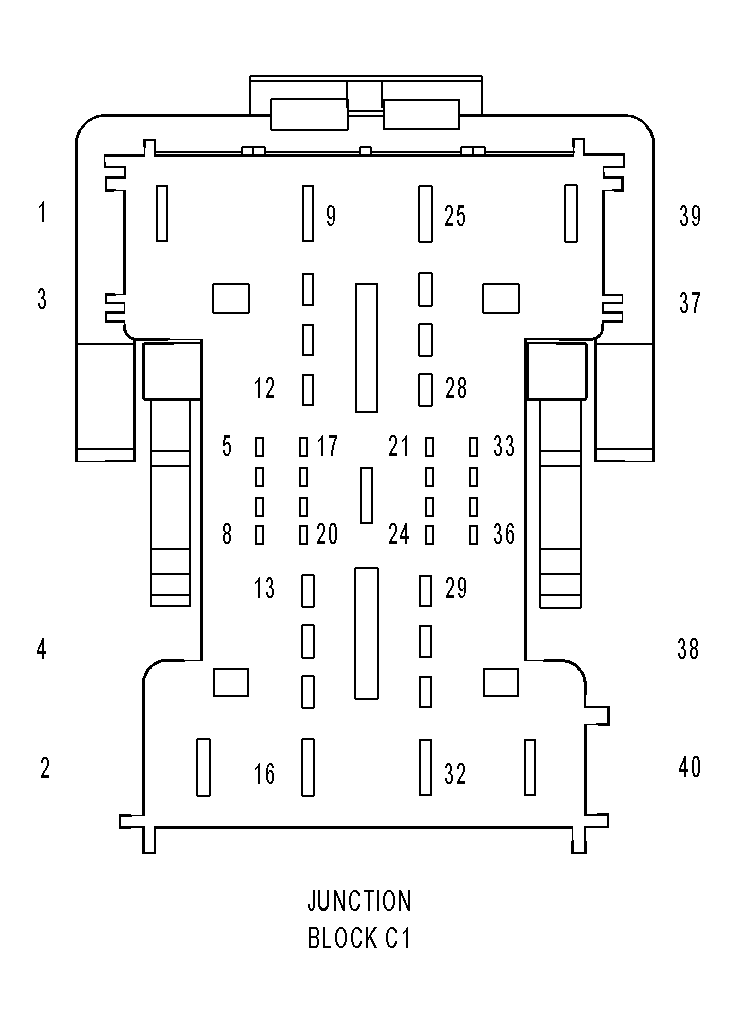

Junction Block Connector End View (C1)
JUNCTION BLOCK C1 - 40 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A901 12RD (DIESEL/SRT8) | FUSED B(+) |
| 1 | A901 12RD/TN (GAS EXCEPT SRT8) | FUSED B(+) |
| 2 | A925 14RD (DIESEL/SRT8) | FUSED B(+) |
| 2 | A925 14RD/LG (GAS EXCEPT SRT8) | FUSED B(+) |
| 3 | - | - |
| 4 | C105 20LB/LG | - |
| 5 | - | - |
| 6 | B45 18DG/OR (GAS ESP) | STOP LAMP INHIBIT RELAY CONTROL |
| 7 | - | - |
| 8 | - | - |
| 9 | A902 14RD (DIESEL/SRT8) | FUSED B(+) |
| 9 | A902 14RD/GY (GAS EXCEPT SRT8) | FUSED B(+) |
| 10 | A5 16RD/VT | FUSED B(+) |
| 11 | - | - |
| 12 | - | - |
| 13 | F946 20PK/DG (A/T) | TRANSMISSION CONTROL MODULE RELAY OUTPUT |
| 14 | Z387 16BK | GROUND |
| 15 | A611 14RD | FUSED B(+) |
| 16 | A930 14RD (DIESEL/SRT8) | POWER OUTLET RELAY OUTPUT |
| 16 | A930 14RD/YL (GAS EXCEPT SRT8) | POWER OUTLET RELAY OUTPUT |
| 17 | - | - |
| 18 | L950 20WT/LG (GAS EXCEPT SRT8) | STOP LAMP INHIBIT RELAY FEED |
| 19 | - | - |
| 20 | - | - |
| 21 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 22 | - | - |
| 23 | F921 20PK/DB | FUSED RUN RELAY OUTPUT |
| 24 | F924 20PK/YL | FUSED RUN RELAY OUTPUT |
| 25 | A905 12RD (DIESEL/SRT8) | FUSED B(+) |
| 25 | A905 12RD/WT (GAS EXCEPT SRT8) | FUSED B(+) |
| 26 | A118 16RD/OR | FUSED B(+) |
| 27 | F943 18PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 28 | A114 18GY/RD | FUSED B(+) |
| 29 | F923 14PK/YL | RUN RELAY OUTPUT |
| 30 | F944 18PK/TN (EXCEPT SRT8) | IGNITION SWITCH OUTPUT (RUN-START) |
| 30 | F944 18PK/LG (SRT8) | IGNITION SWITCH OUTPUT (RUN-START) |
| 31 | A906 12RD (DIESEL/SRT8) | FUSED B(+) |
| 31 | A906 12RD/OR (GAS EXCEPT SRT8) | FUSED B(+) |
| 32 | A908 12RD (DIESEL/SRT8) | FUSED B(+) |
| 32 | A908 12RD/VT (GAS EXCEPT SRT8) | FUSED B(+) |
| 33 | W12 20BR/OR | REAR WIPER RELAY CONTROL |
| 34 | - | - |
| 35 | F921 20PK/GY (EXCEPT 3.7L) | FUSED RUN RELAY OUTPUT |
| 36 | F942 20PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 37 | P305 20LG/LB | ACCESSORY DELAY RELAY CONTROL |
| 38 | - | - |
| 39 | A906 12RD (DIESEL/SRT8) | FUSED B(+) |
| 39 | A906 12RD/OR (GAS EXCEPT SRT8) | FUSED B(+) |
| 40 | A907 14RD | FUSED B(+) |
