Intake Air Temperature Sensor (SRT8) Connector End View

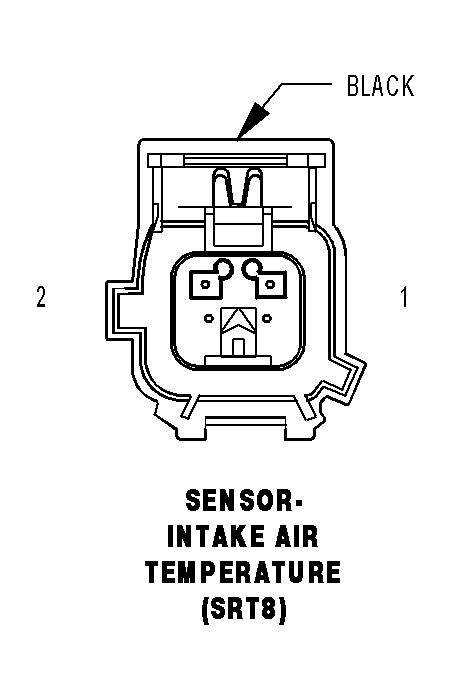

SENSOR-INTAKE AIR TEMPERATURE (SRT8) - BLACK 2 WAY

GCWH680462Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K21 20BR/WT IAT SIGNAL
2 K900 20DB/DG SENSOR GROUND
