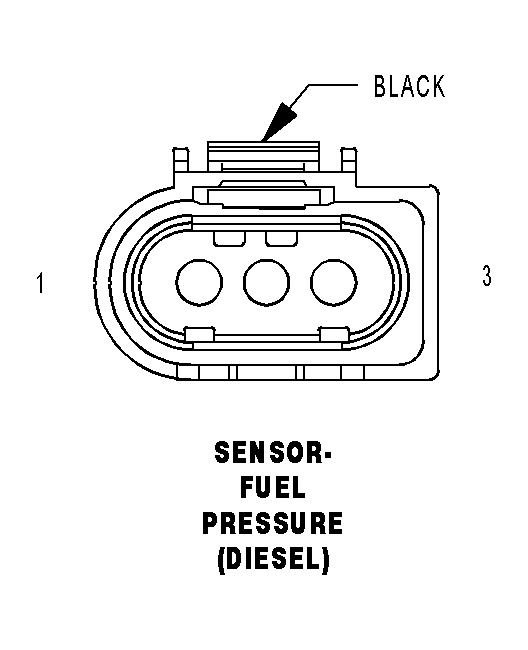

Fuel Pressure Sensor (Diesel) Connector End View
SENSOR-FUEL PRESSURE (DIESEL) - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K359 20GY/BR |
FUEL PRESSURE SENSOR GROUND |
| 2 |
K181 20DG/VT |
FUEL PRESSURE SENSOR SIGNAL |
| 3 |
K350 20RD/WT |
FUEL PRESSURE SENSOR 5 VOLT SUPPLY |
