Grand Cherokee Laredo, 3.0 M
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

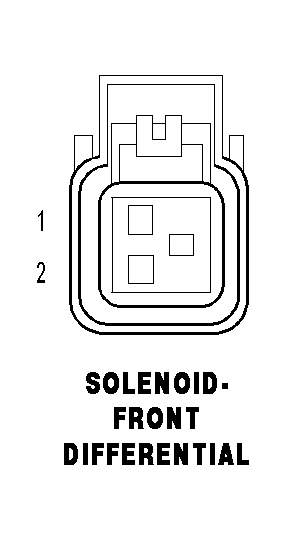

Front Differential Solenoid Connector End View
Front Differential Solenoid Connector End View
SOLENOID-FRONT DIFFERENTIAL - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T301 20DG/YL
SWITCHED BATTERY SOLENOID SUPPLY
2
T306 20DG/DB
FRONT DIFFERENTIAL SOLENOID CONTROL
Courtesy of DAIMLERCHRYSLER CORP.
