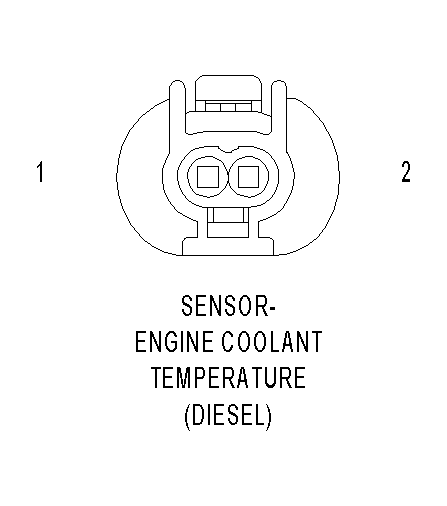

Engine Coolant Temperature Sensor (Diesel) Connector End View

SENSOR-ENGINE COOLANT TEMPERATURE (DIESEL) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K222 20BR/YL	ENGINE COOLANT TEMPERATURE SENSOR GROUND
2	K2 20VT/OR	ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
