Engine Coolant Temperature Sensor (3.7L/4.7L) Connector End View

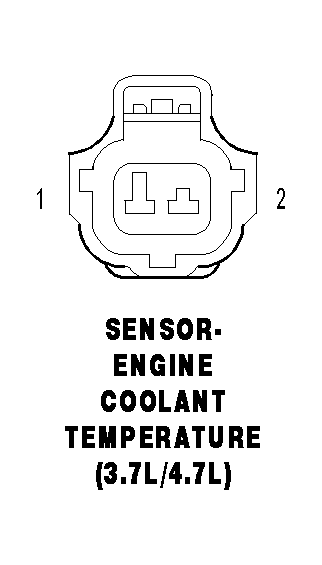

SENSOR-ENGINE COOLANT TEMPERATURE (3.7L/4.7L) - BLACK 2 WAY

GCWH680340Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K2 16VT/OR ECT SIGNAL
2 K900 20DB/DG SENSOR GROUND
