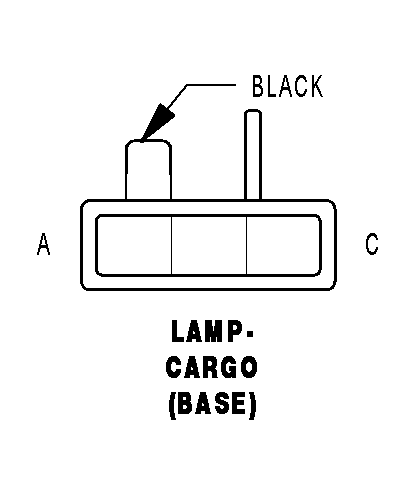

Cargo Lamp (Base) Connector End View

LAMP-CARGO (BASE) - BLACK 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	A931 20RD (DIESEL)	FUSED B(+)
A	A931 20RD/WT (GAS)	FUSED B(+)
B	M22 20YL/OR	COURTESY LAMPS DRIVER
C	-	-
