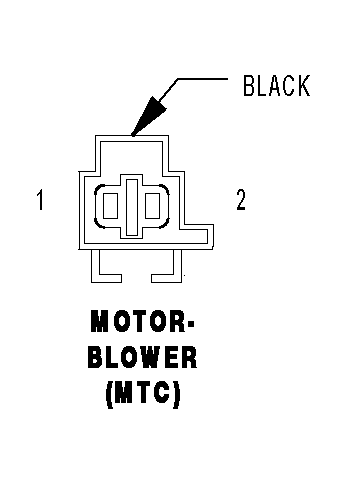

Blower Motor (Manual Temperature Control) Connector End View

MOTOR-BLOWER (MTC) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C7 12DB	BLOWER MOTOR RELAY OUTPUT
2	C75 12LB	BLOWER HIGH SPEED
