Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

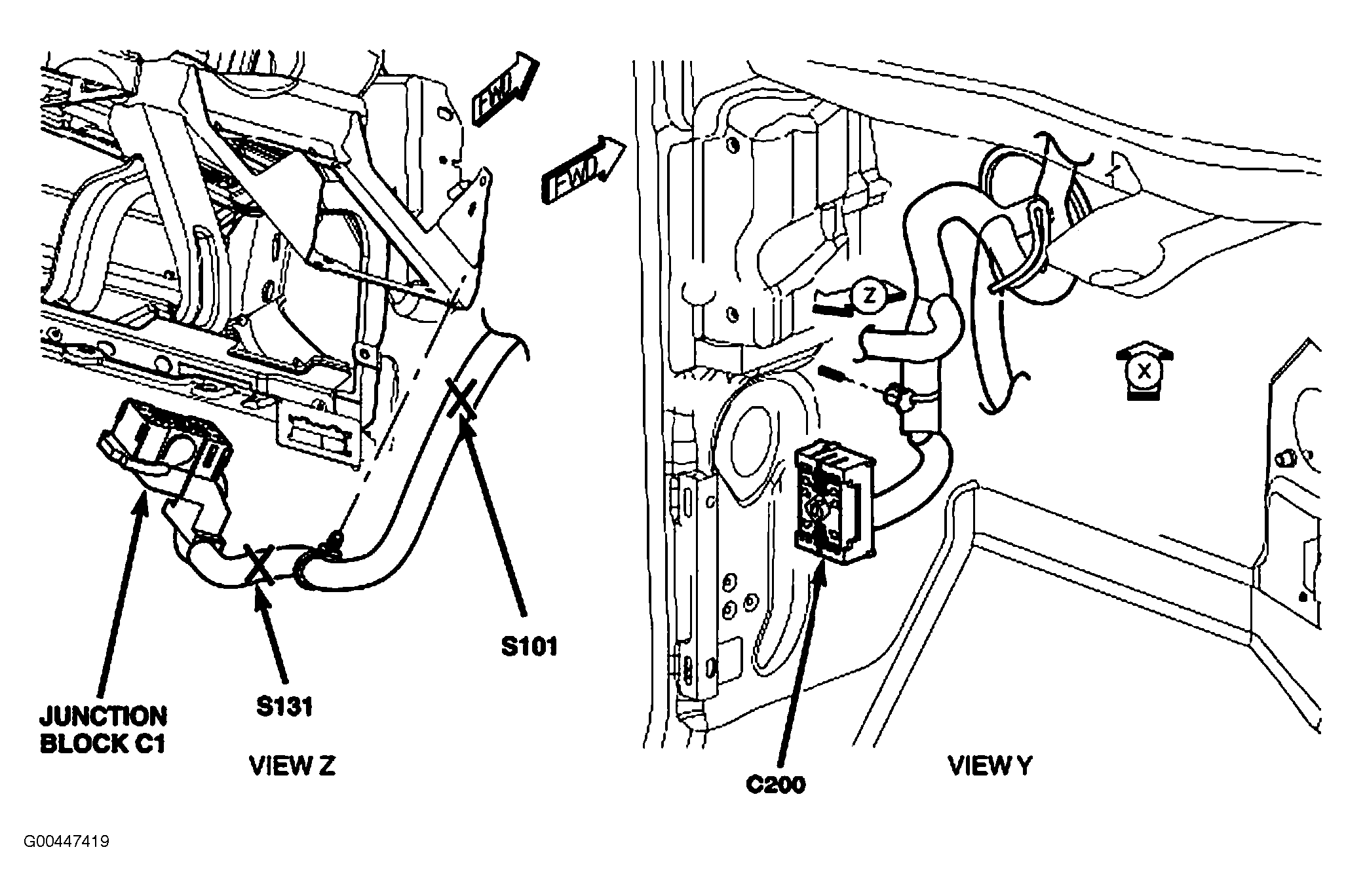

| S101 | In headlamp & dash harness. See Figure. |
| S102 | In headlamp & dash harness. See Figure. |
| S103 | In headlamp & dash harness. See Figure. |
| S104 | In headlamp & dash harness. See Figure. |
| S105 | In headlamp & dash harness. See Figure. |
| S106 | In headlamp & dash harness. See Figure. |
| S107 | In headlamp & dash harness. See Figure. |
| S108 | In headlamp & dash harness. See Figure. |
| S109 | In headlamp & dash harness. |
| S110 | In headlamp & dash harness. See Figure. |
| S111 | In headlamp & dash harness. See Figure. |

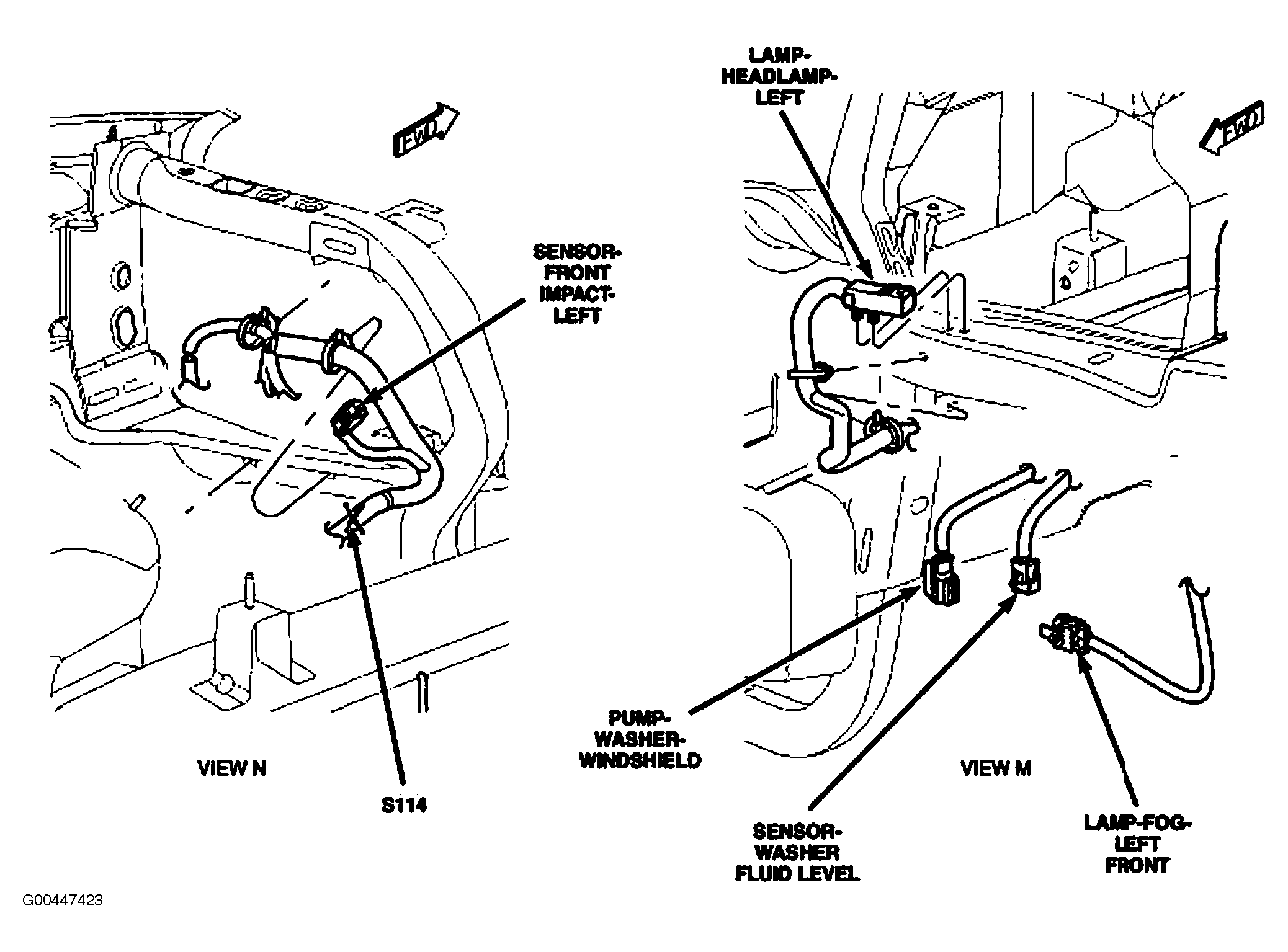

| S114 | In headlamp & dash harness. See Figure. |

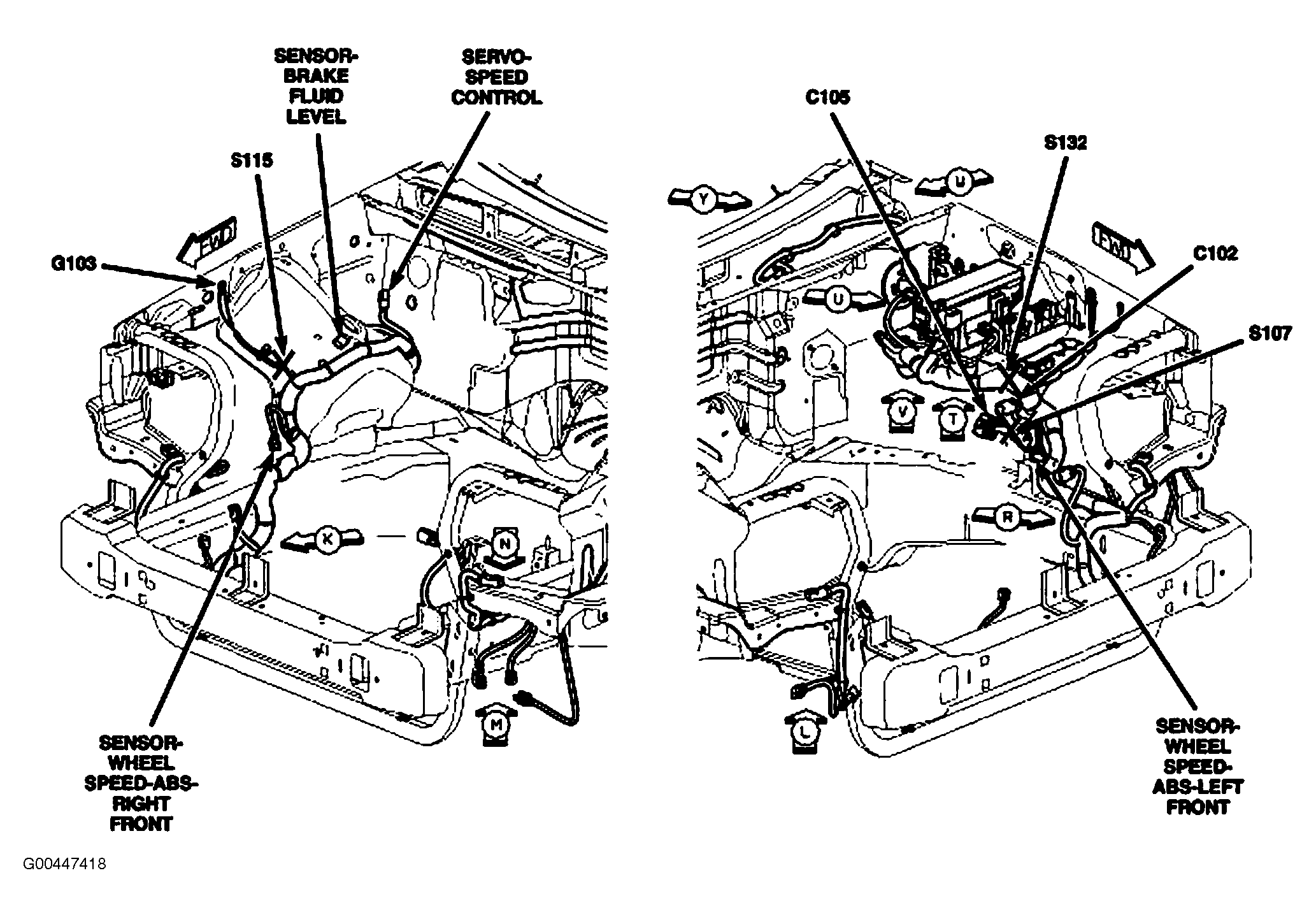

| S115 | In headlamp & dash harness. See Figure. |
| S116 | In power distribution center. See Figure. |
| S117 | In power distribution center. See Figure. |
| S118 | In power distribution center. See Figure. |
| S120 | In headlamp & dash harness. See Figure. |

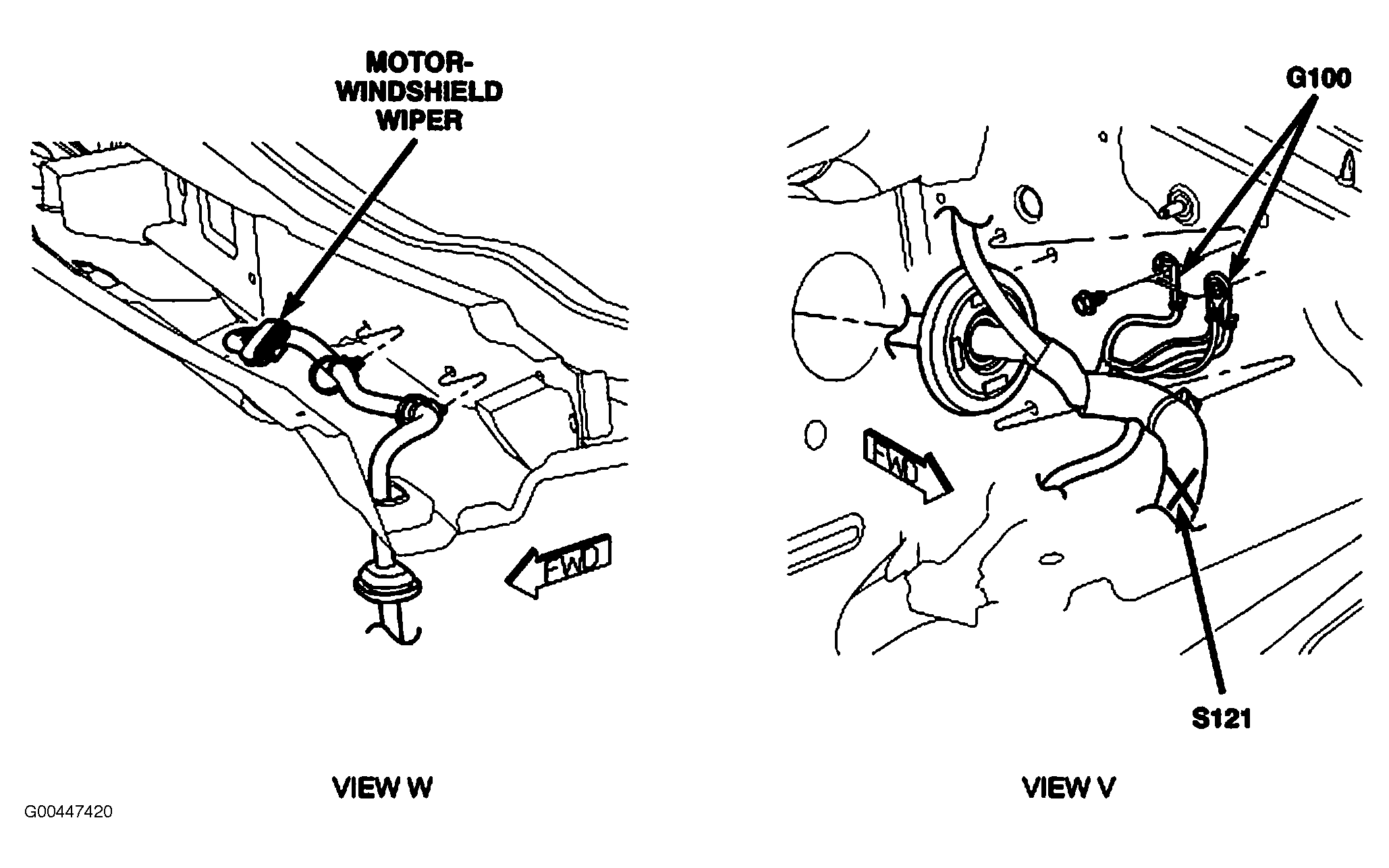

| S121 | In headlamp & dash harness. See Figure. |
| S122 | In headlamp & dash harness. |
| S124 | In headlamp & dash harness. See Figure. |
| S126 | In power distribution center. See Figure. |
| S127 | In power distribution center. See Figure. |
| S128 | In headlamp & dash harness. See Figure. |
| S129 | In headlamp & dash harness. See Figure. |
| S130 | In headlamp & dash harness. See Figure. |
| S131 | In headlamp & dash harness. See Figure. |
| S132 | In headlamp & dash harness. See Figure. |
| S134 | In headlamp & dash harness. |

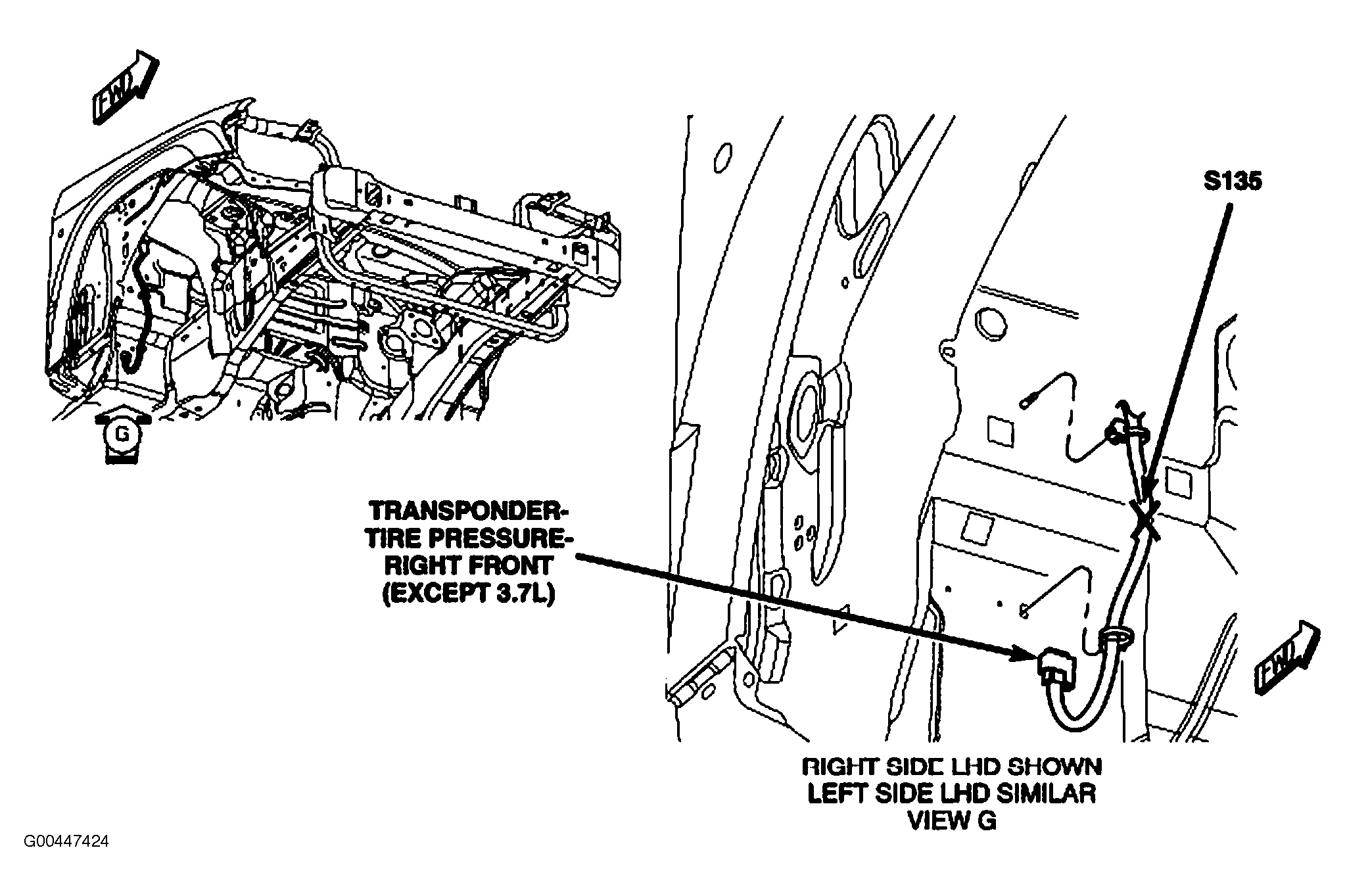

| S135 | In headlamp & dash harness. See Figure. |
| S136 | In headlamp & dash harness. See Figure. |

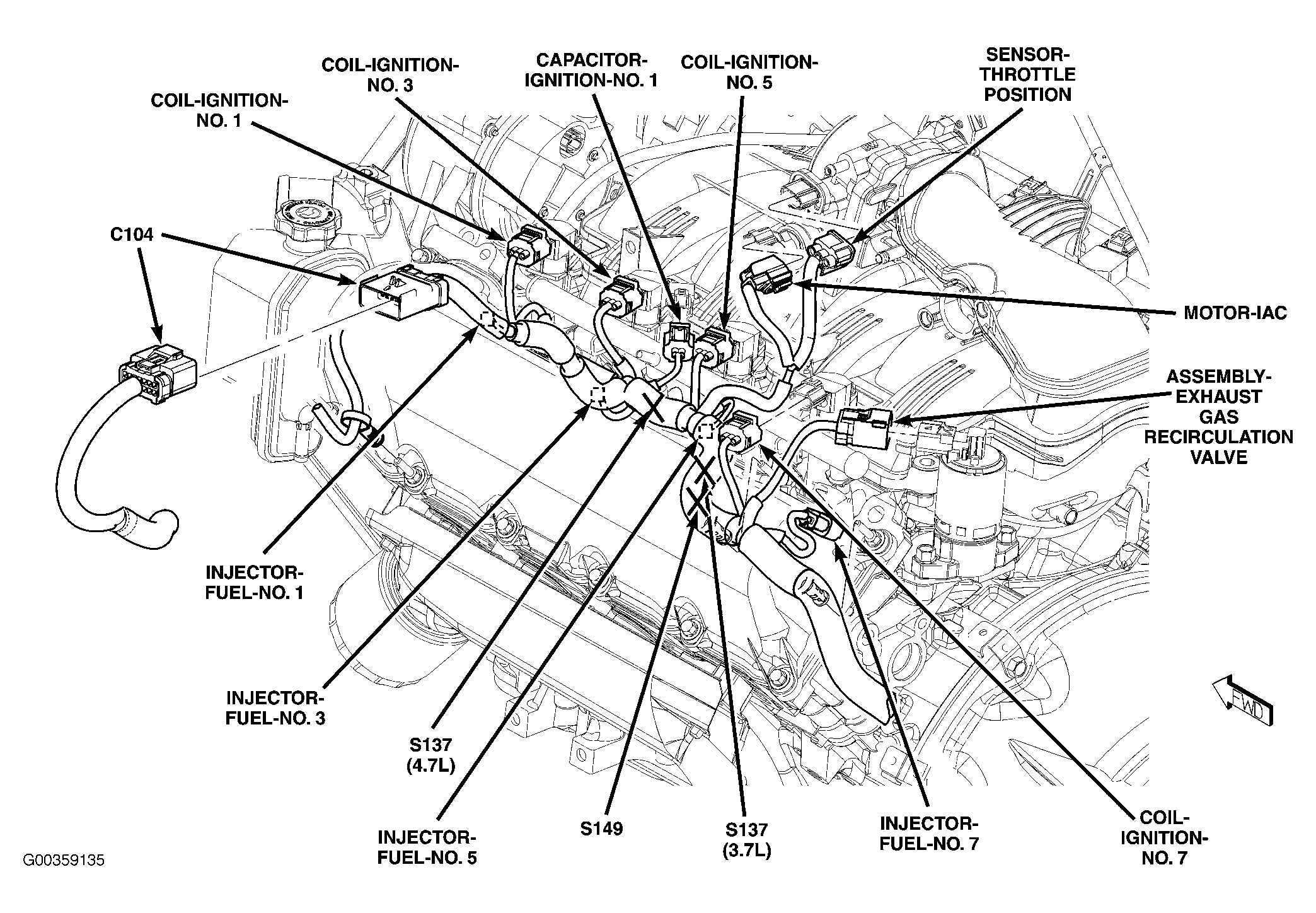

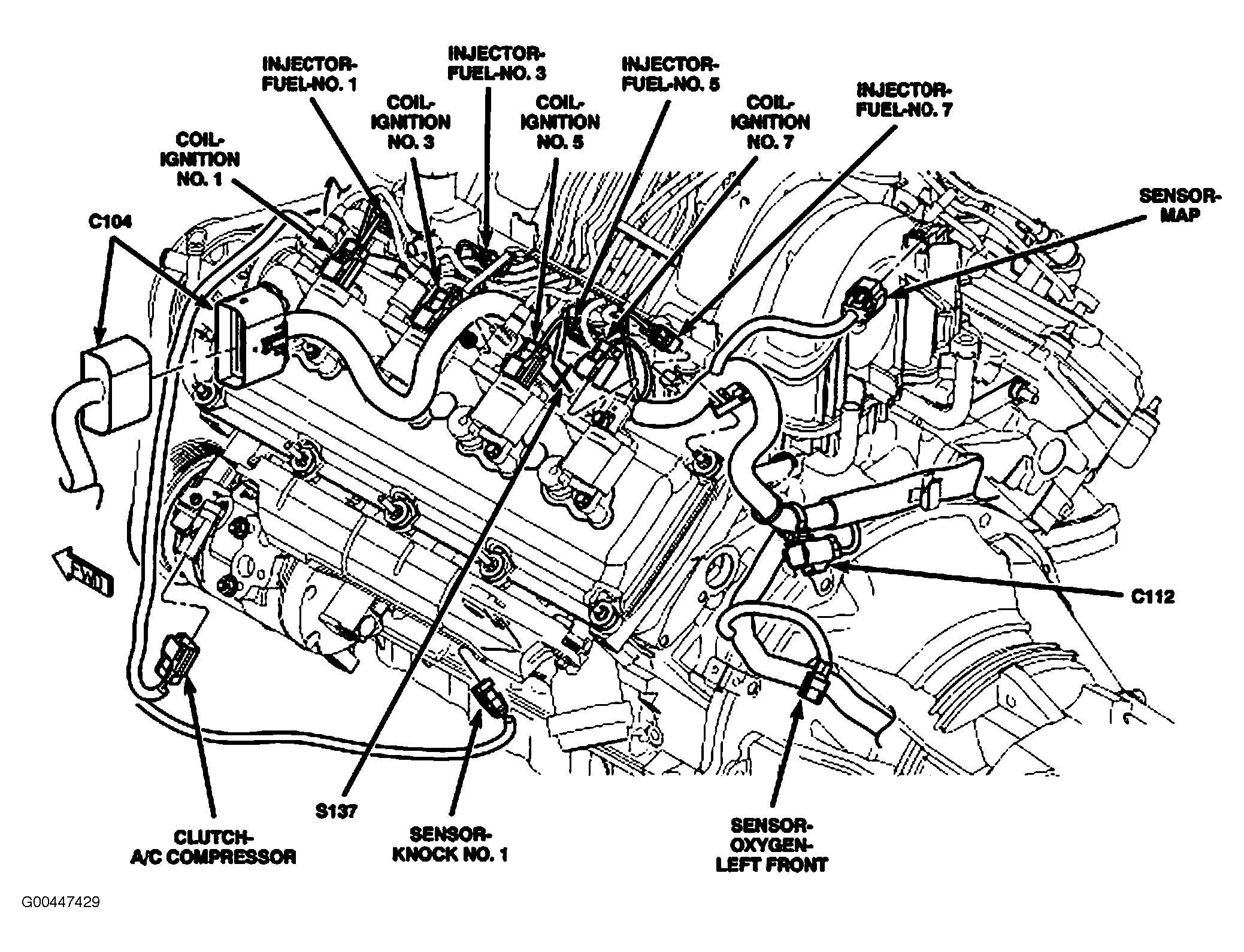

| S137 (4.7L) | Top left of engine. See Figure. |
| S137 (5.7L) | Top left of engine. See Figure. |
| S138 (3.7L & 4.7L) | Right side of engine. See Figure. |
| S138 (5.7L) | Right side of engine. See Figure. |
| S139 (3.7L) | Rear of engine. See Figure. |
| S139 (4.7L) | Right rear of engine. See Figure. |
| S139 5.7L) | Right rear of engine compartment. See Figure. |
| S140 (3.7L) | Right rear of engine compartment. See Figure. |

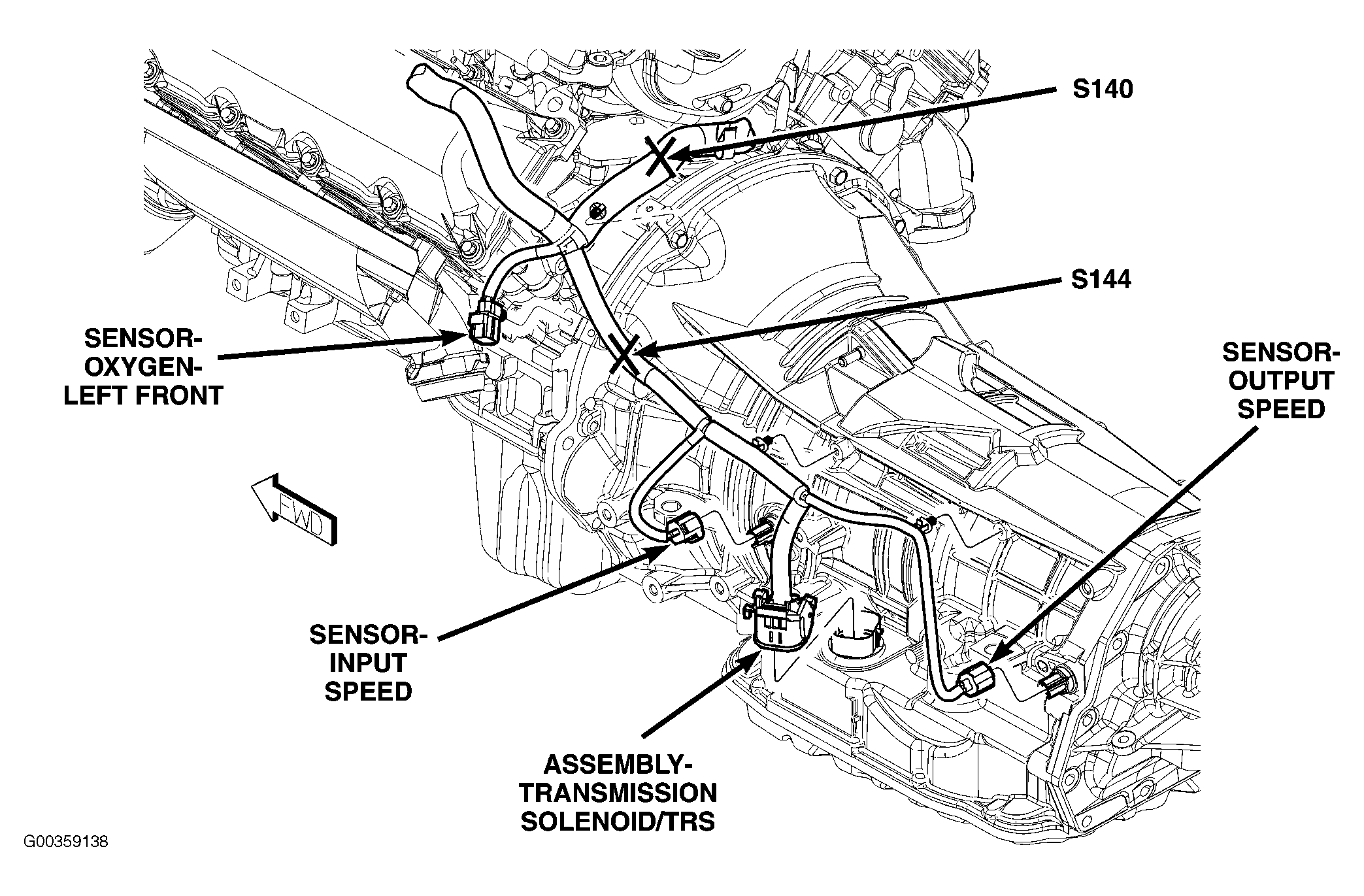

| S140 (4.7L) | Rear of engine. See Figure. |

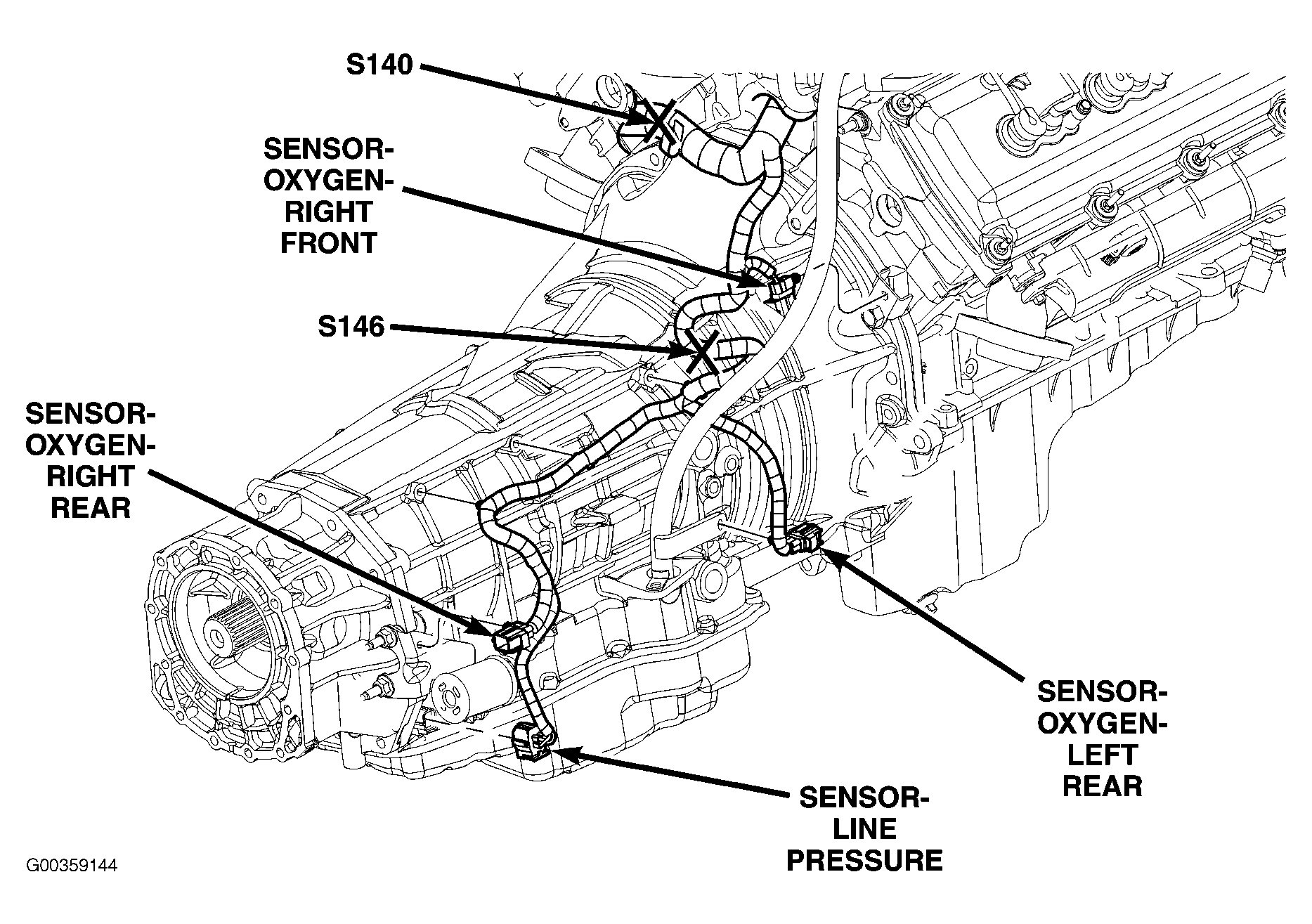

| S140 (5.7L) | Rear of engine. See Figure. |
| S141 (3.7L & 4.7L) | Right side of engine. See Figure. |
| S141 (5.7L) | Right rear of engine. See Figure. |
| S142 (3.7L) | Rear of engine. See Figure. |
| S142 (4.7L) | Right rear of engine compartment. See Figure. |
| S142 (5.7L) | Right rear of engine compartment. See Figure. |

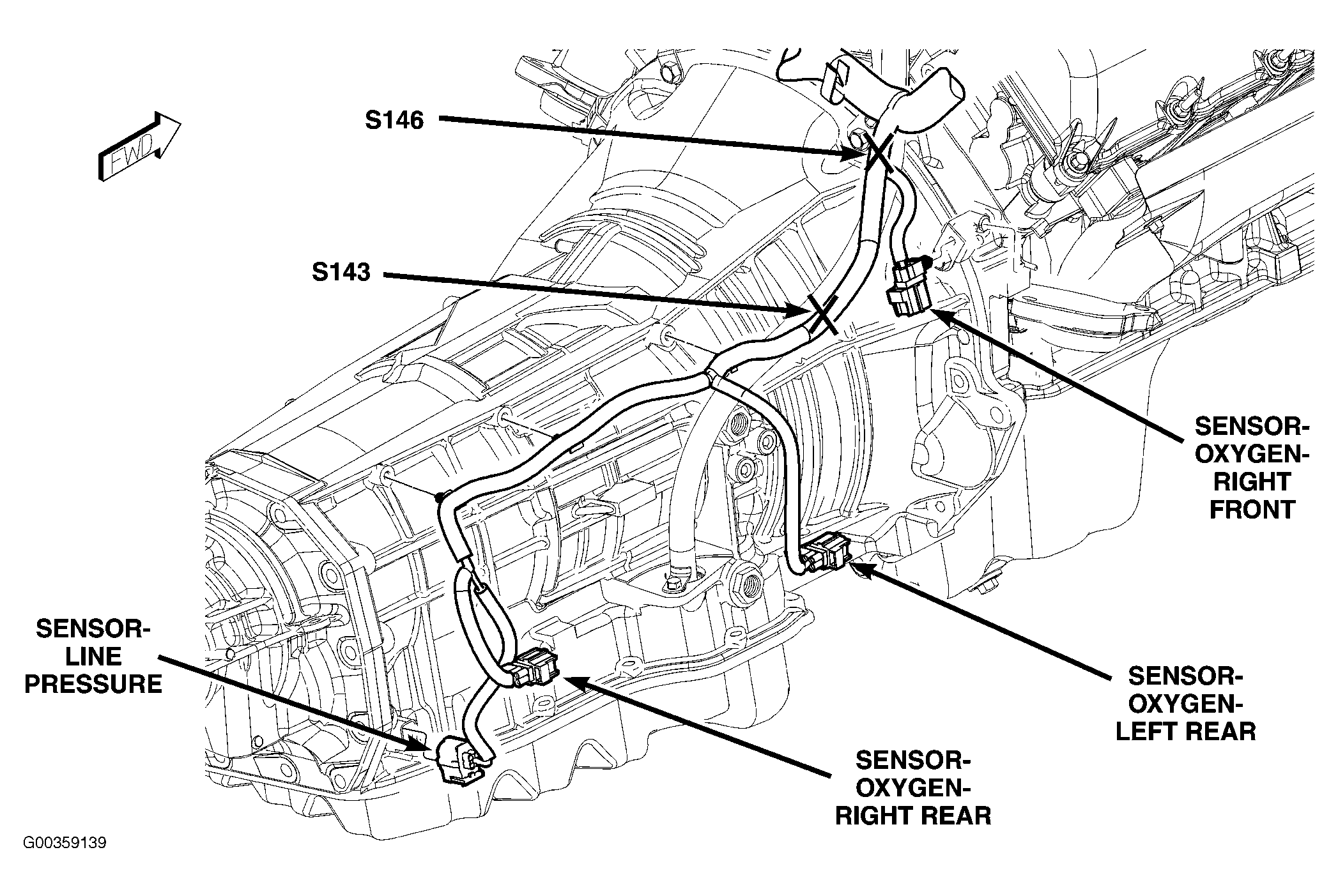

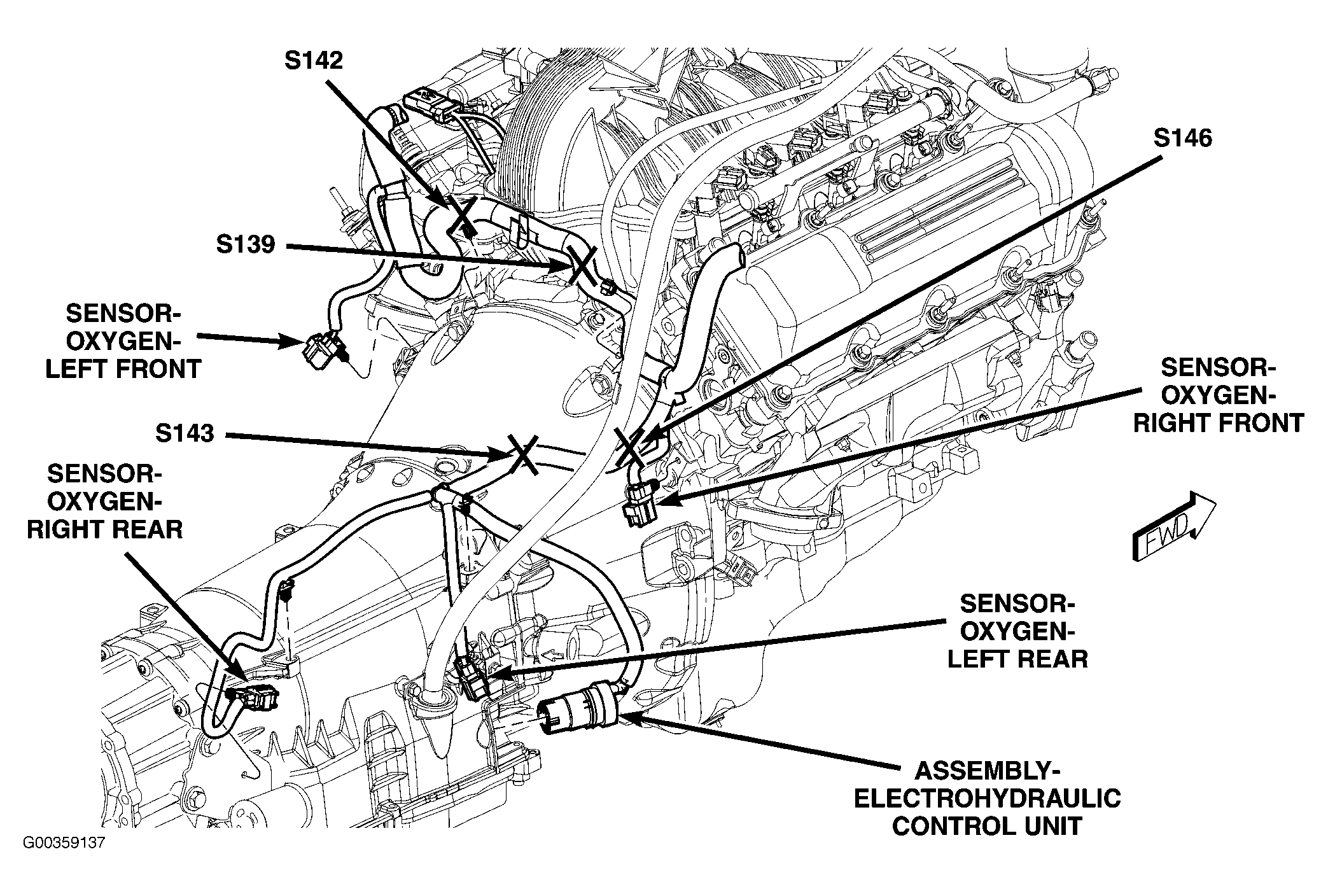

| S143 (3.7L) | Right side of transmission. See Figure. |
| S143 (4.7L) | Right front of transmission. See Figure. |
| S143 (5.7L) | Right front of transmission. |
| S144 (4.7L) | Front of transmission. See Figure. |
| S144 (5.7L) | Front of transmission. See Figure. |
| S145 (3.7L & 4.7L) | Right rear of engine compartment. See Figure. |
| S145 (5.7L) | Right rear of engine compartment. See Figure. |
| S146 (3.7L) | Right side of transmission. See Figure. |
| S146 (4.7L) | Right front of transmission. See Figure. |
| S146 (5.7L) | Front of transmission. See Figure. |
| S147 (3.7L & 4.7L) | Right rear of engine compartment. See Figure. |
| S147 (5.7L) | Right rear of engine compartment. See Figure. |
| S148 (3.7L & 4.7L) | Right side of engine. See Figure. |
| S148 (5.7L) | Right side of engine. See Figure. |
| S149 (3.7L & 4.7L) | Left rear of engine. See Figure. |
| S149 (5.7L) | Left rear of engine. |
| S150 (3.7L & 4.7L) | Right rear of engine. See Figure. |
| S150 (5.7L) | Right rear of engine. See Figure. |
| S151 | In headlamp & dash harness. |
| S152 | In headlamp & dash harness. |
| S153 | In headlamp & dash harness. |
| S154 | Top of engine. |
| S155 | In headlamp & dash harness. |
| S156 | In headlamp & dash harness. |
| S162 | In headlamp & dash harness. |
| S163 | In headlamp & dash harness. |
| S164 | In headlamp & dash harness. |
| S198 | In headlamp & dash harness. |
| S200 | On steering wheel. |
| S201 | On steering wheel. |
| S202 | Near breakout for ignition switch. See Figure. |
| S203 | Near breakout for C202. |
| S204 | Center stack, in breakout to switch bank. |
| S205 | Near breakout for instrument cluster. |
| S206 | Near breakout for instrument cluster. |

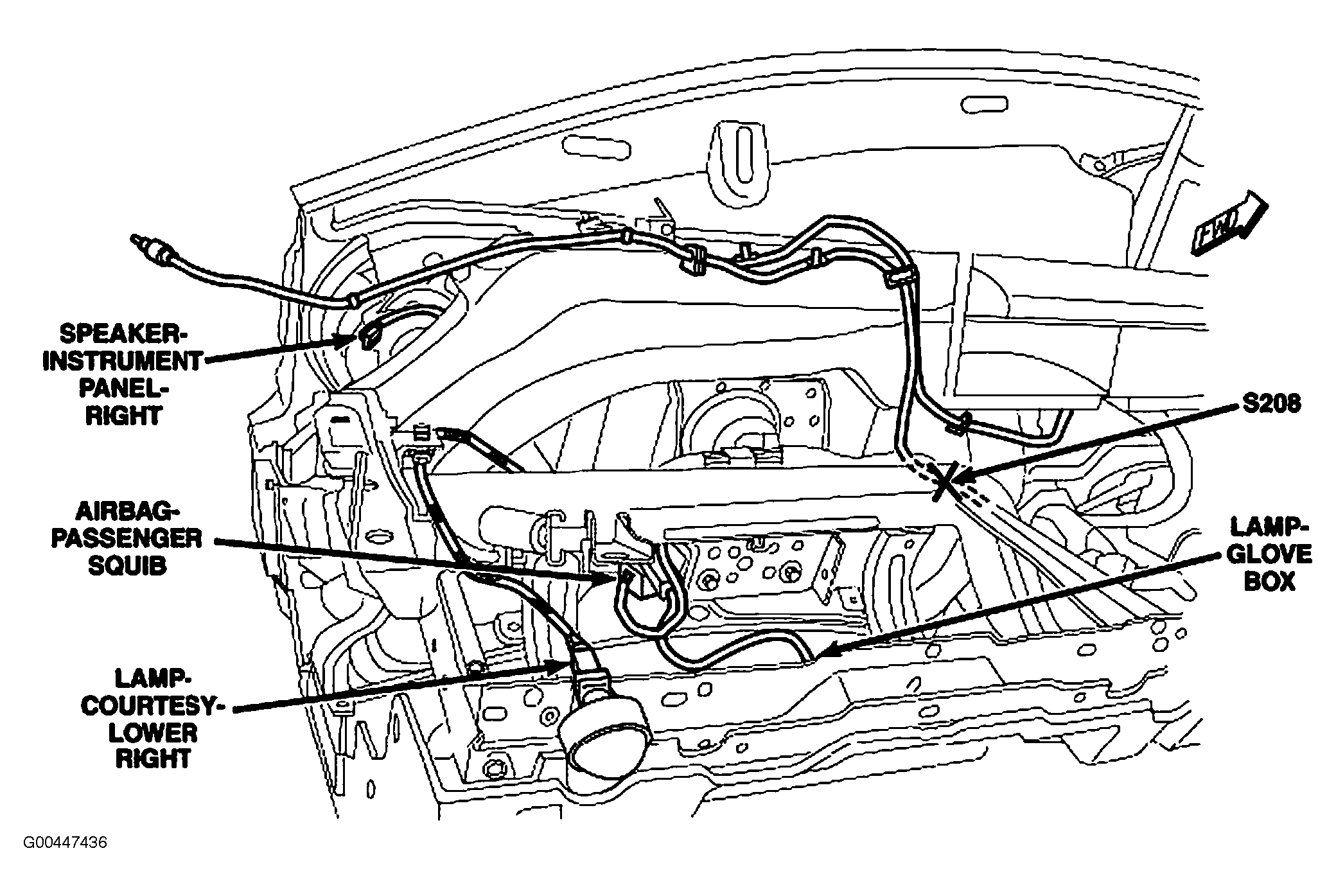

| S208 | Behind right side of dash. See Figure. |

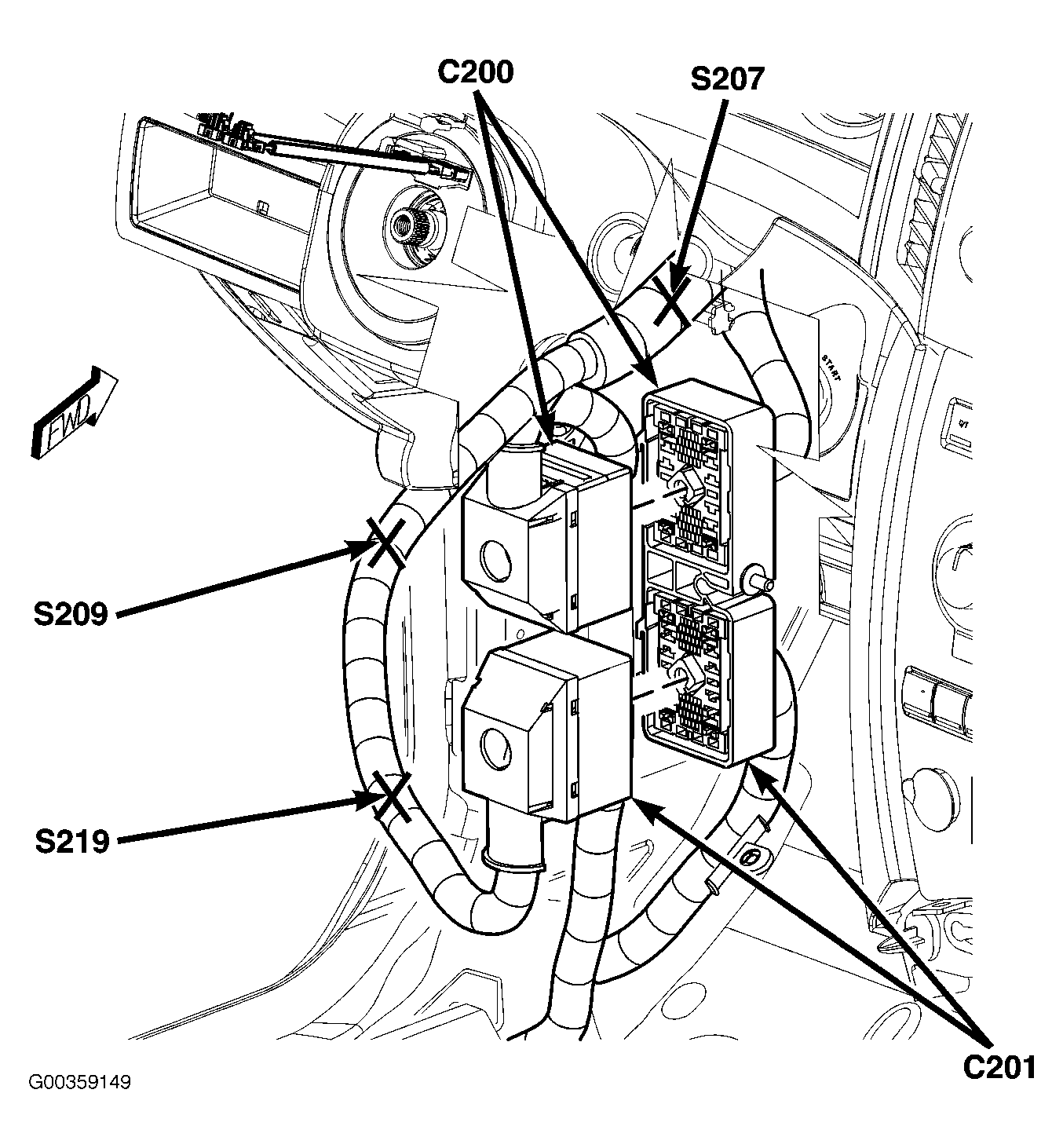

| S209 | Left kick panel. See Figure. |
| S210 | Near breakout for ignition switch. See Figure. |
| S211 | Near breakout for ignition switch. See Figure. |

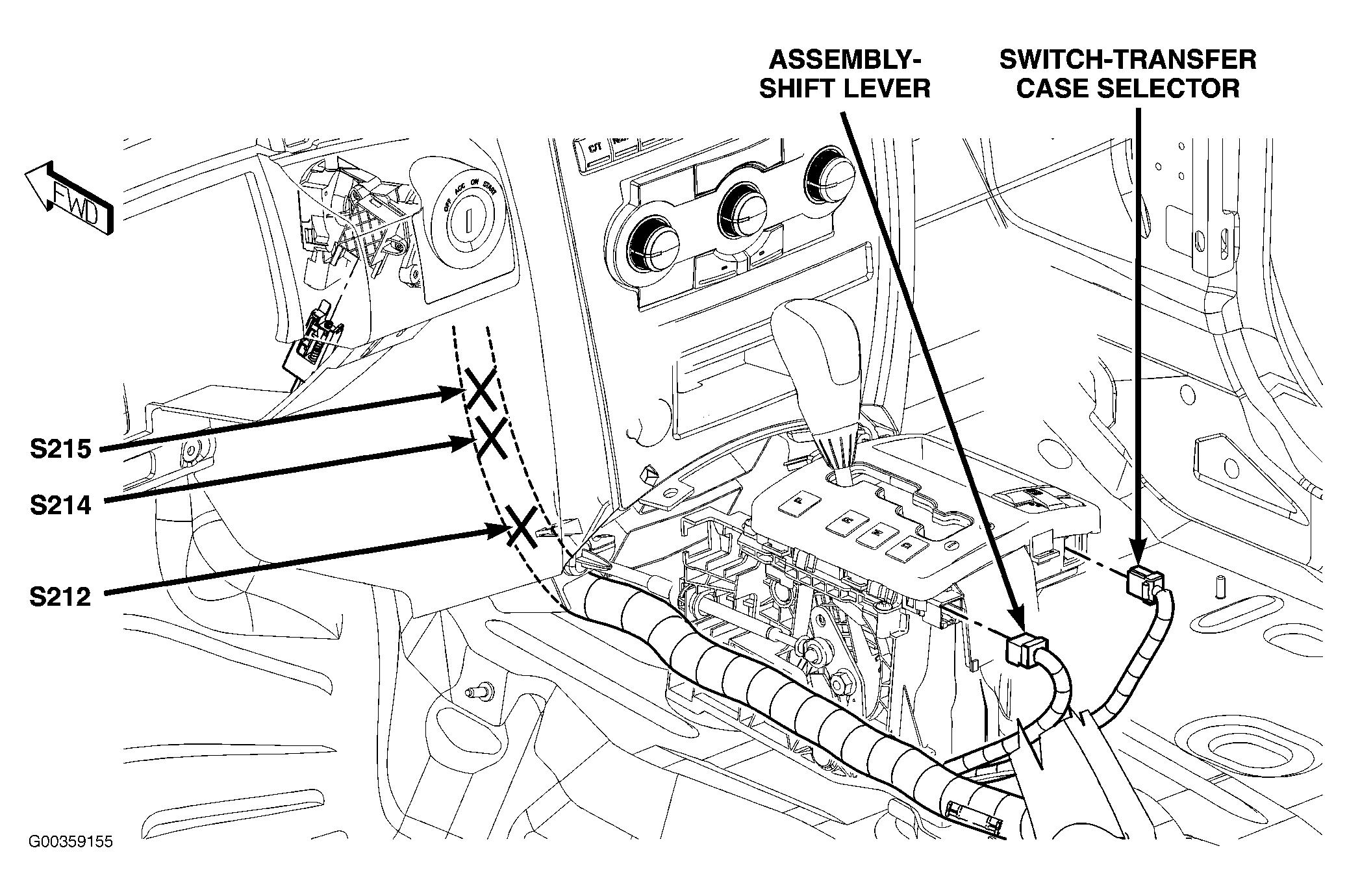

| S212 | Near breakout for instrument panel power outlet. See Figure. |

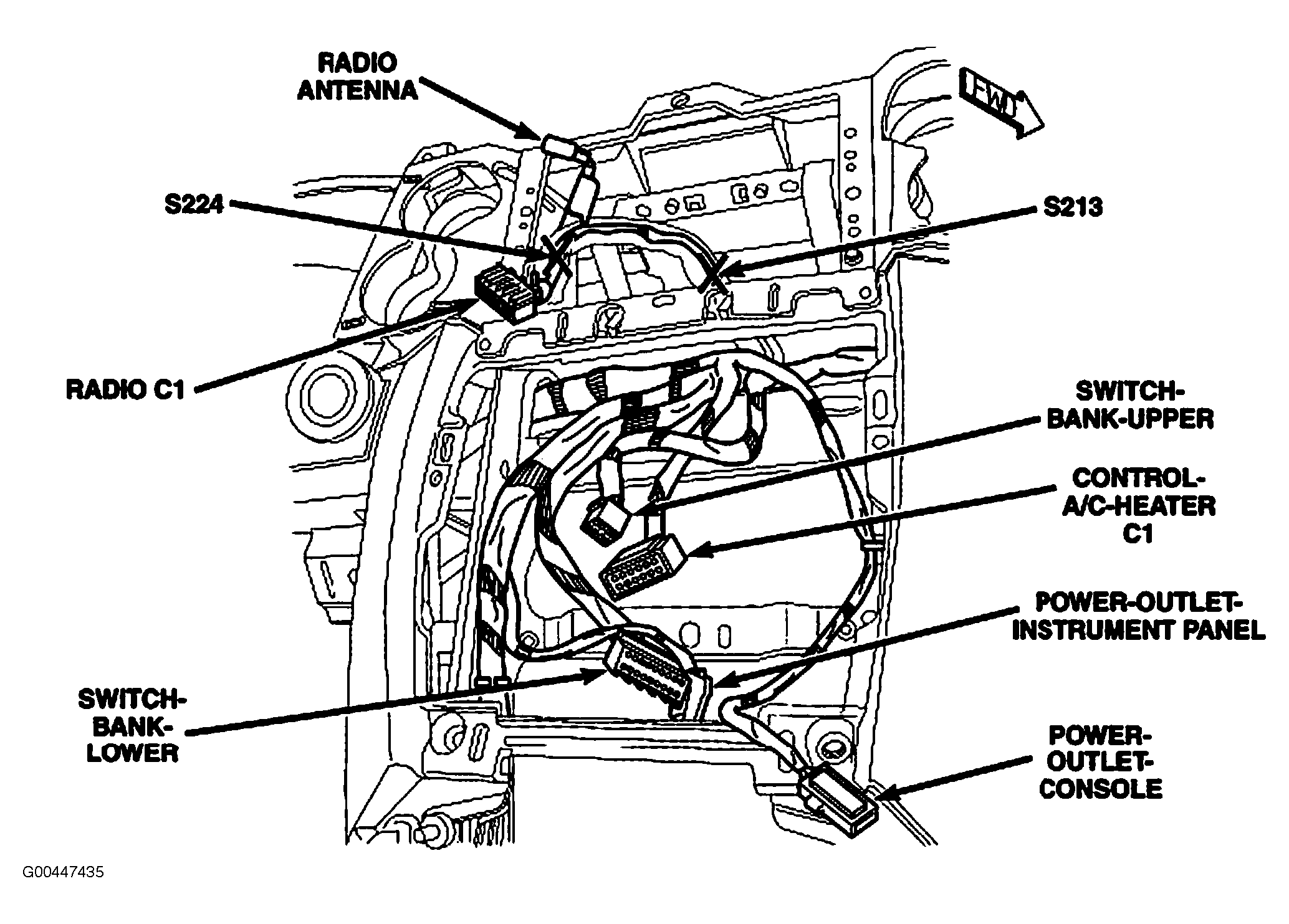

| S213 | Center stack, in breakout for radio. See Figure. |
| S214 | Near breakout for instrument panel power outlet. See Figure. |
| S215 | Near breakout for instrument panel power outlet. See Figure. |
| S216 | Near breakout for instrument cluster. See Figure. |
| S217 | Near breakout for instrument cluster. See Figure. |
| S218 | On steering wheel. See Figure. |
| S219 | Left kick panel. See Figure. |
| S224 | Center stack, in breakout for radio. See Figure. |
| S225 | Center stack, in breakout for radio. |
| S228 | Left side of dash, near breakout for left courtesy lamp. |
| S230 | Near breakout for data link connector. |
| S231 | Right kick panel. See Figure. |
| S232 | On steering wheel. |
| S233 | On steering wheel. |
| S234 | Right side of HVAC unit. See Figure. |

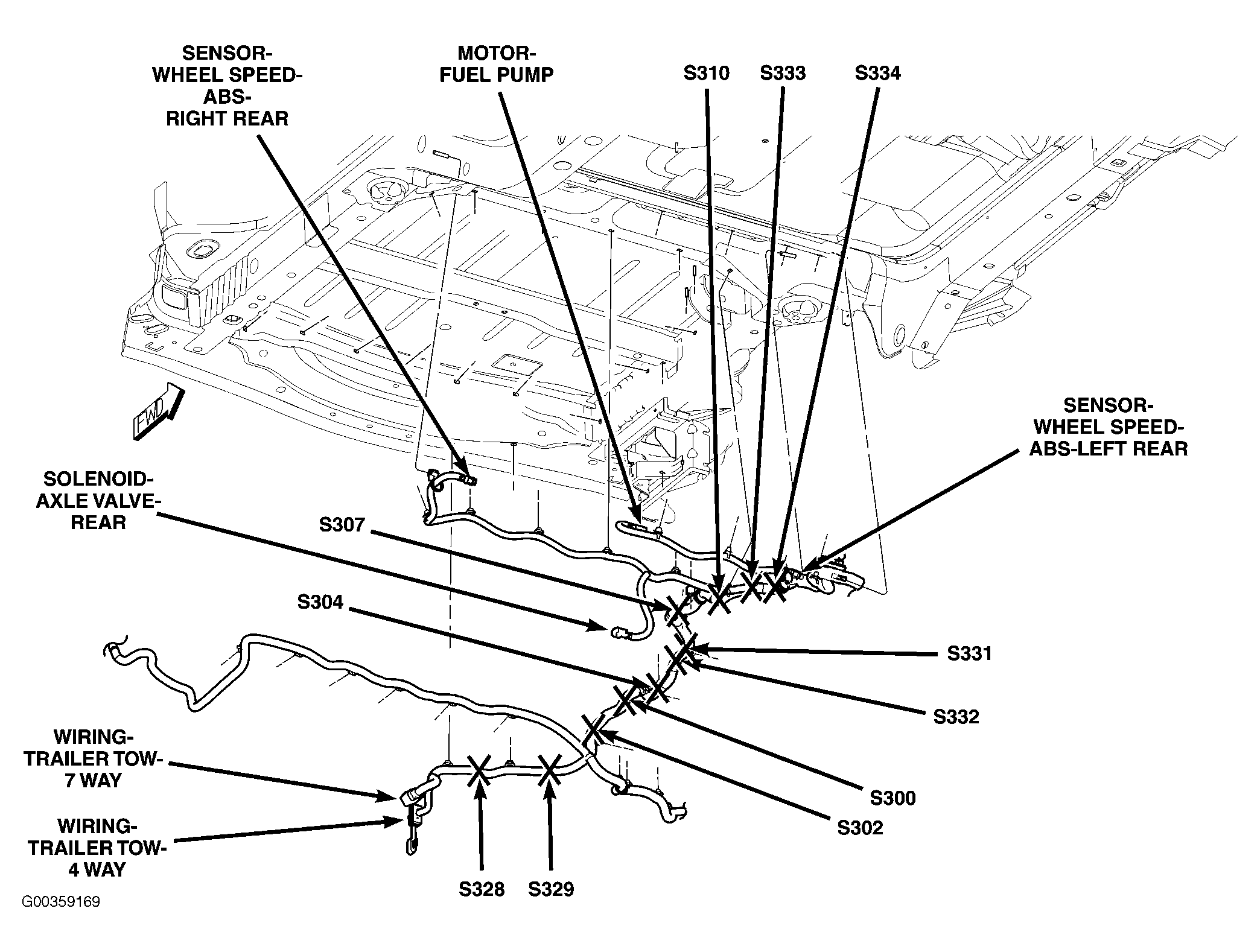

| S300 | Under rear of vehicle. See Figure. |

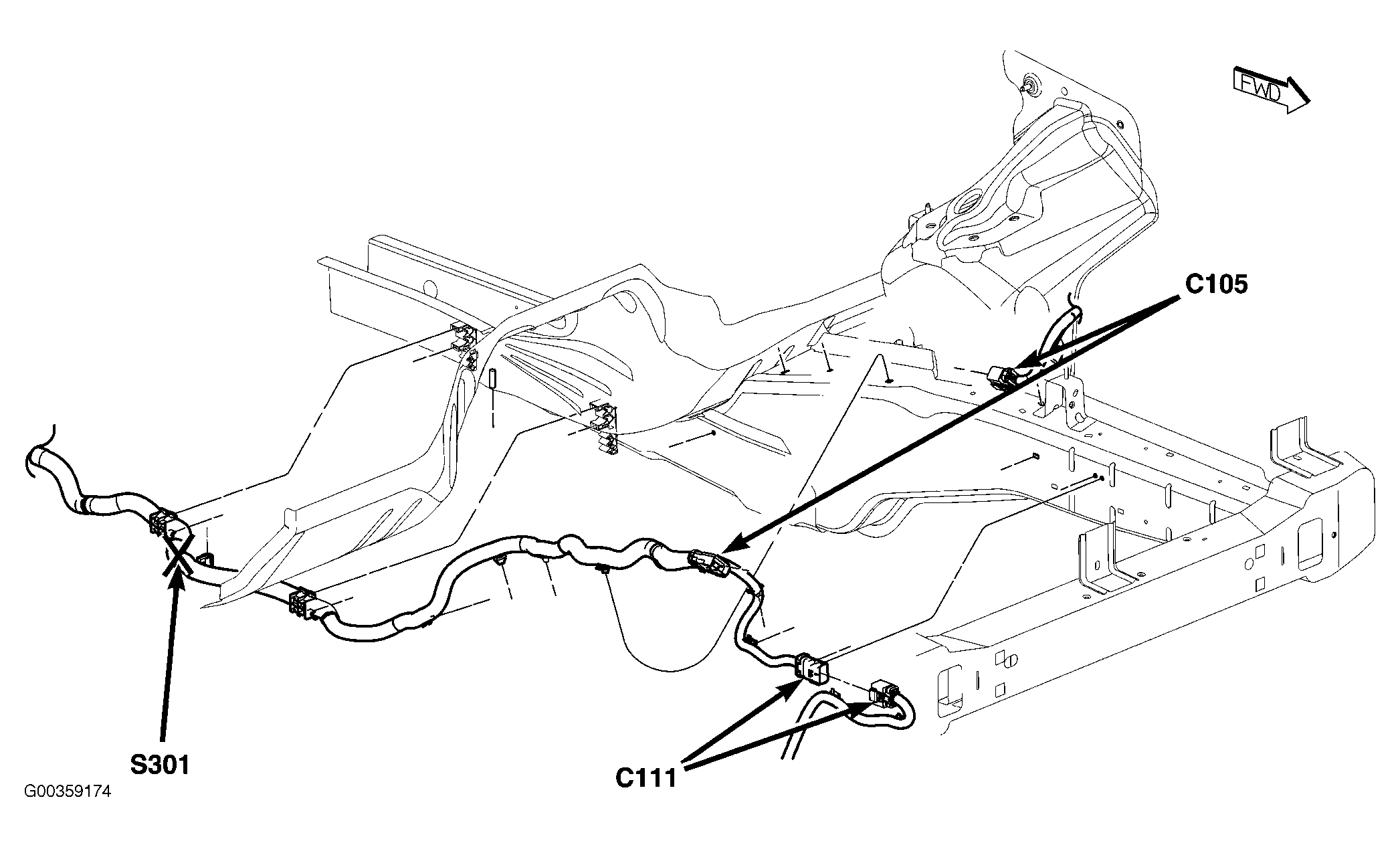

| S301 | Under left front of vehicle. See Figure. |
| S302 | Under rear of vehicle. See Figure. |

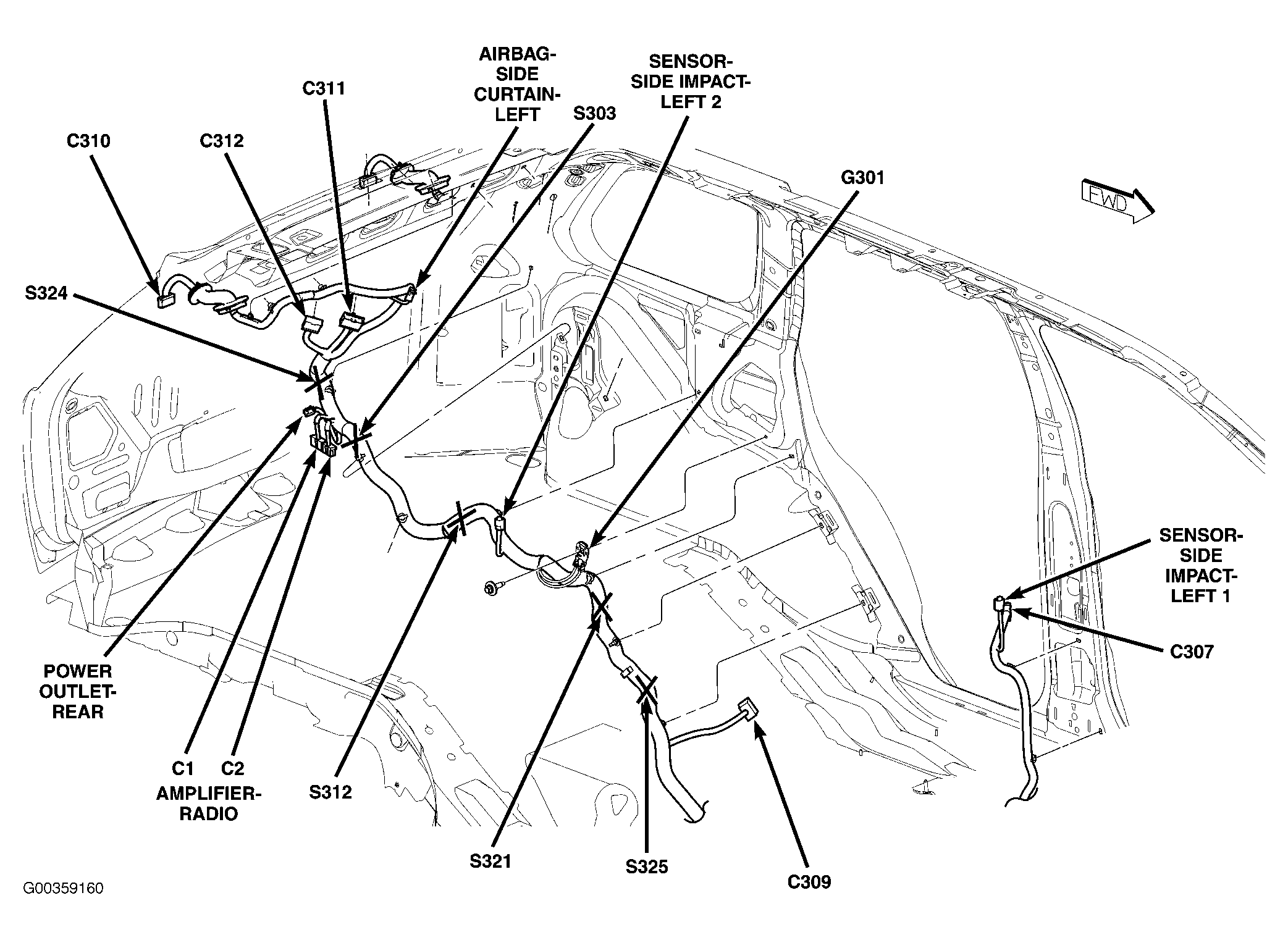

| S303 | Left rear of body. See Figure. |
| S304 | Under rear of vehicle. See Figure. |

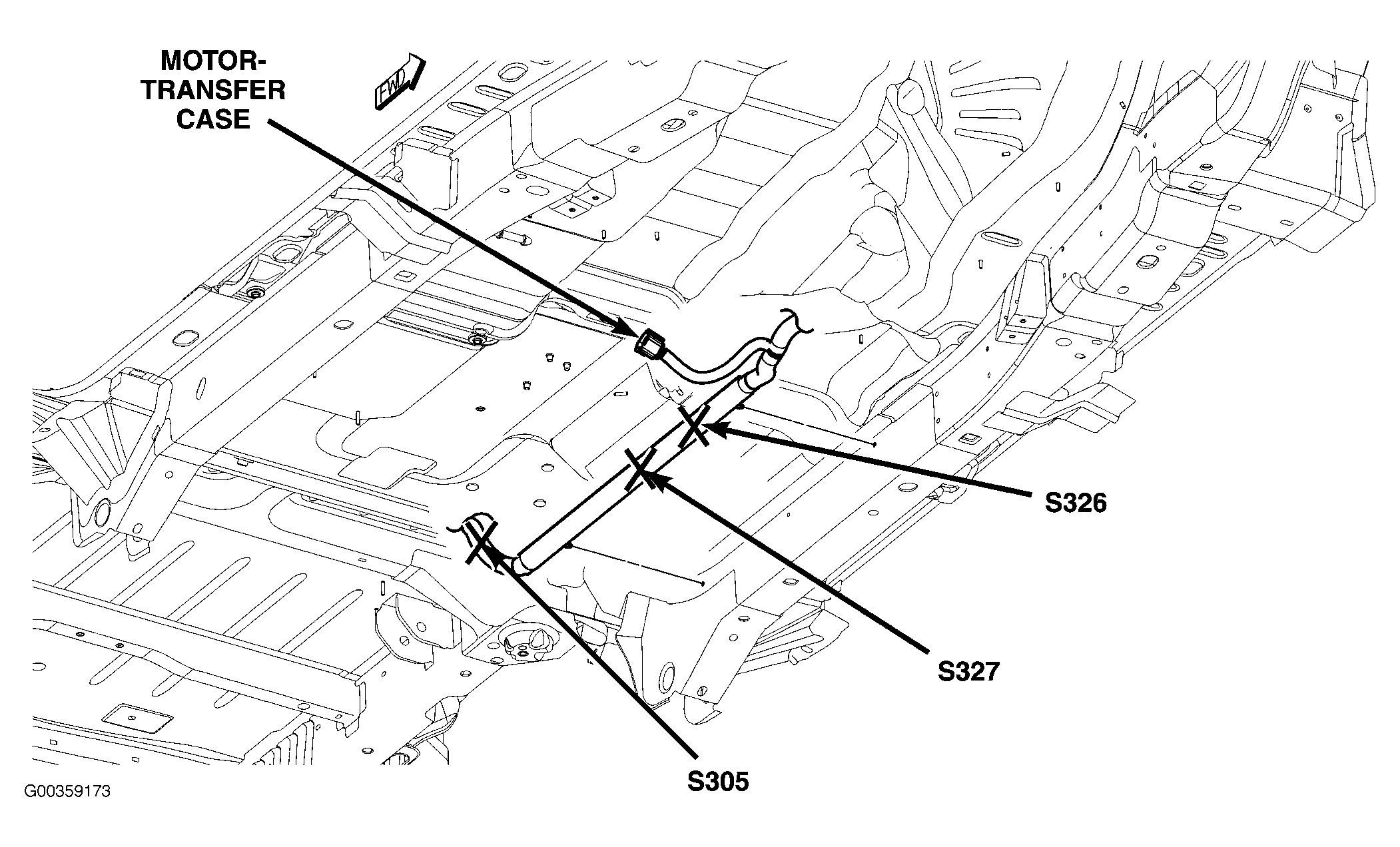

| S305 | Under center of vehicle. See Figure. |

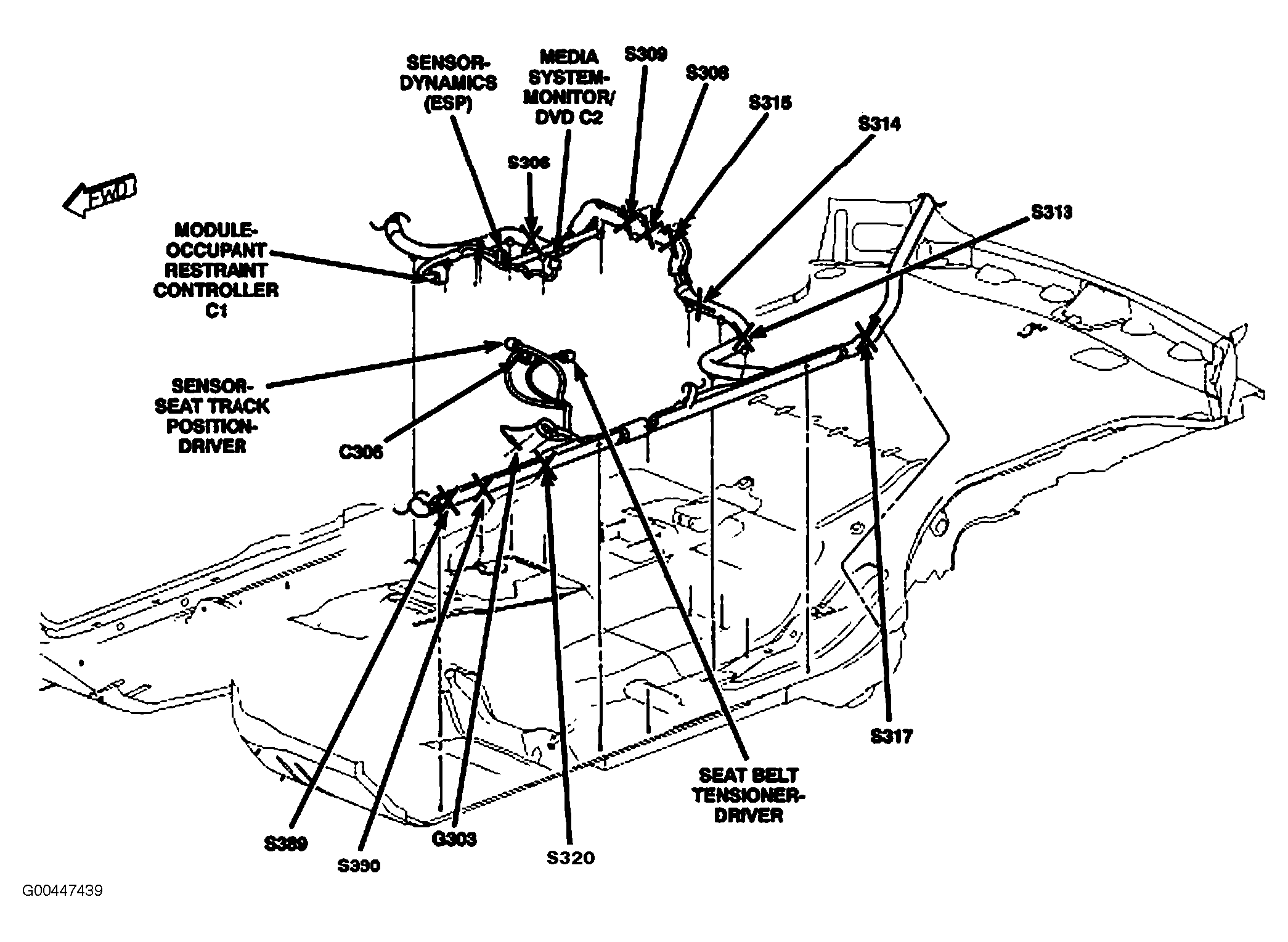

| S306 | Below passenger seat. See Figure. |
| S307 | Under rear of vehicle. See Figure. |
| S308 | Below driver seat. See Figure. |
| S309 | Below driver seat. See Figure. |
| S311 | Left rear door sill. See Figure. |
| S312 | Left rear of body. See Figure. |
| S313 | Below driver seat. See Figure. |
| S314 | Below driver seat. See Figure. |
| S315 | Below driver seat. See Figure. |
| S317 | Left rear door sill. See Figure. |
| S318 | Right front door sill. See Figure. |
| S319 | Right rear door sill. See Figure. |
| S320 | Right front door sill. See Figure. |
| S321 | Left rear door sill. See Figure. |

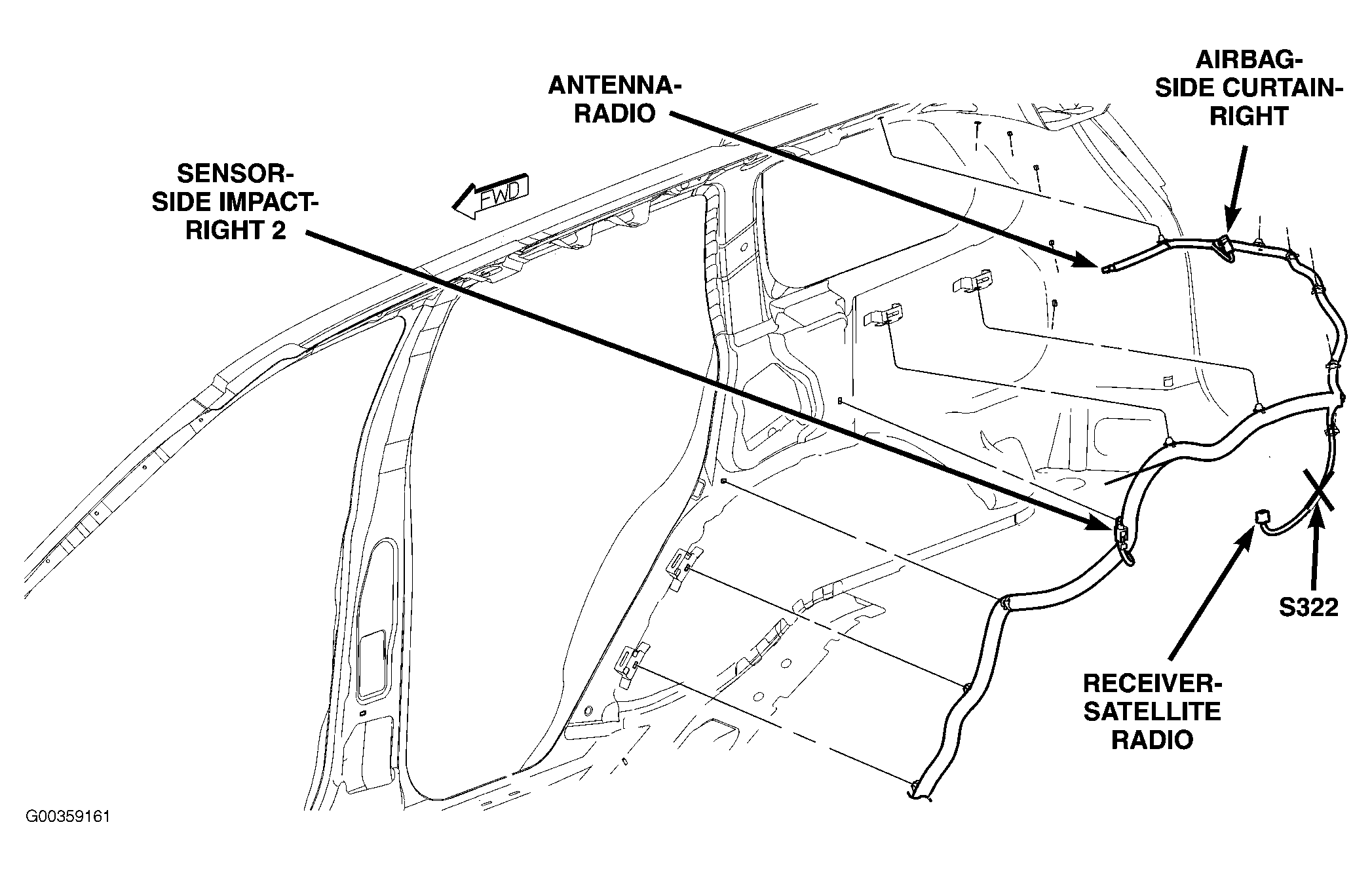

| S322 | In breakout for satellite receiver. See Figure. |
| S325 | Left rear door sill. See Figure. |
| S328 | Under rear of vehicle. See Figure. |
| S329 | On underbody harness. See Figure. |
| S331 | Under rear of vehicle. See Figure. |
| S332 | Under rear of vehicle. See Figure. |
| S333 | Under rear of vehicle. See Figure. |
| S334 | Under rear of vehicle. See Figure. |
| S335 | On underbody harness. |
| S336 | Below left rear seat. See Figure. |
| S337 | On underbody harness. |
| S338 | On underbody harness. |
| S339 | On underbody harness. |

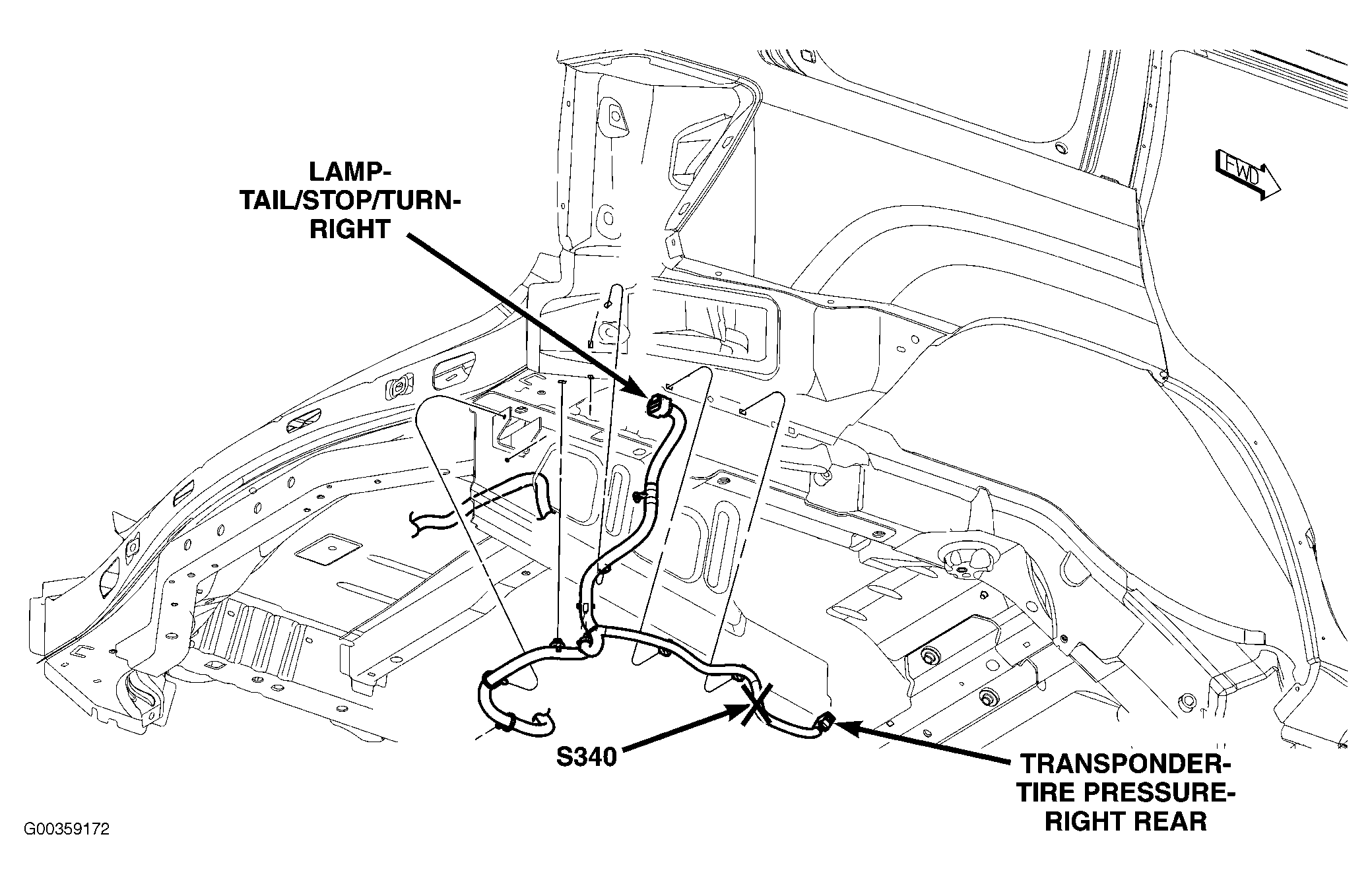

| S340 | Under right rear of vehicle. See Figure. |
| S341 | In driver door. See Figure. |
| S342 | In driver door. See Figure. |
| S343 | In driver door. See Figure. |
| S344 | In driver door. See Figure. |
| S345 | In driver door. See Figure. |
| S346 | In driver door. See Figure. |
| S347 | In driver door. See Figure. |

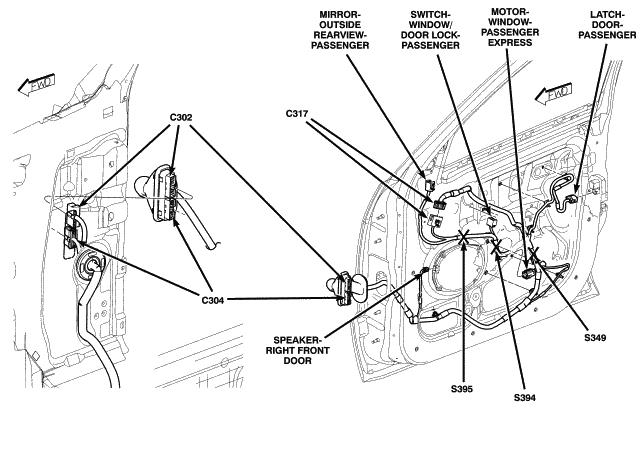

| S349 | In passenger door. See Figure. |

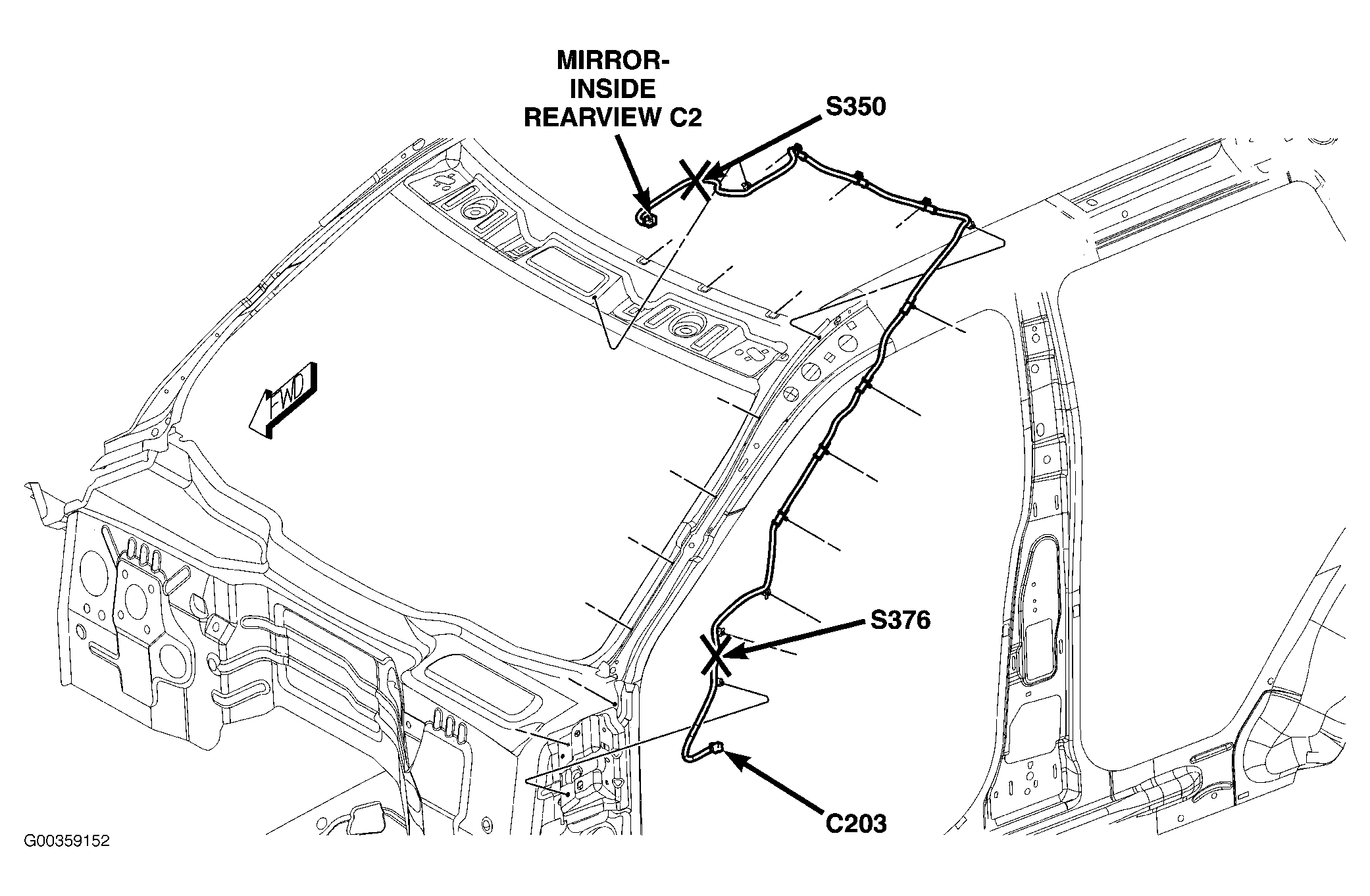

| S350 (Base) | Center front of headliner. See Figure. |
| S350 (Except Base) | Left rear of headliner. See Figure. |

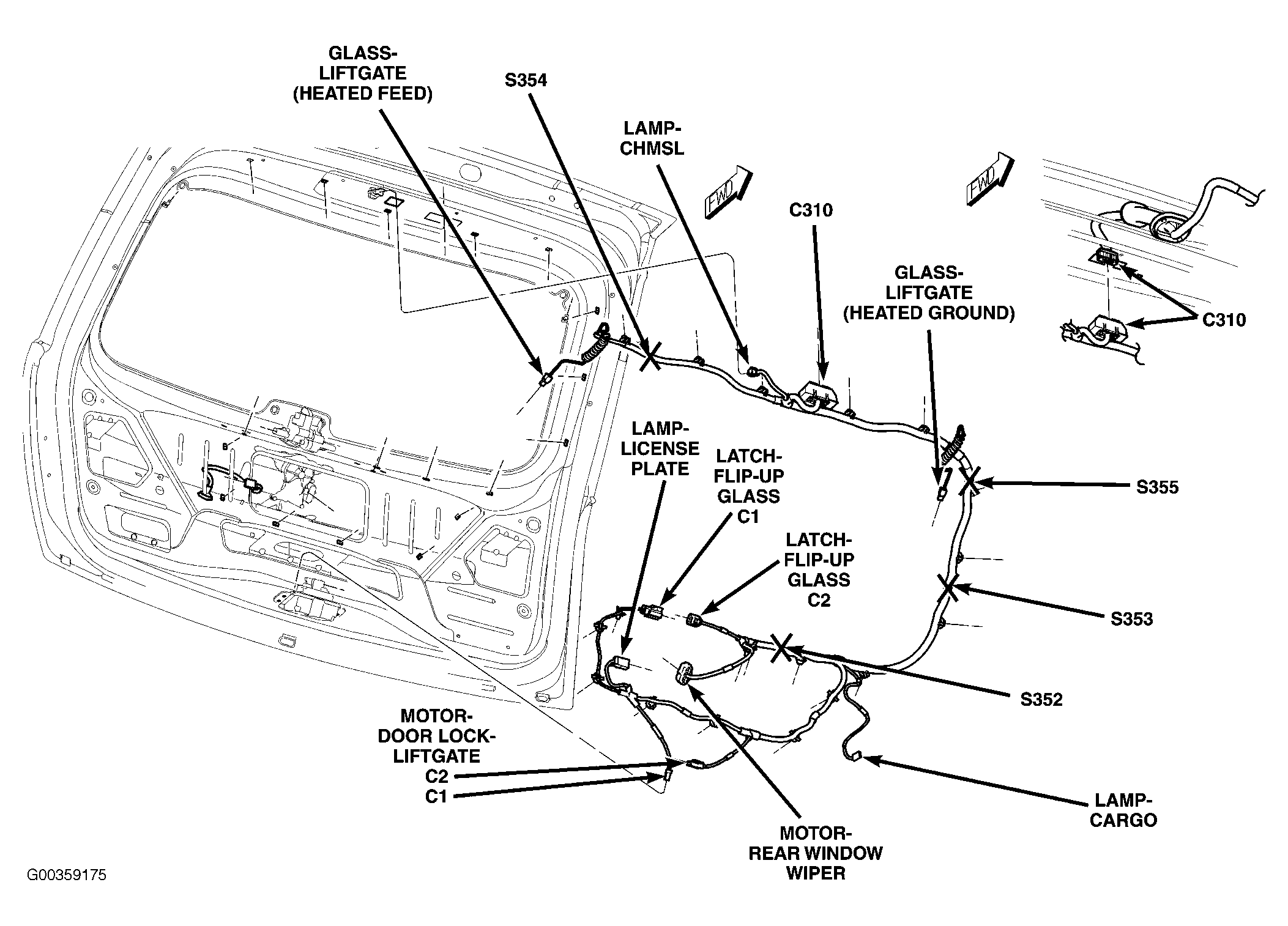

| S352 | Lower center of liftgate. See Figure. |
| S353 | Left side of liftgate. See Figure. |
| S354 | Upper right side of liftgate. See Figure. |
| S355 | Upper left of liftgate. See Figure. |

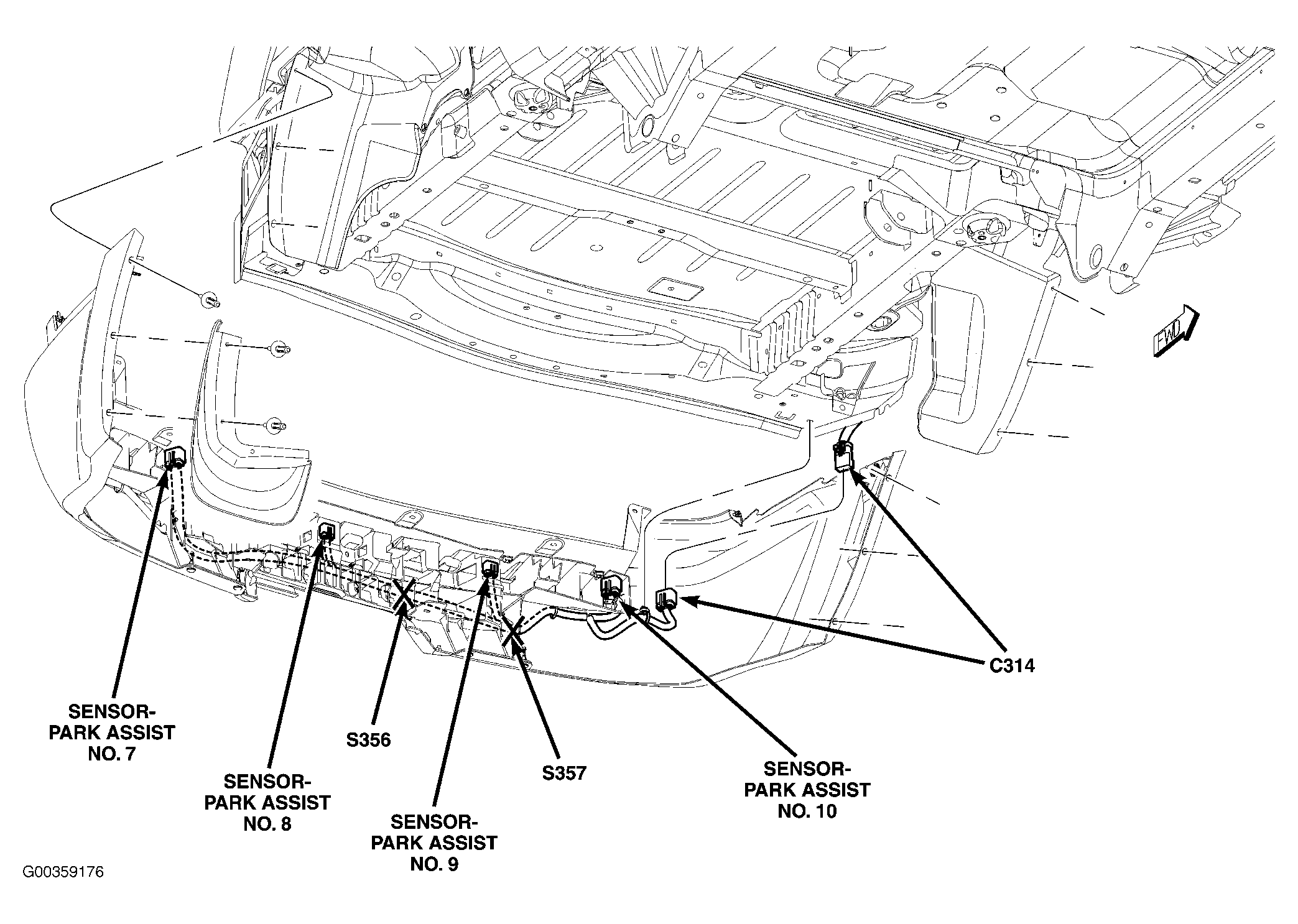

| S356 | Center of rear bumper. See Figure. |
| S357 | Center of rear bumper. See Figure. |
| S360 | Left rear of headliner. |

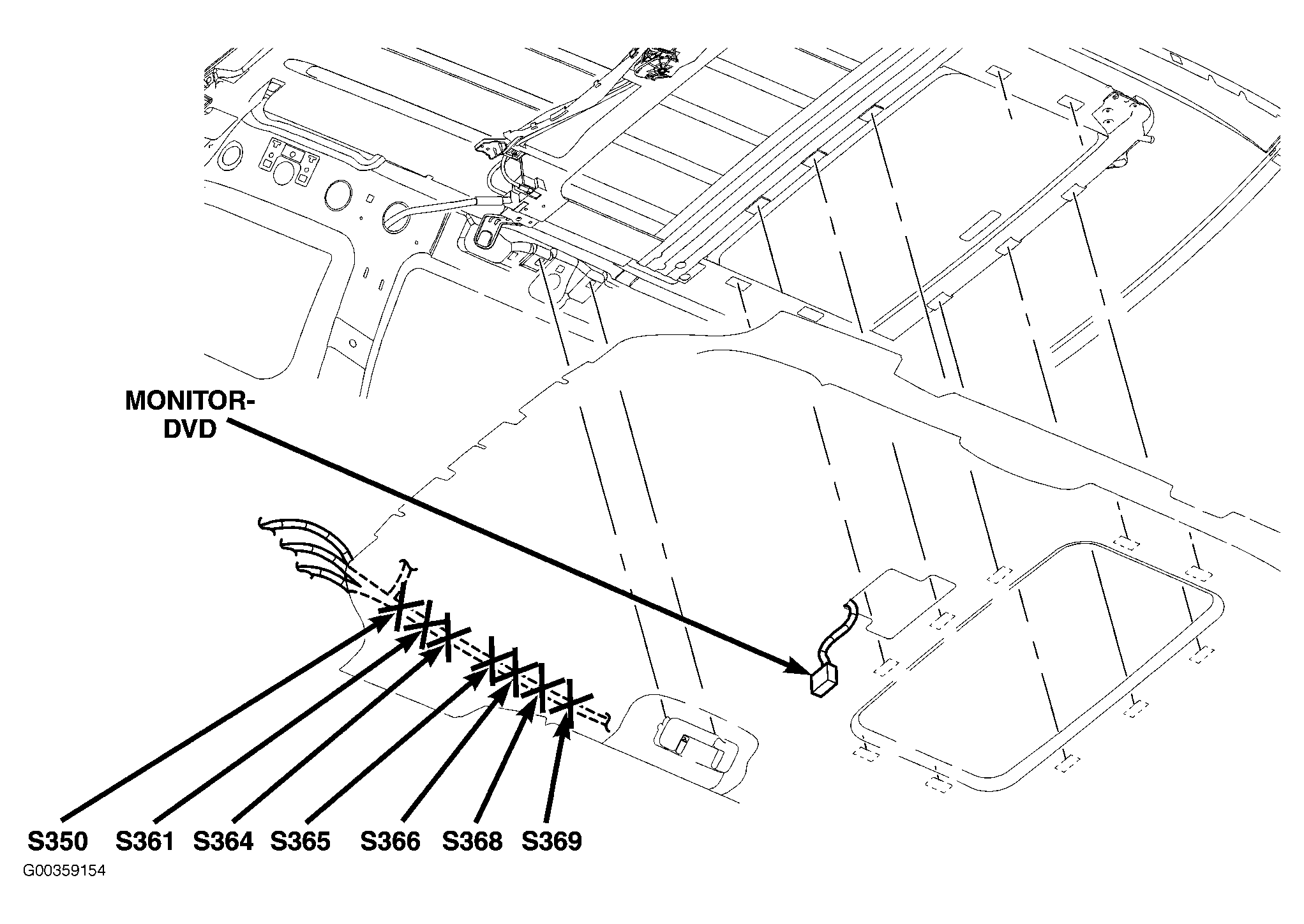

| S361 | Left rear of headliner. See Figure. |
| S362 | Under passenger seat. |
| S364 | Left rear of headliner. See Figure. |
| S365 | Left rear of headliner. See Figure. |
| S366 | Left rear of headliner. See Figure. |
| S368 | Left rear of headliner. See Figure. |
| S369 | Left rear of headliner. See Figure. |
| S370 | Below driver seat. See Figure. |
| S373 | Below driver seat. See Figure. |
| S374 | Below passenger seat. See Figure. |
| S389 | Below left front door opening. See Figure. |
| S390 | Below left front door opening. See Figure. |
| S391 | Below right front door opening. See Figure. |
| S392 | Below right front door opening. See Figure. |
| S393 | In driver's door. |
| S394 | In passenger's door. See Figure. |
| S395 | In passenger's door. See Figure. |
