Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

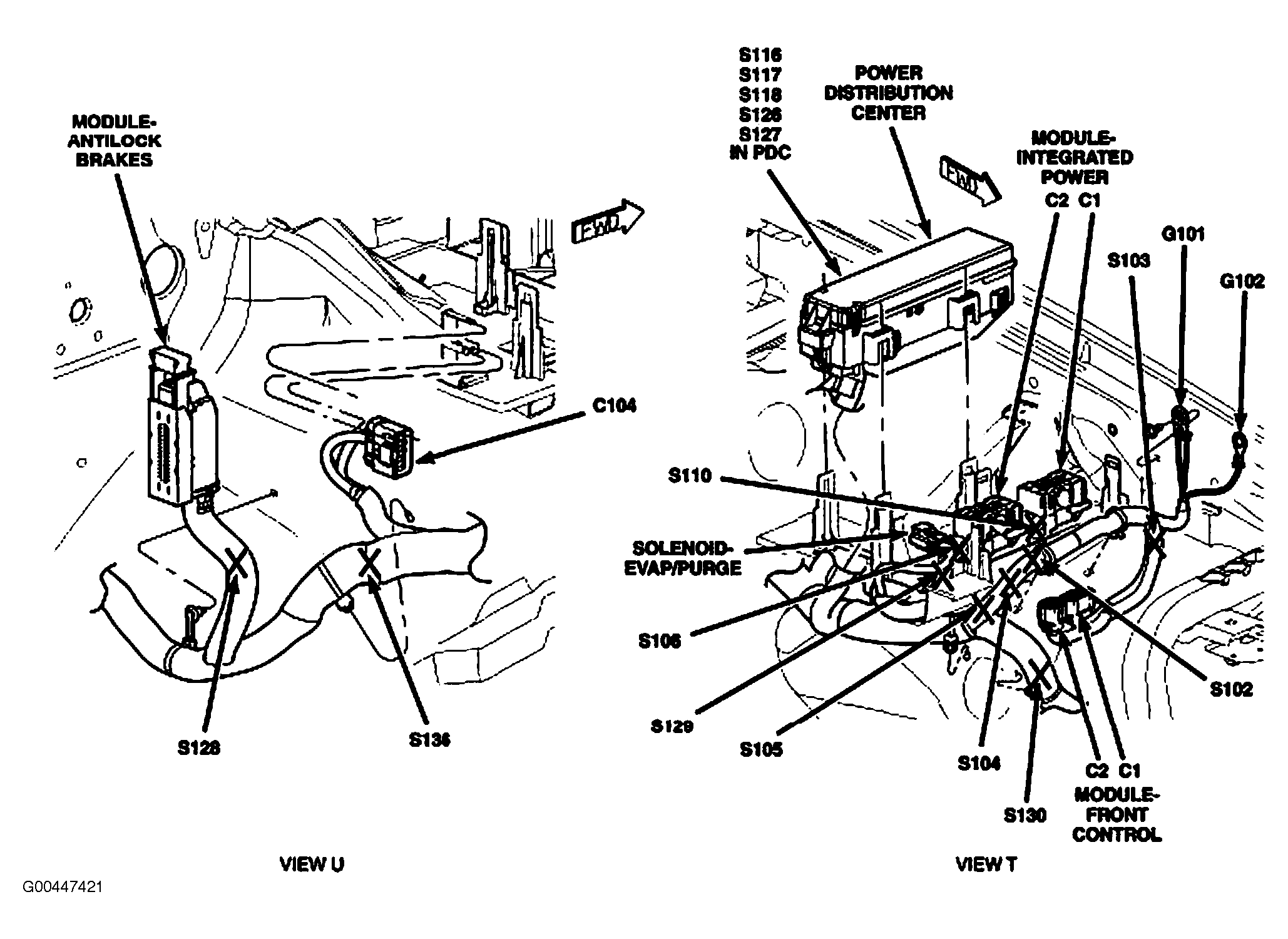

| Antilock Brakes Module | Left rear of engine compartment. See Figure. |
| Condenser Cooling Fan Module | Left front of engine compartment. See Figure. |

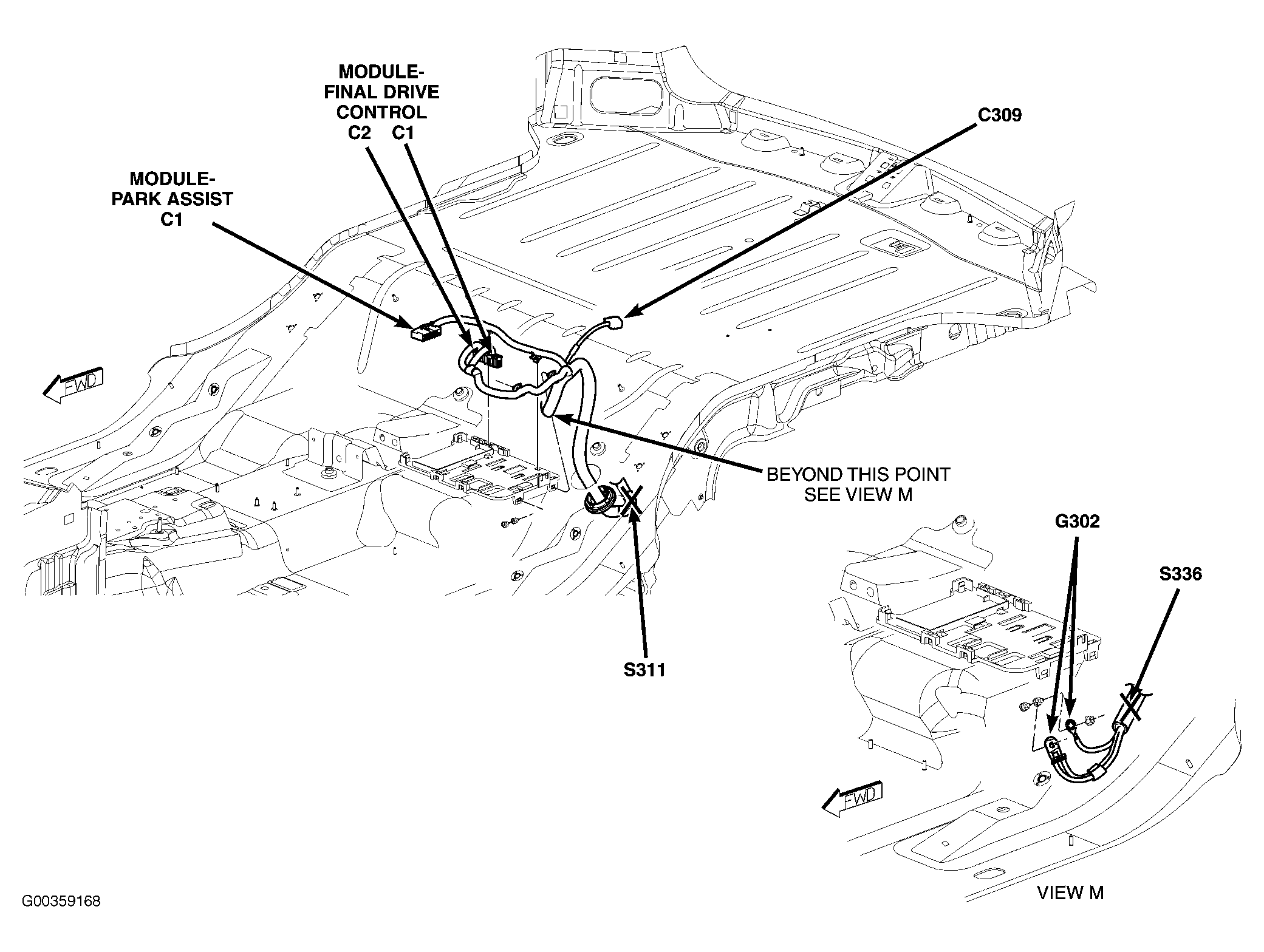

| Final Drive Control Module | Below left rear seat. See Figure. |

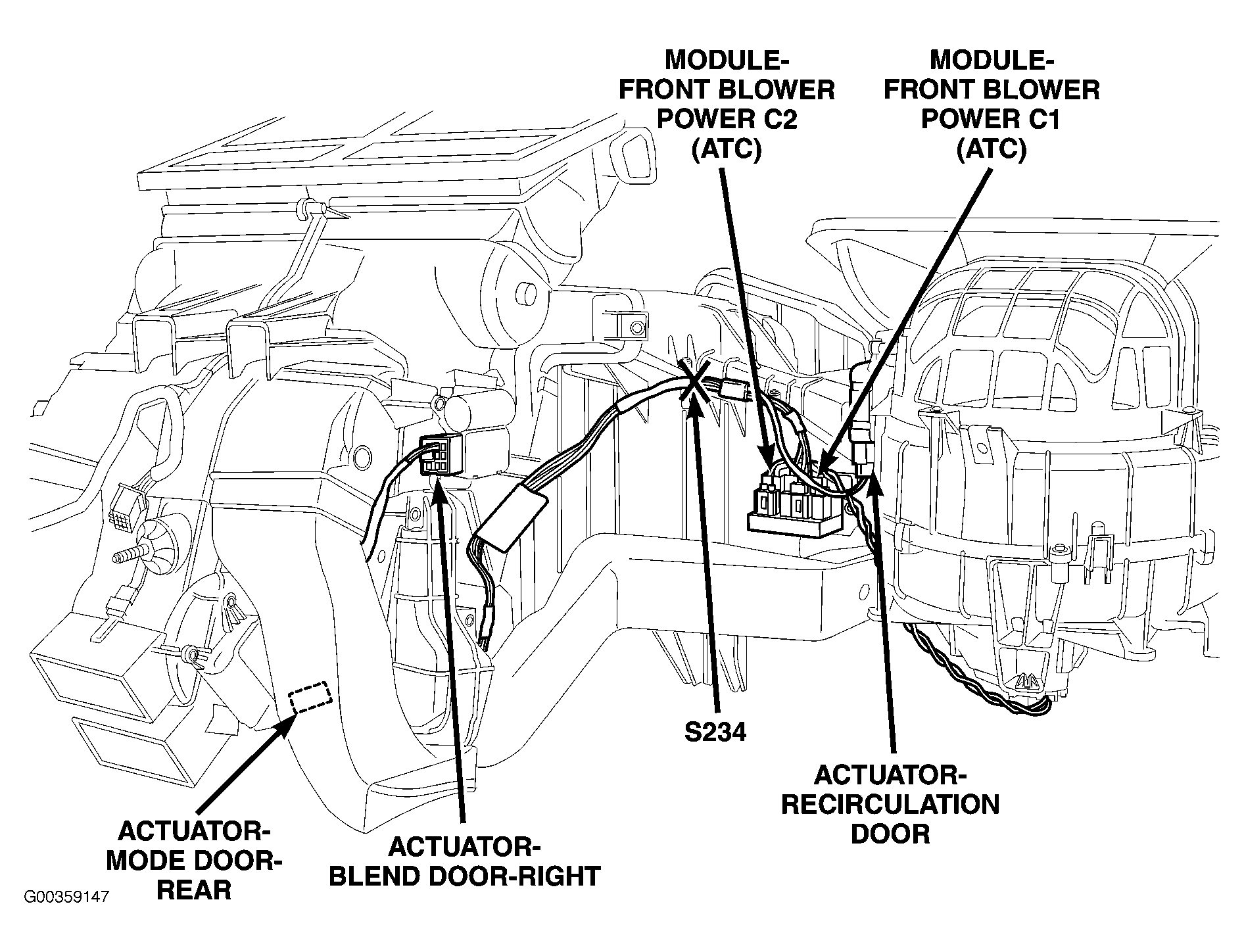

| Front Blower Power Module | Right side of HVAC unit. See Figure. |
| Front Control Module | Left side of engine compartment. See Figure. |
| Fuel Pump Module | On top of fuel tank. |

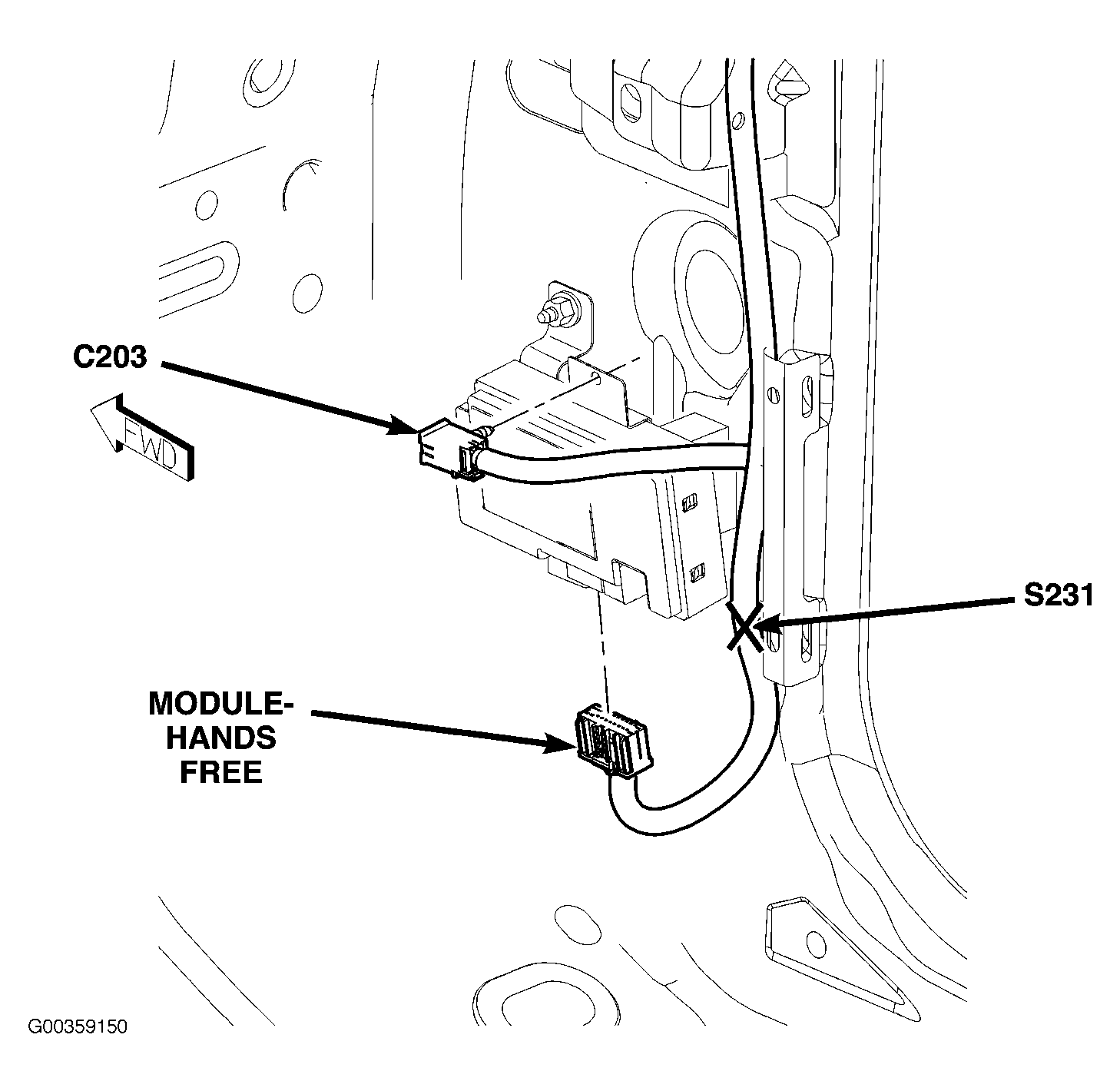

| Hands Free Module | Right kick panel. See Figure. |

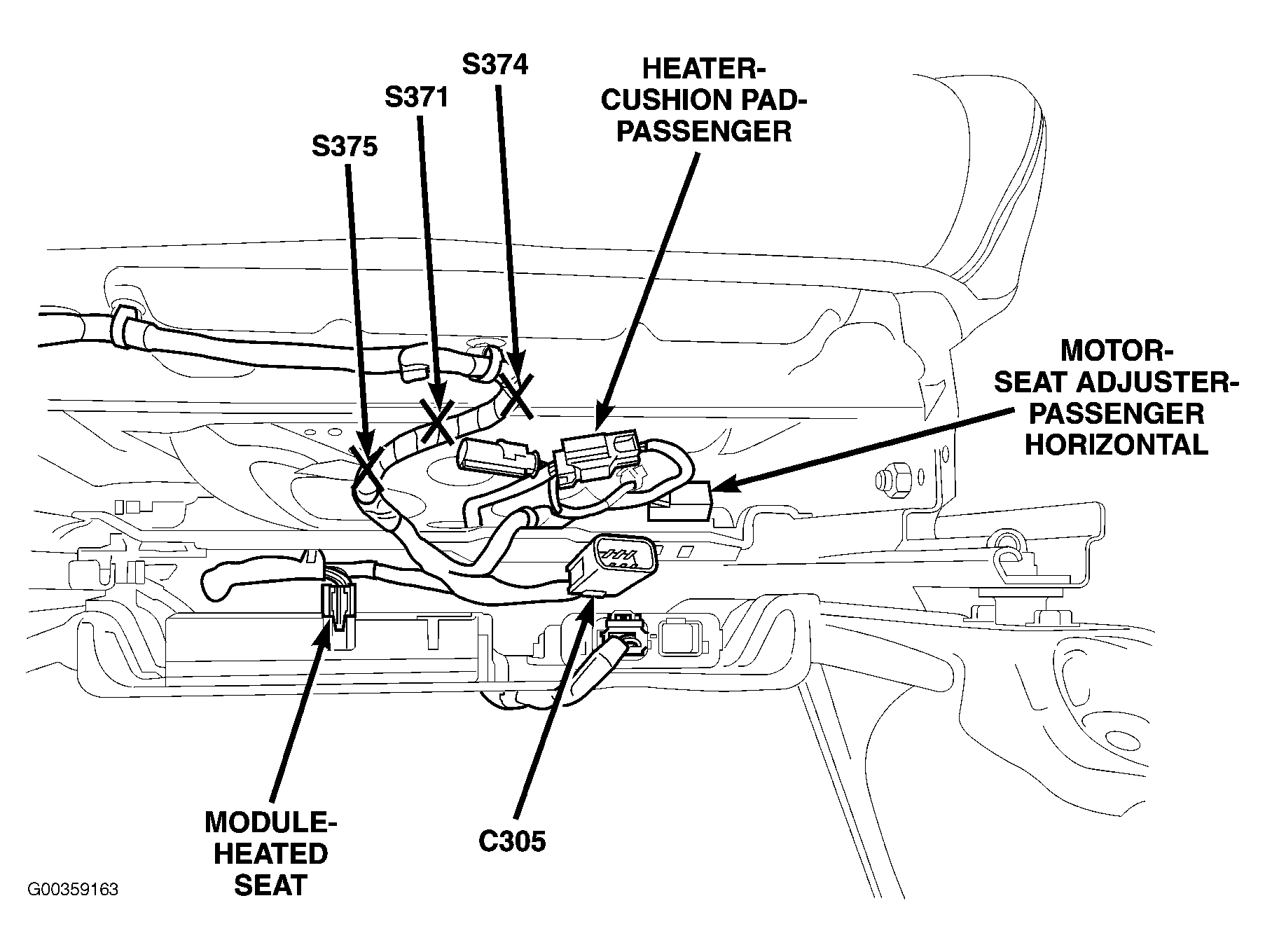

| Heated Seat Module | Below passenger seat. See Figure. |

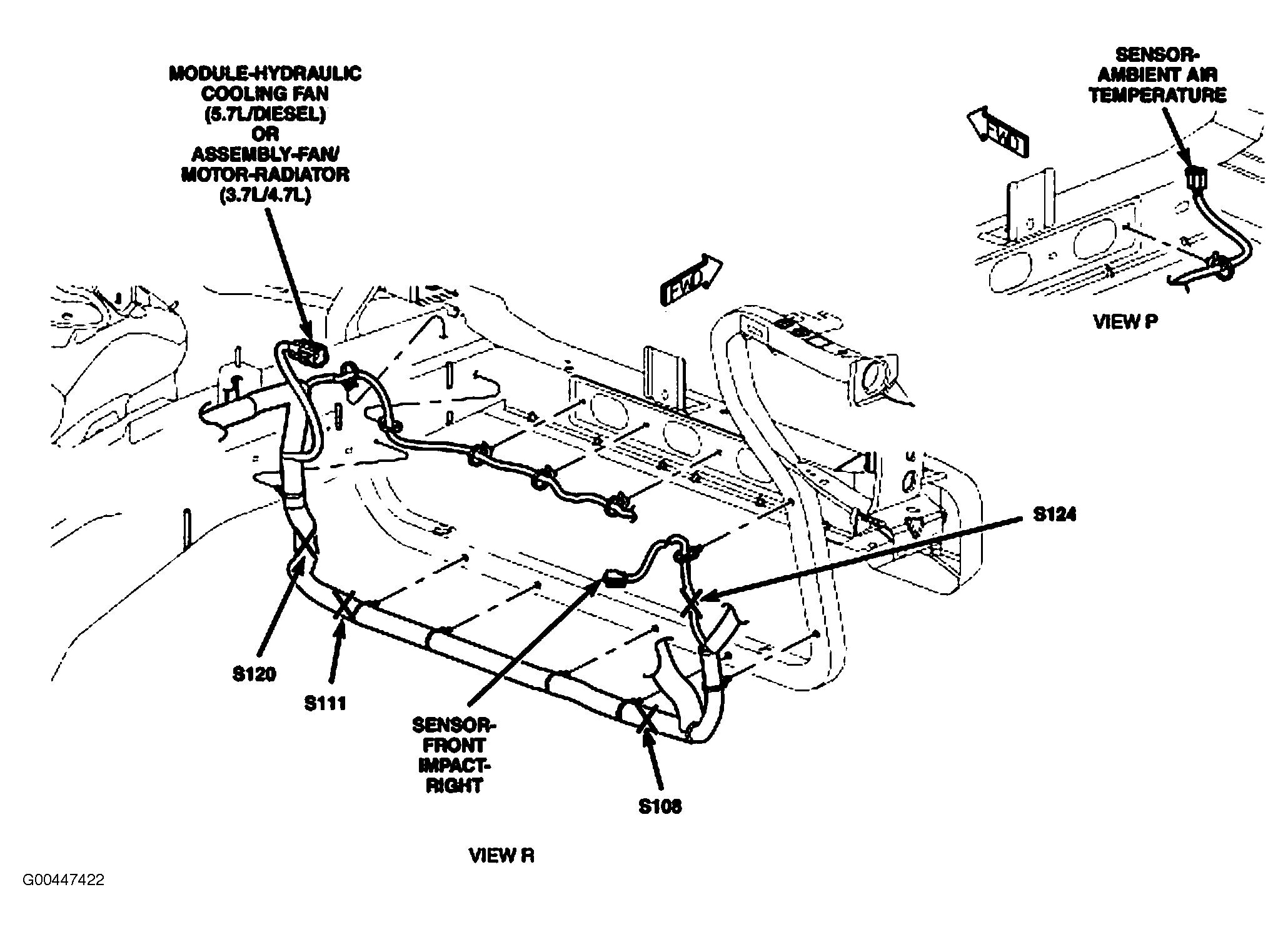

| Hydraulic Cooling Fan Module (HEC) | Front of engine. See Figure. |

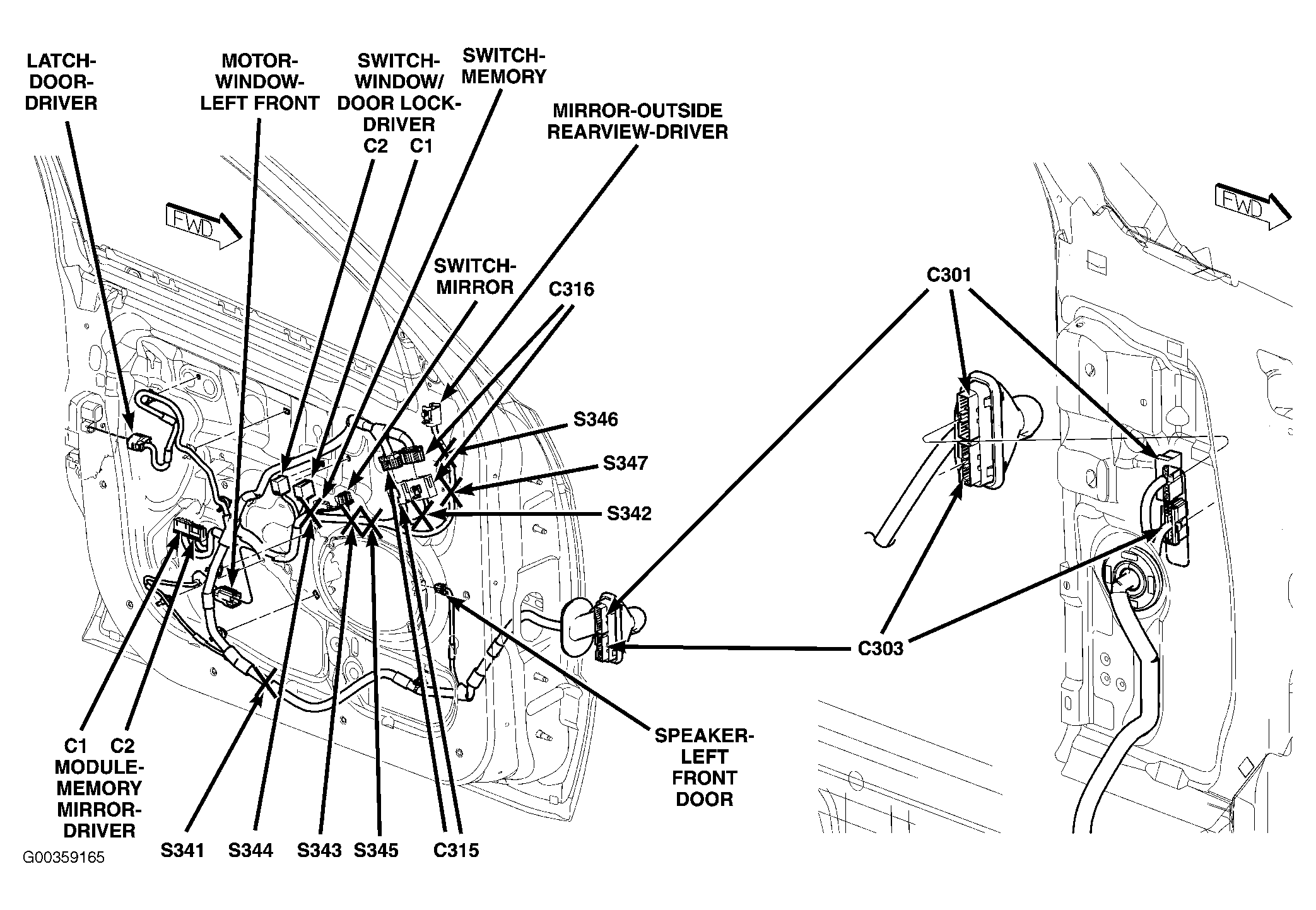

| Memory Mirror Module (Driver) | In driver door. See Figure. |
| Memory Mirror Module (Passenger) | In passenger door. |

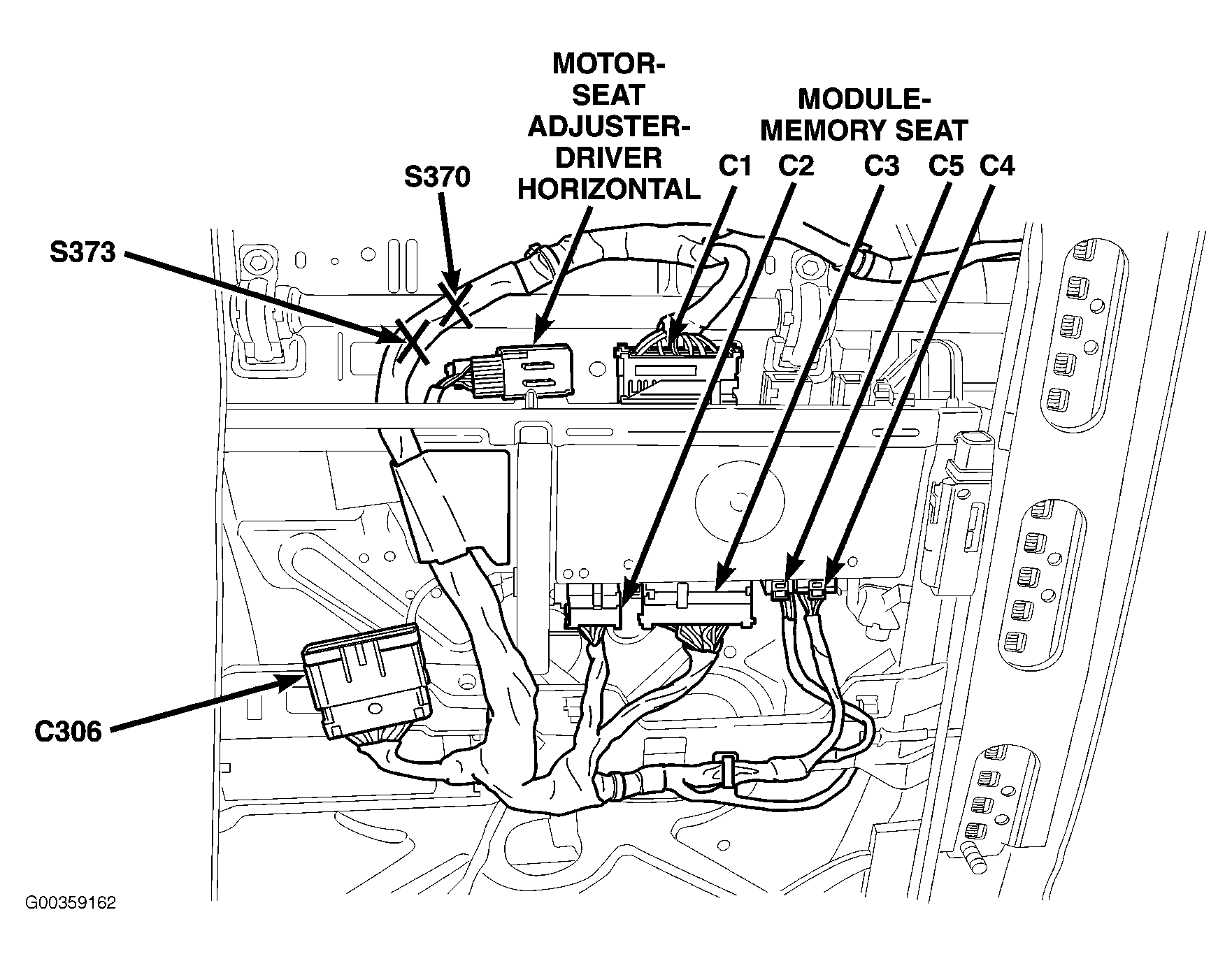

| Memory Seat Module | Below driver seat. See Figure. |
| Occupant Classification Module | Below passenger seat. See Figure. |

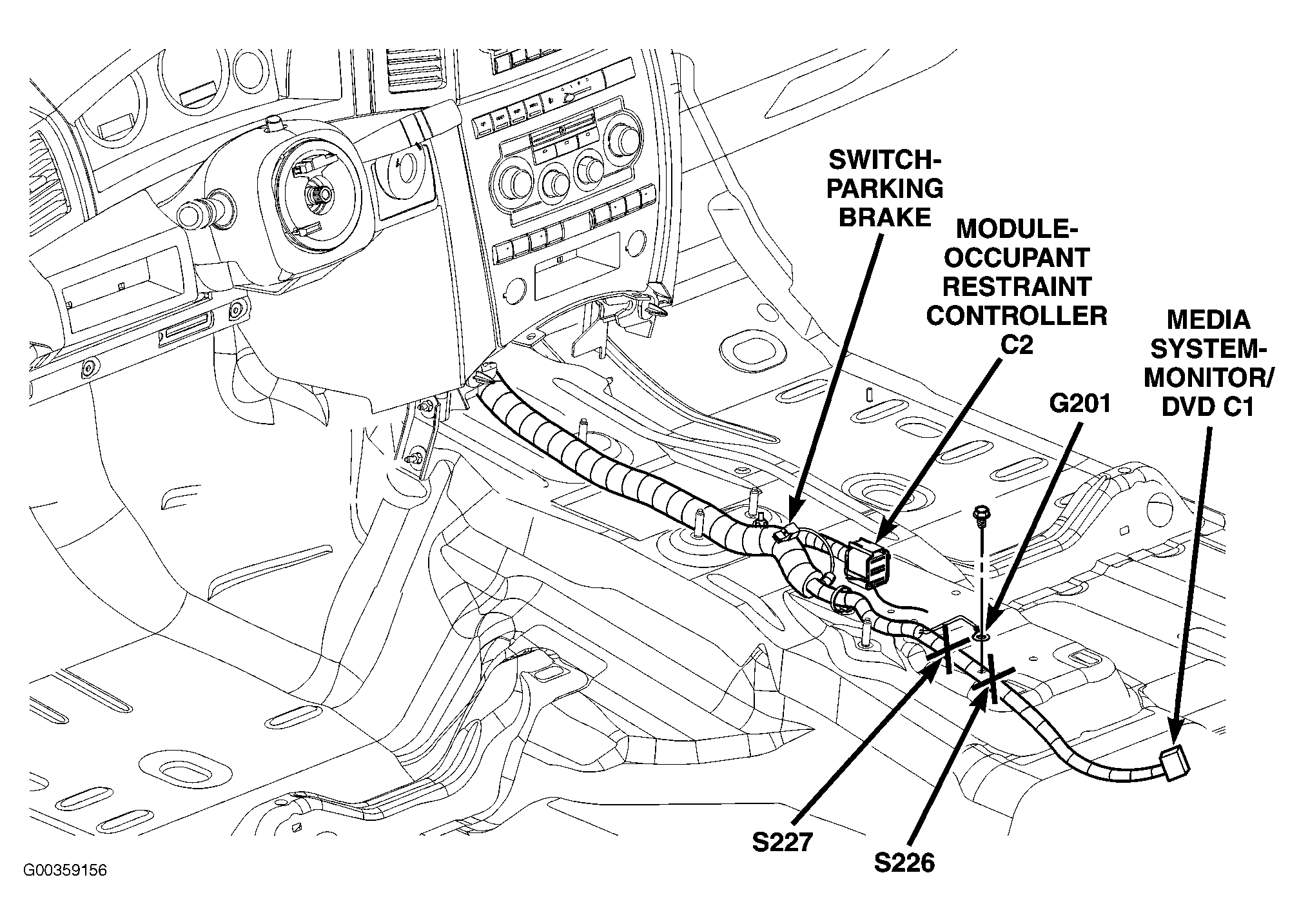

| Occupant Restraint Controller Module | Below center console. See Figure. |
| Park Assist Module | Below left rear seat. See Figure. |

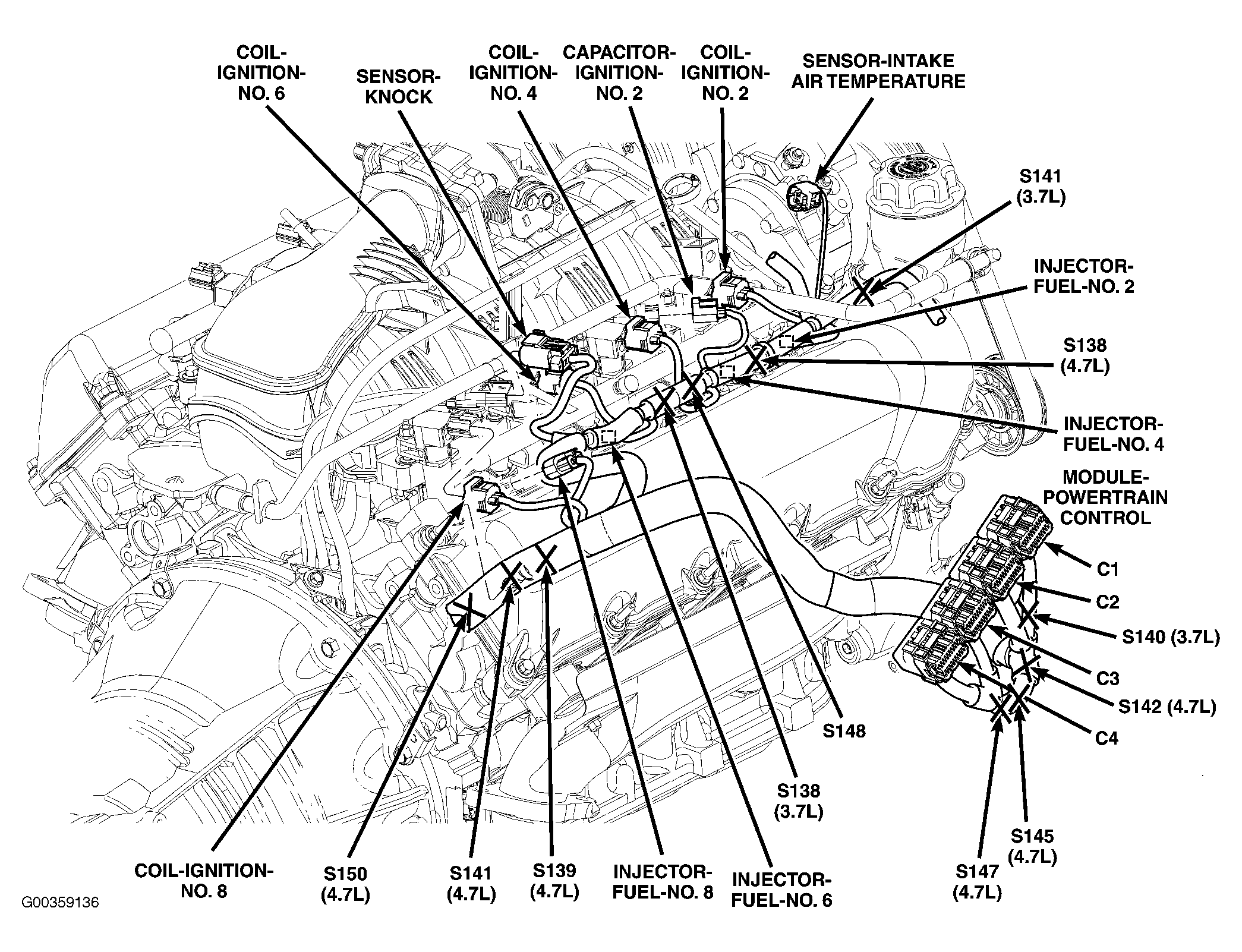

| Powertrain Control Module (3.0L, 3.7L & 4.7L) | Right inner fender, engine compartment. See Figure. |

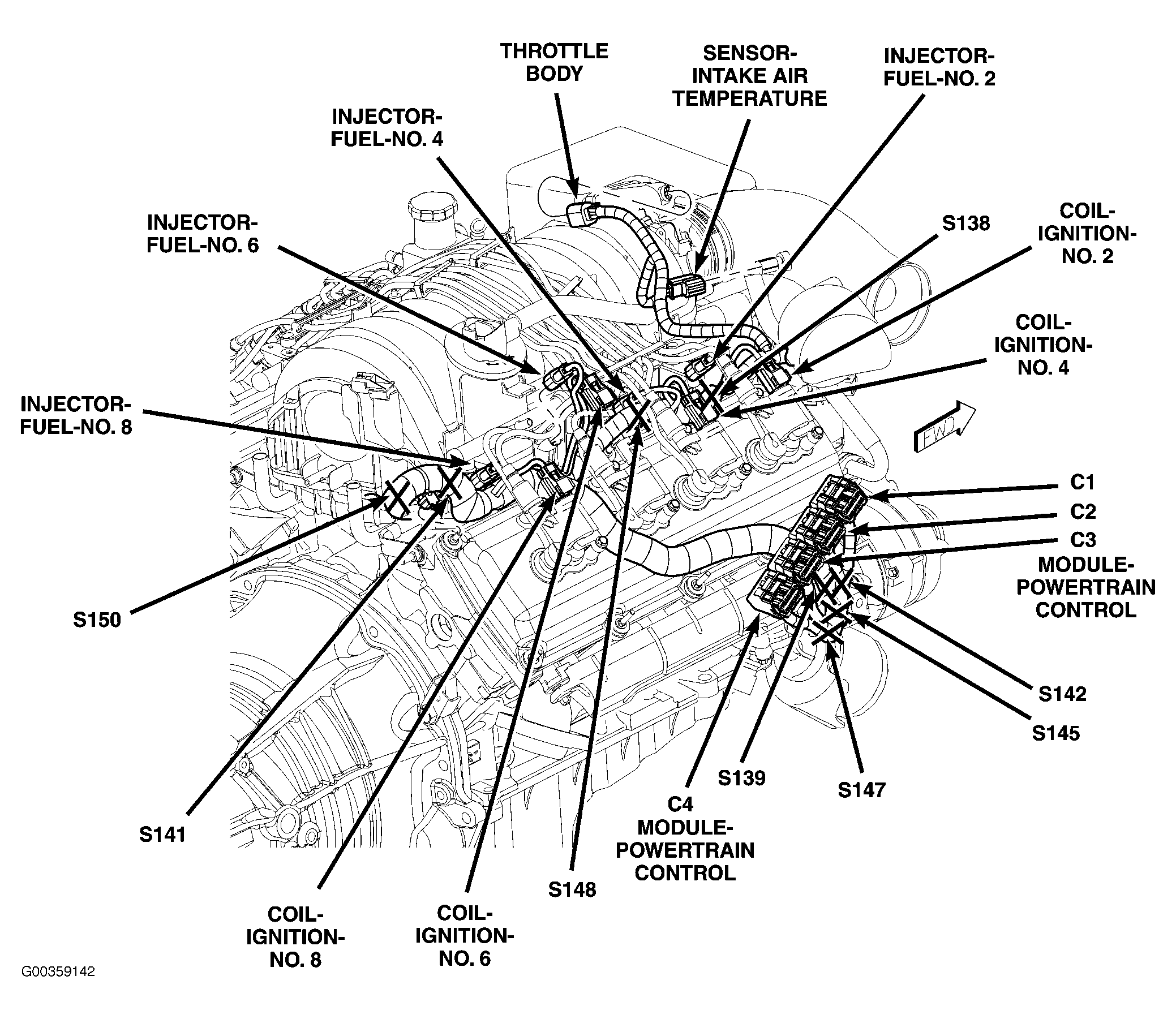

| Powertrain Control Module (5.7L) | Right inner fender, engine compartment. See Figure. |

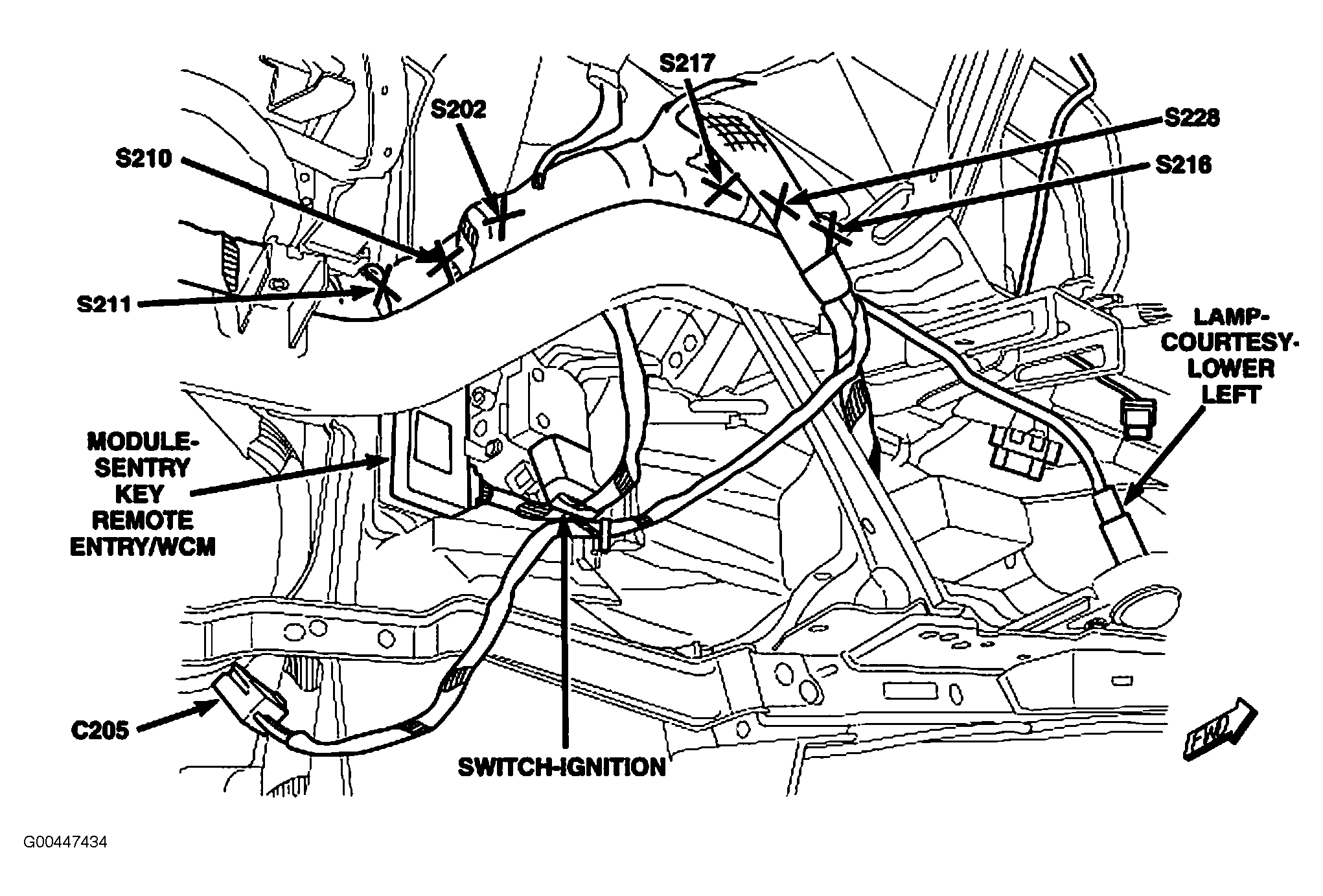

| Sentry Key Remote Entry/WCM Module | Behind left side of dash. See Figure. |

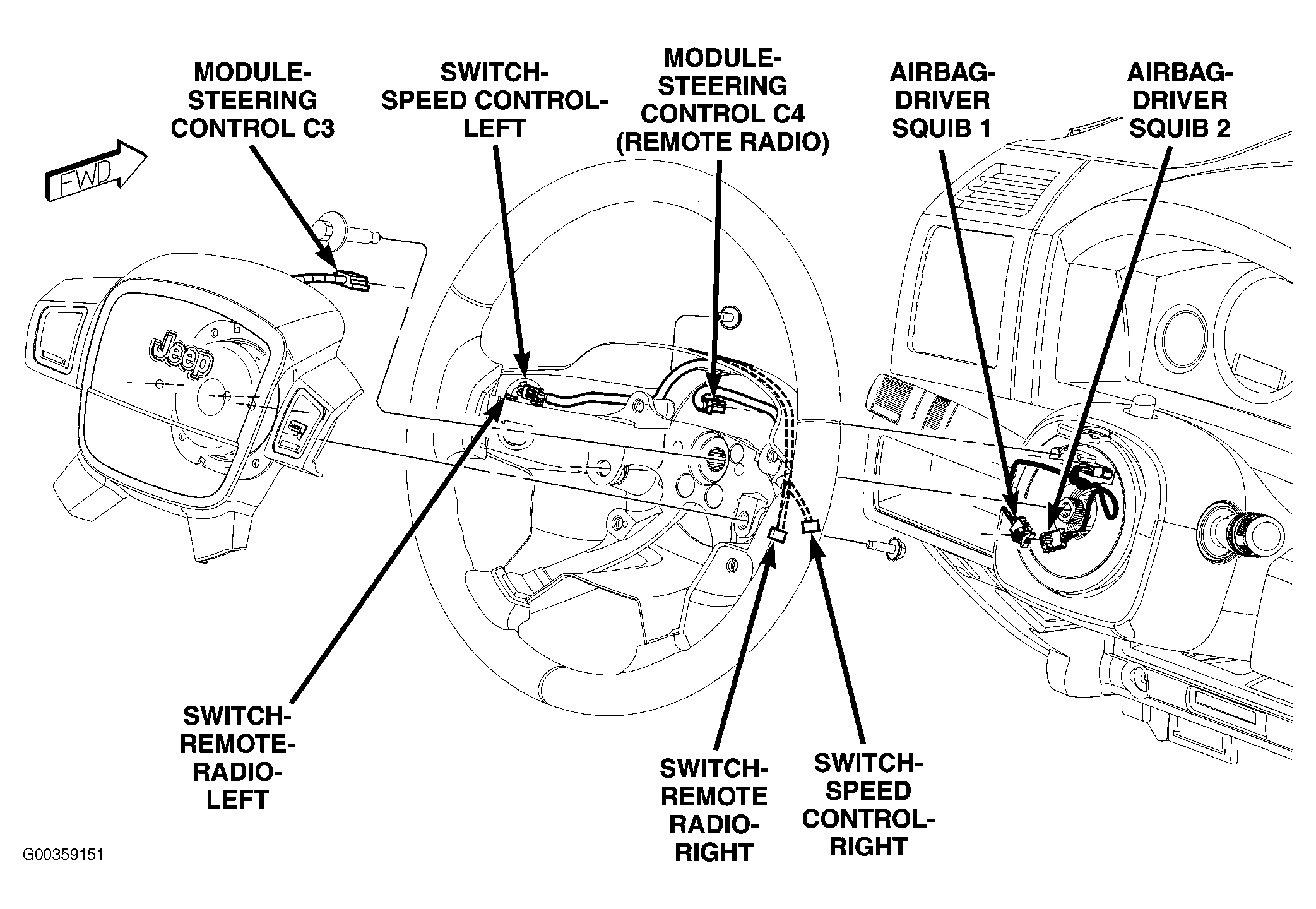

| Steering Control Module | At steering wheel. See Figure. |
| Sunroof Motor/Module | On sunroof assembly. |
| Transmission Control Module | Below left side of dash. |
