Section 18 (6.1L Engine (Service Information)): Installation: Engine

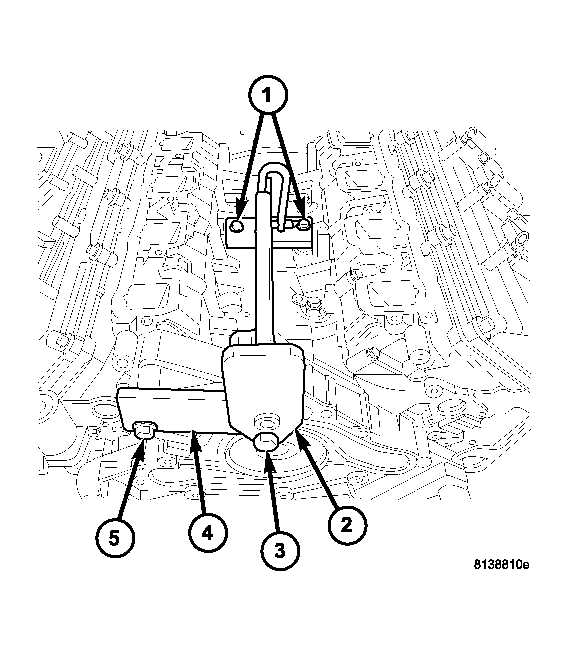

Fig 1: Engine Lift Fixture And Adapter

Courtesy of CHRYSLER LLC

1 - Bolts

2 - Engine Lift Fixture

3 - Adapter Bolt

4 - Adapter

5 - Adapter Nut

1. Install Engine Lift Fixture 8984 and 8984-UPD.
2. Position the engine in the engine compartment.
3. Lower the engine into compartment and align engine with transmission.

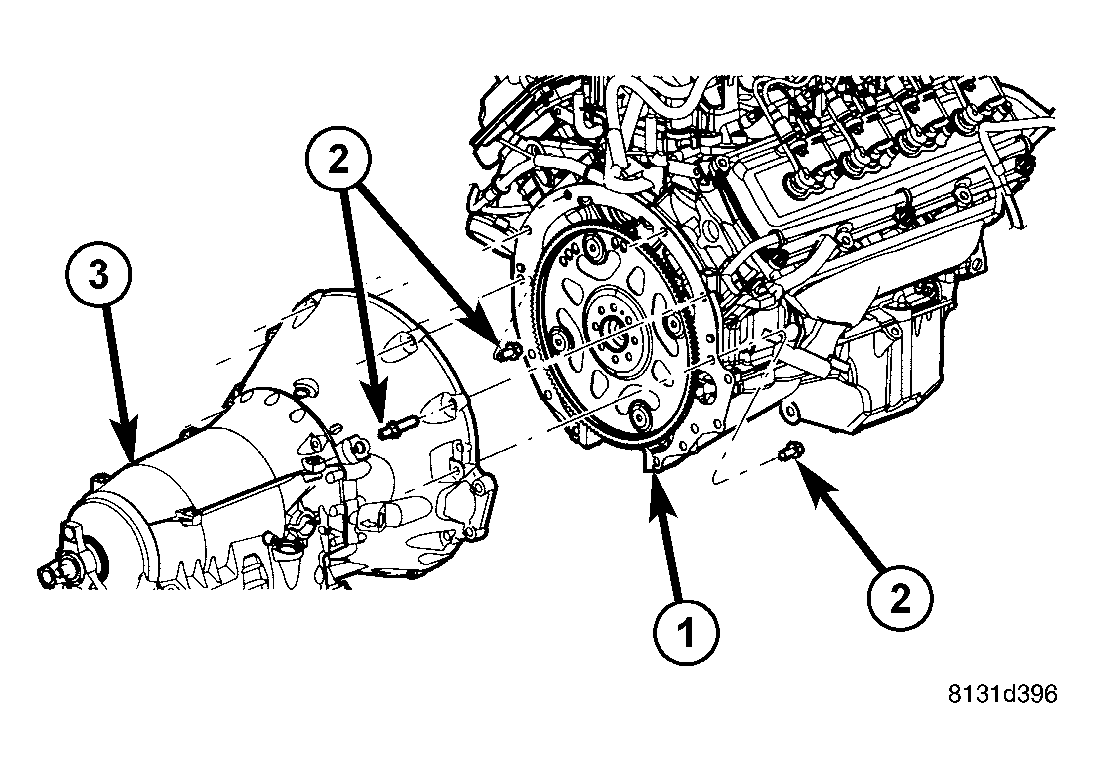

   Fig 2: Remove Transmission to Engine Bolts

   Courtesy of CHRYSLER LLC

   1 - ENGINE

   2 - BOLTS

   3 - TRANSMISSION

4. Mate engine (1) and transmission (3) and install two transmission to engine block mounting bolts (2) finger tight.

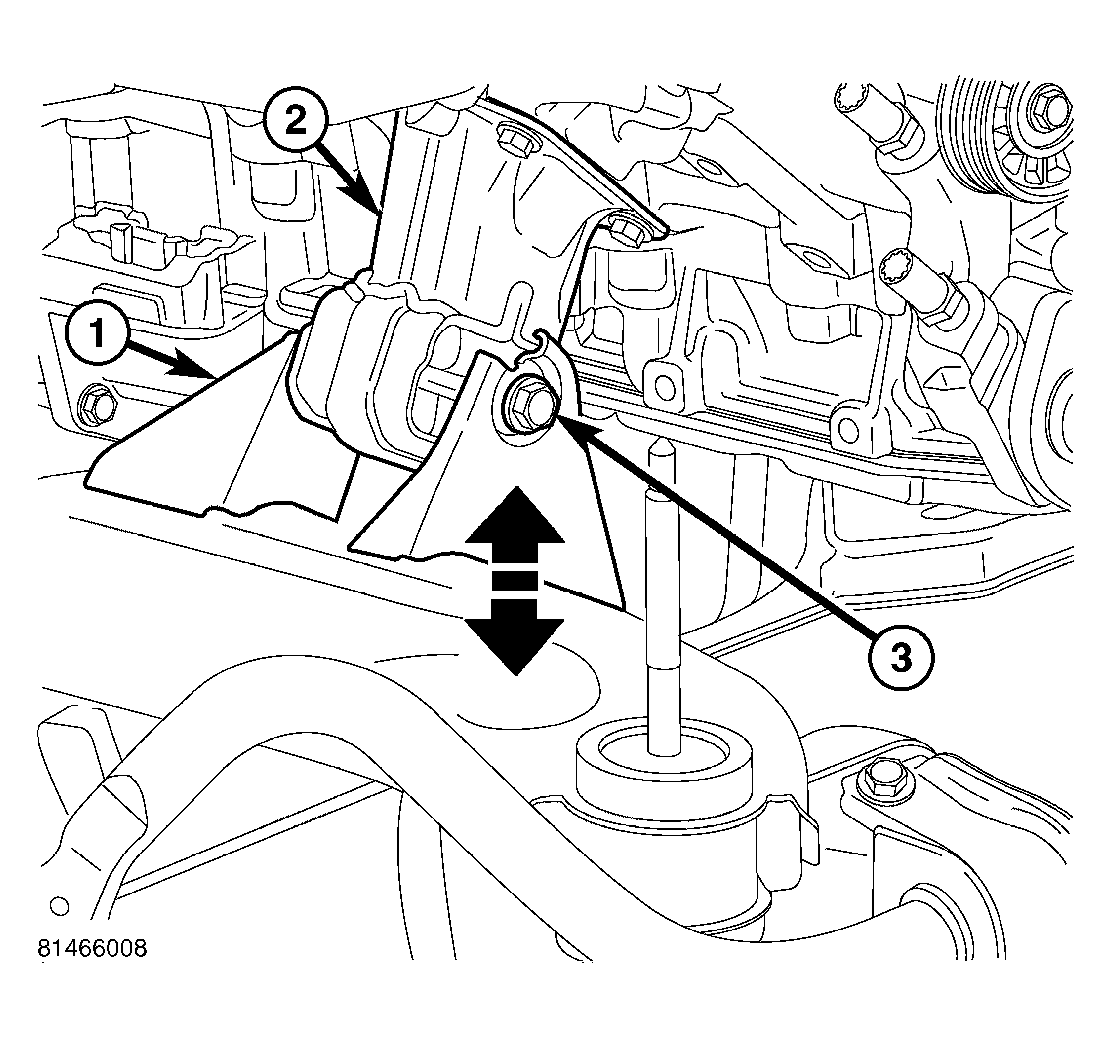

   Fig 3: ENGINE MOUNT BOLT

   Courtesy of CHRYSLER LLC
5. Lower engine assembly until the engine mounts (2) rests in frame perches (1).
   Fig 4: Remove Transmission to Engine Bolts

   Courtesy of CHRYSLER LLC

   1 - ENGINE

   2 - BOLTS

   3 - TRANSMISSION

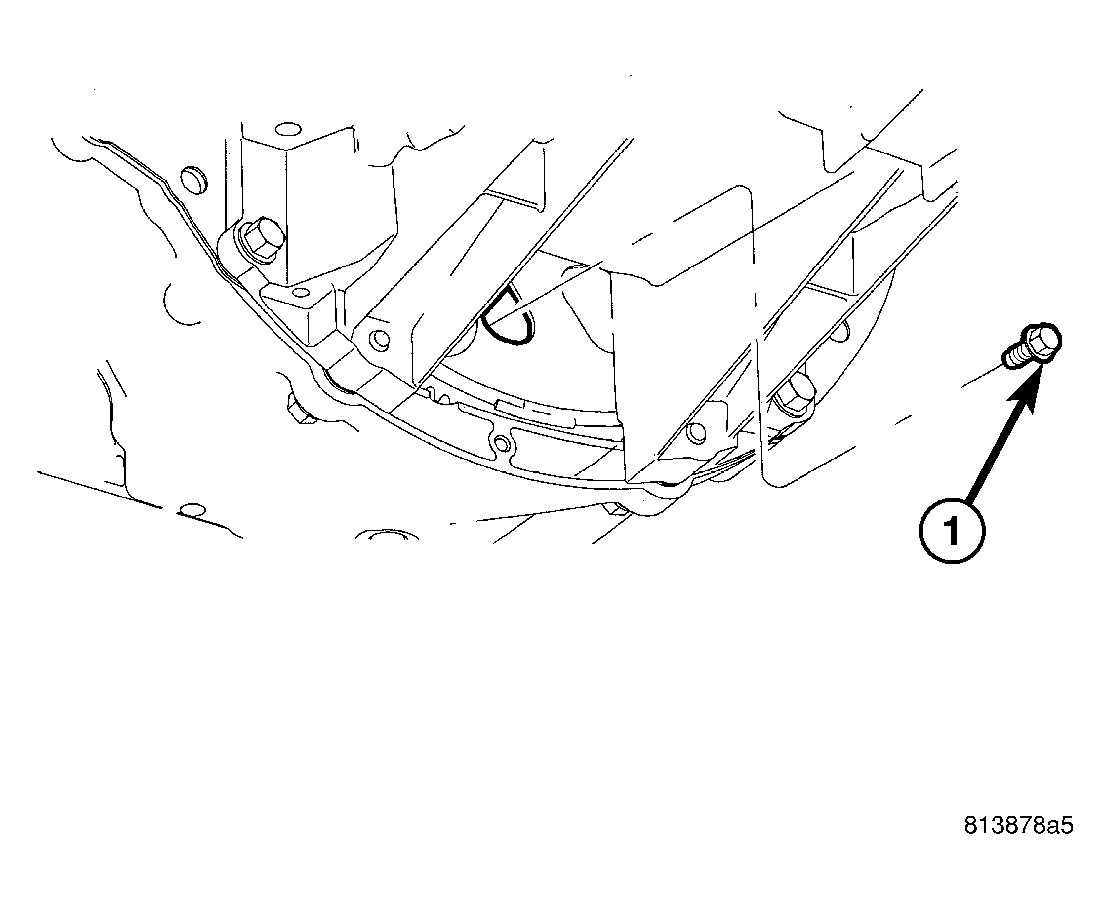

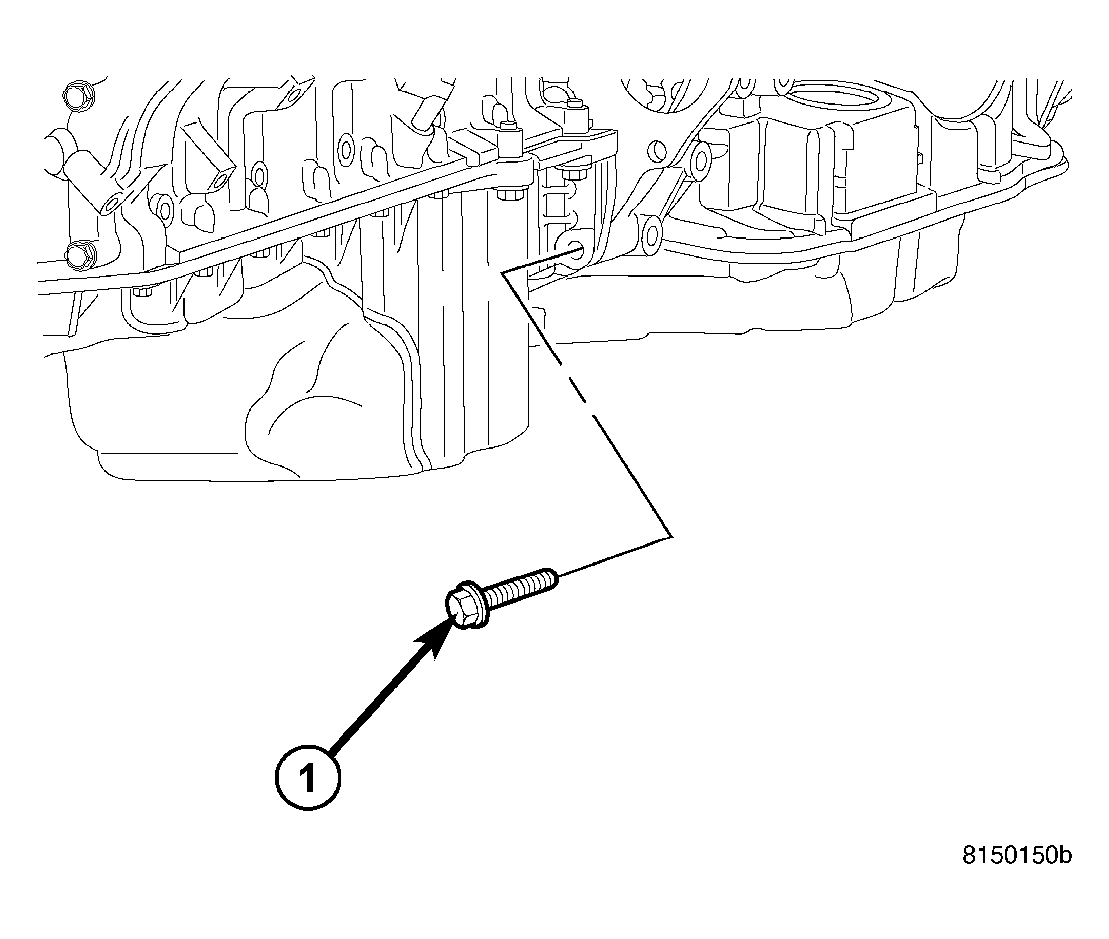

   Fig 5: Removing/Installing Oil Pan To Transmission Bolts

   Courtesy of CHRYSLER LLC

   1 - BOLTS

6. Install remaining transmission to engine block mounting bolts (2) and the oil pan to transmission bolts (1) and tighten.
   Fig 6: ENGINE MOUNT BOLT

   Courtesy of CHRYSLER LLC
7. Install and tighten engine mount to frame bolts (3) and nuts.
   Fig 7: Removing/Installing Torque Converter Bolts

   Courtesy of CHRYSLER LLC

   1 - Bolts

8. Install drive plate to torque converter bolts (1).
9. Install the structural dust cover (1).

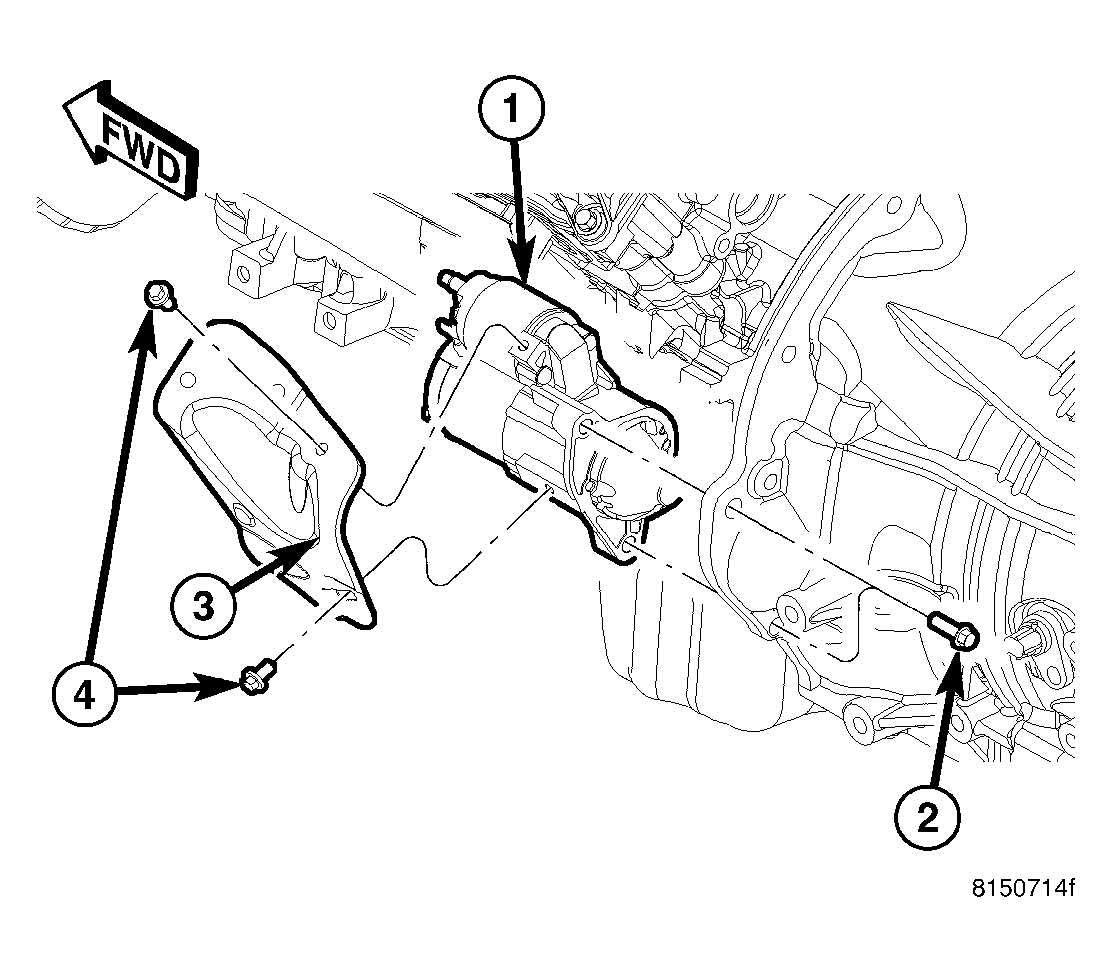

   Fig 8: Removing/Installing Starter

   Courtesy of CHRYSLER LLC
10. Install the starter (1) and connect the starter wires. Refer to INSTALLATION .
11. Install the exhaust pipe to manifold.
12. Lower the vehicle.
    Fig 9: Engine Lift Fixture And Adapter

    Courtesy of CHRYSLER LLC

    1 - Bolts

    2 - Engine Lift Fixture

    3 - Adapter Bolt

    4 - Adapter

    5 - Adapter Nut

13. Remove Engine Lift Fixture 8984 (2), and Adapter 8984-UPD.

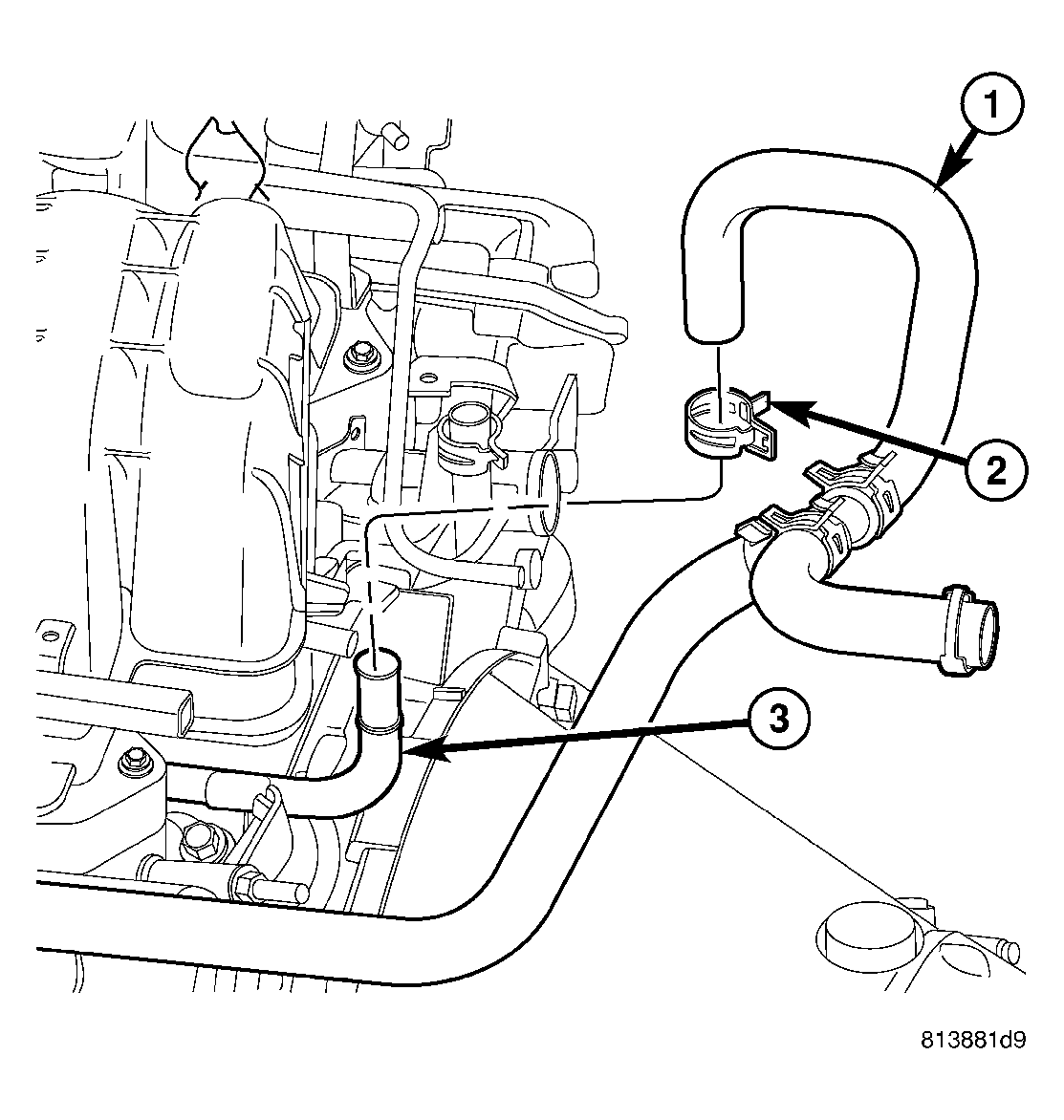

    Fig 10: Heater Hose Return

    Courtesy of CHRYSLER LLC

    1 - Heater Hose

    2 - Clamp

    3 - Tube

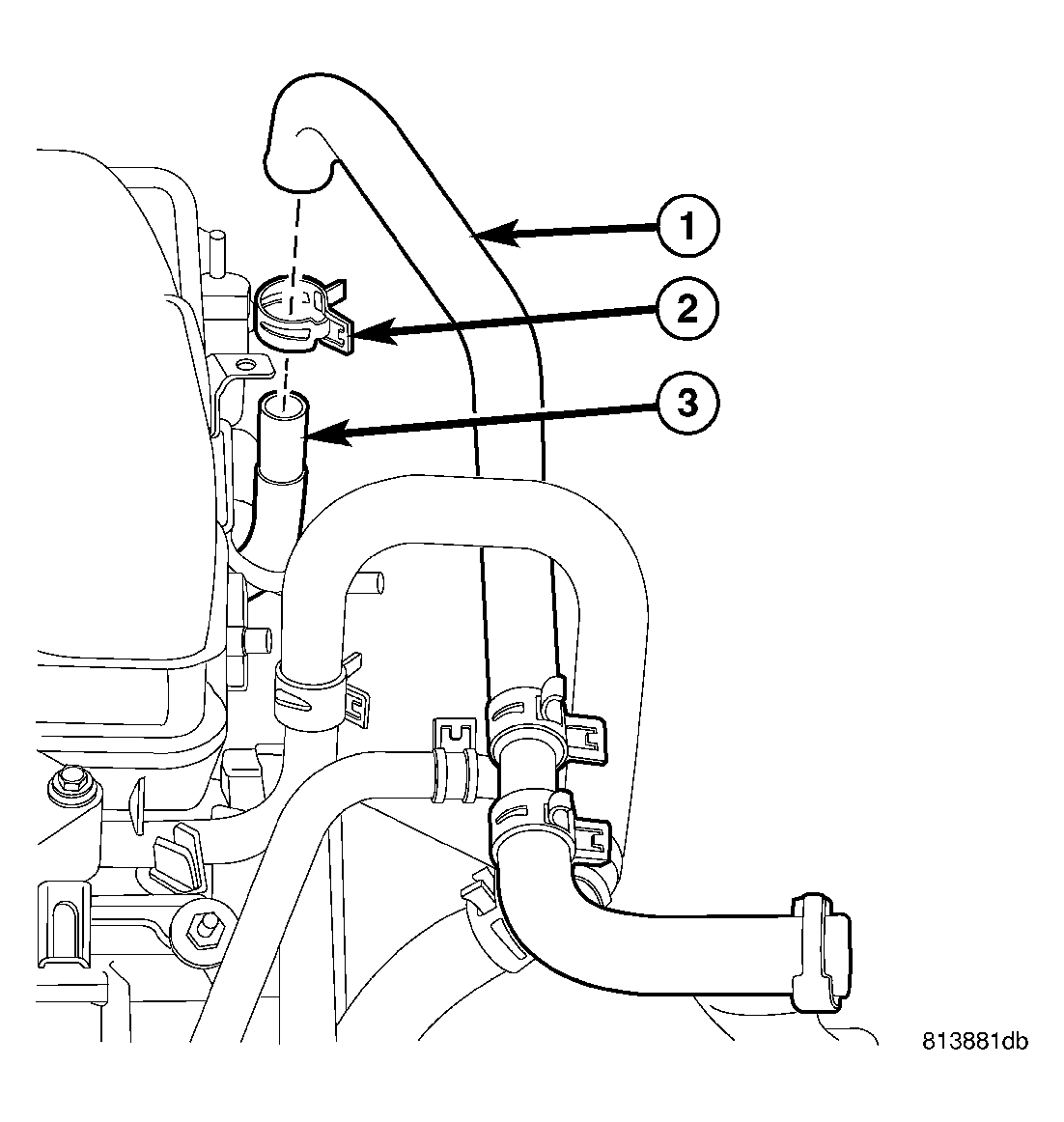

    Fig 11: Heater Hose Supply

    Courtesy of CHRYSLER LLC

    1 - Heater Hose

    2 - Clamp

    3 - Tube

14. Connect the fuel supply line. Refer to STANDARD PROCEDURE .
15. Reinstall the power steering pump.
16. Connect the heater hoses (1).

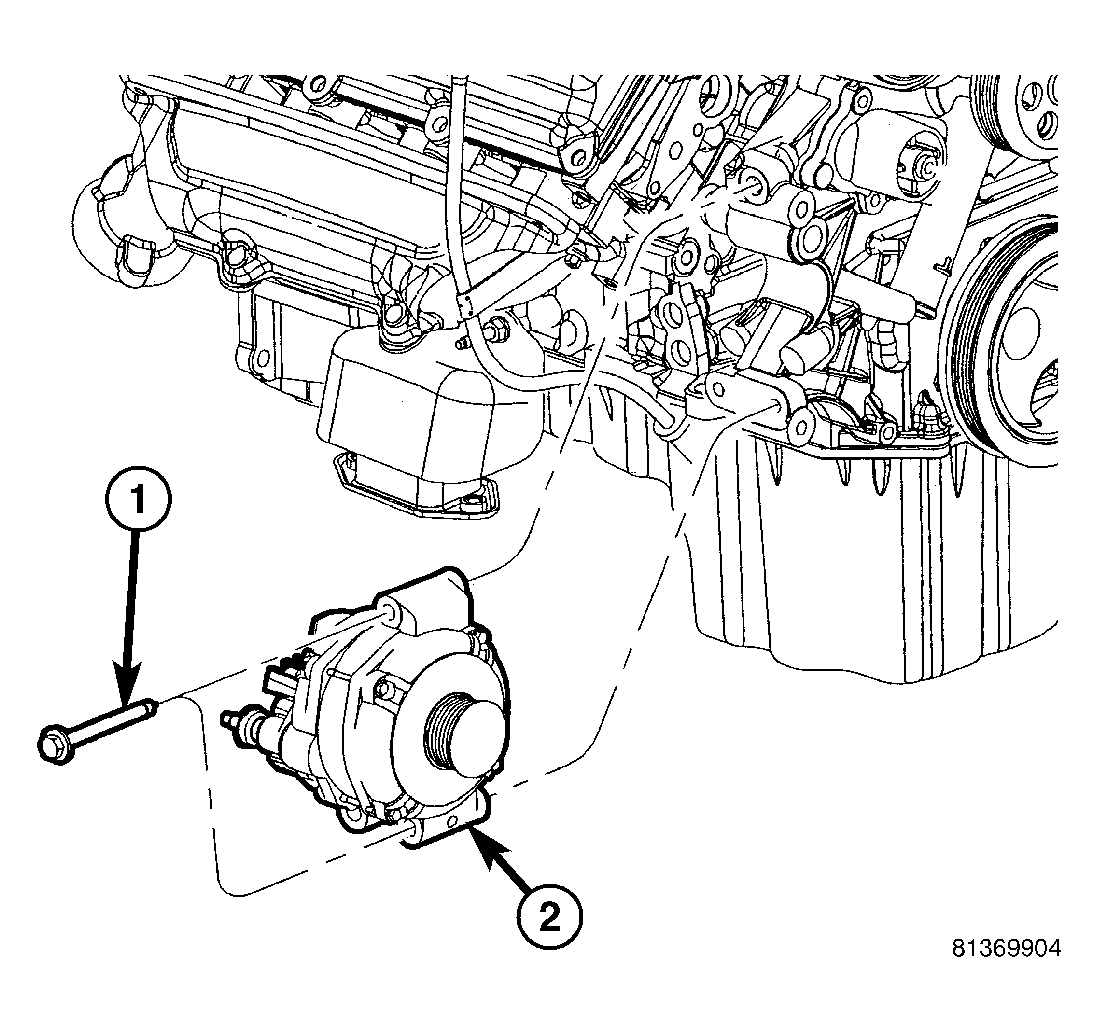

    Fig 12: Removing/Installing Generator - 5.7L

    Courtesy of CHRYSLER LLC
17. Reconnect the ground wires to the rear of each cylinder head.
18. Install the intake manifold. Refer to INSTALLATION .
19. Install the generator (2), and wire connections. Refer to INSTALLATION .

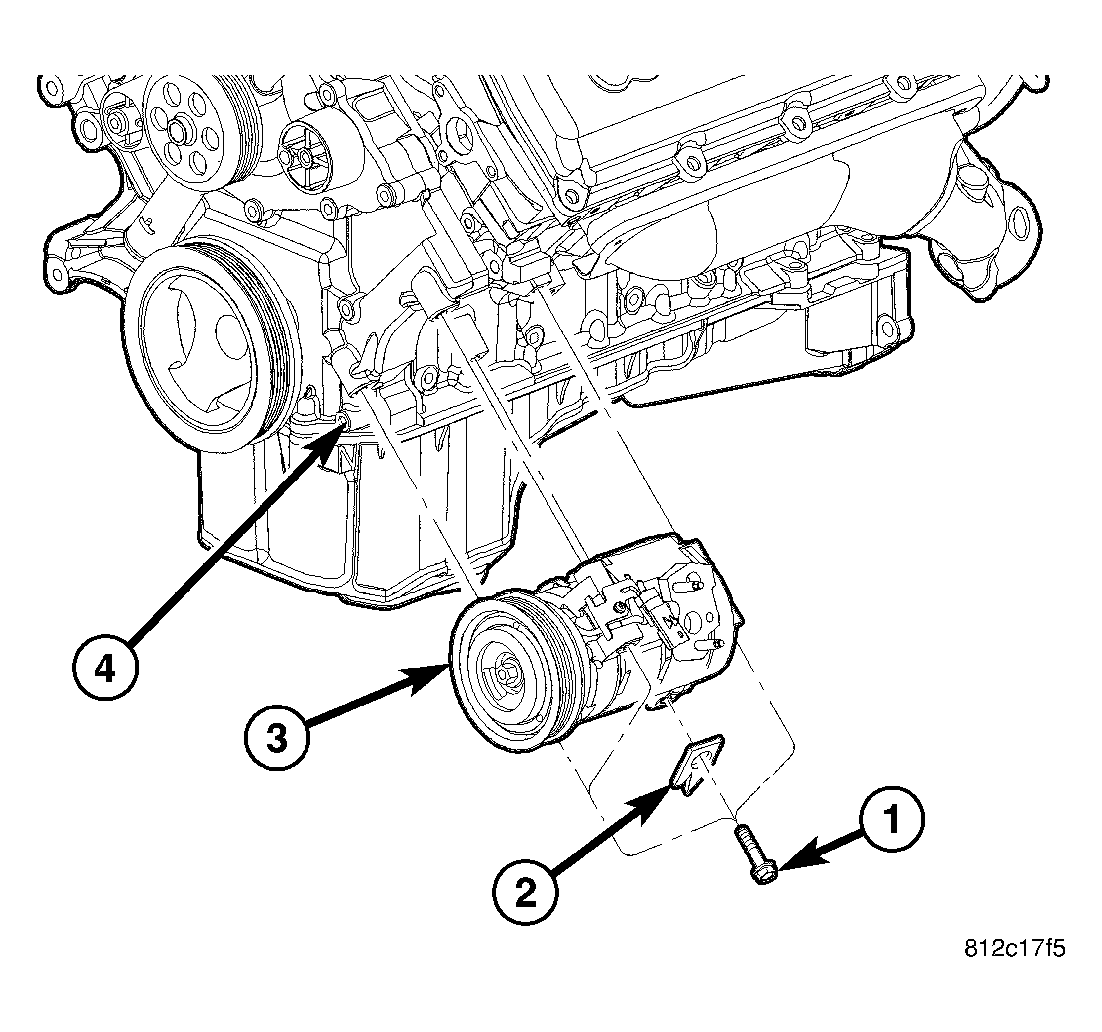

    Fig 13: Removing/Installing A/C Compressor

    Courtesy of CHRYSLER LLC
20. Install the A/C Compressor (3). Refer to INSTALLATION .

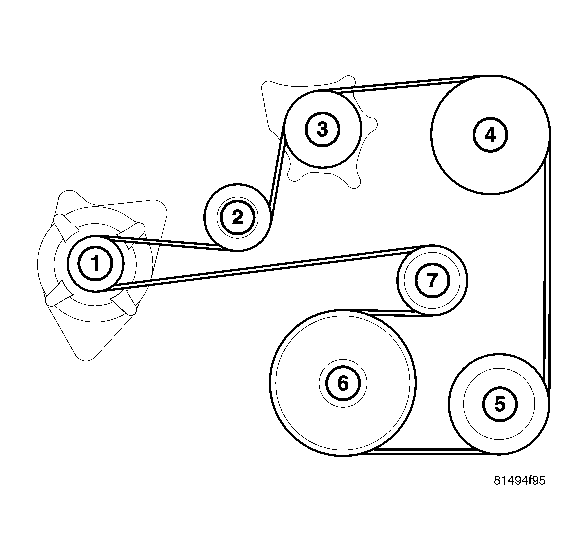

    Fig 14: Identifying Accessory Drive Belt

    Courtesy of CHRYSLER LLC

    1 - GENERATOR

    2 - IDLER PULLEY

    3 - WATER PUMP

    4 - P/S PUMP

    5 - A/C COMPRESSOR

    6 - CRANKSHAFT

    7 - BELT TENSIONER

21. Install the accessory drive belt. Refer to INSTALLATION .
22. Install the radiator fan shroud. Refer to INSTALLATION .
23. Connect the radiator lower hose.
24. Connect the transmission oil cooler lines to the radiator.
25. Connect the radiator upper hose.

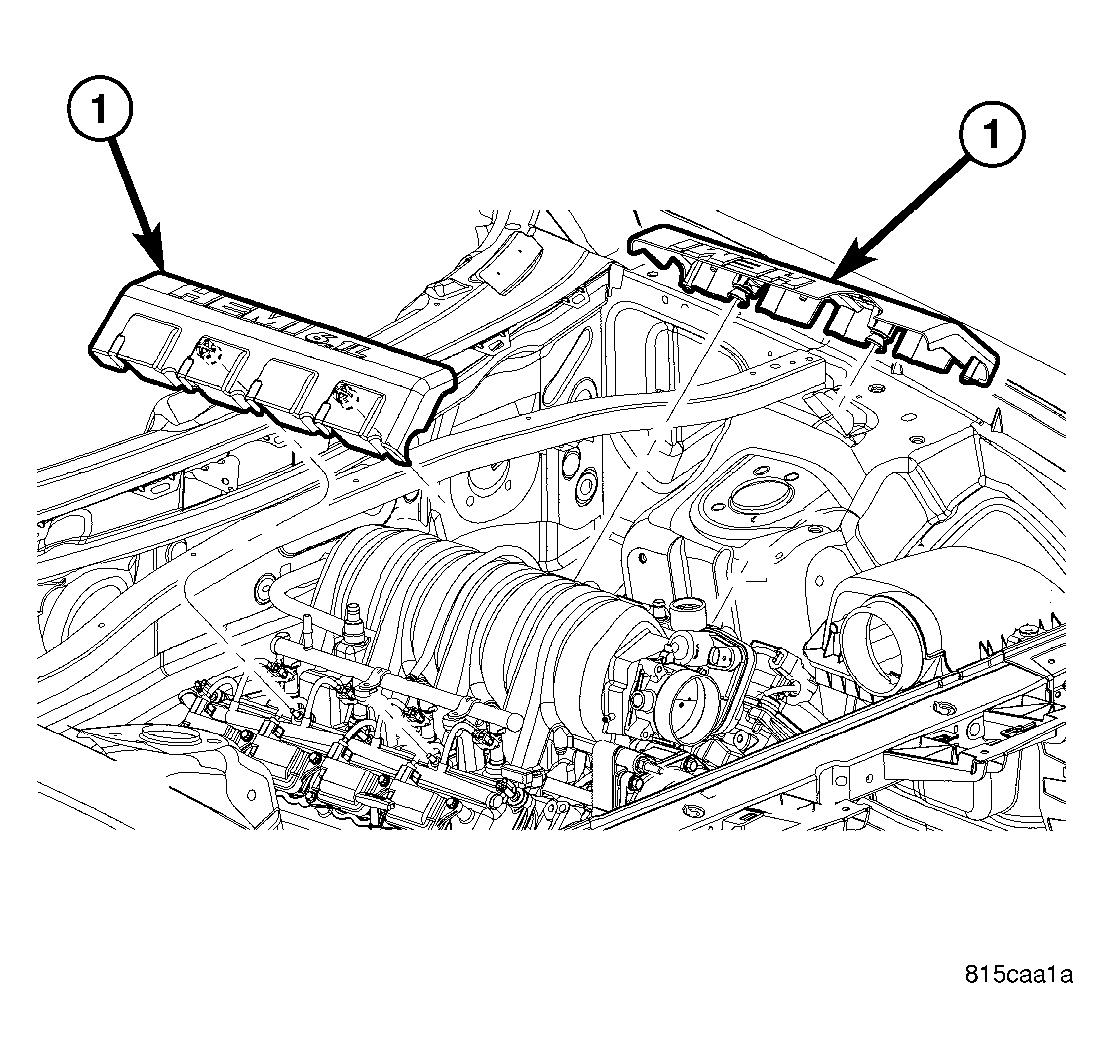

    Fig 15: Removing/Installing Engine Covers

    Courtesy of CHRYSLER LLC
26. Install the air cleaner resonator and duct work.
27. Add engine oil to crankcase. Refer to SPECIFICATIONS .
28. Fill the cooling system. Refer to STANDARD PROCEDURE .
29. Install the engine cover (1).

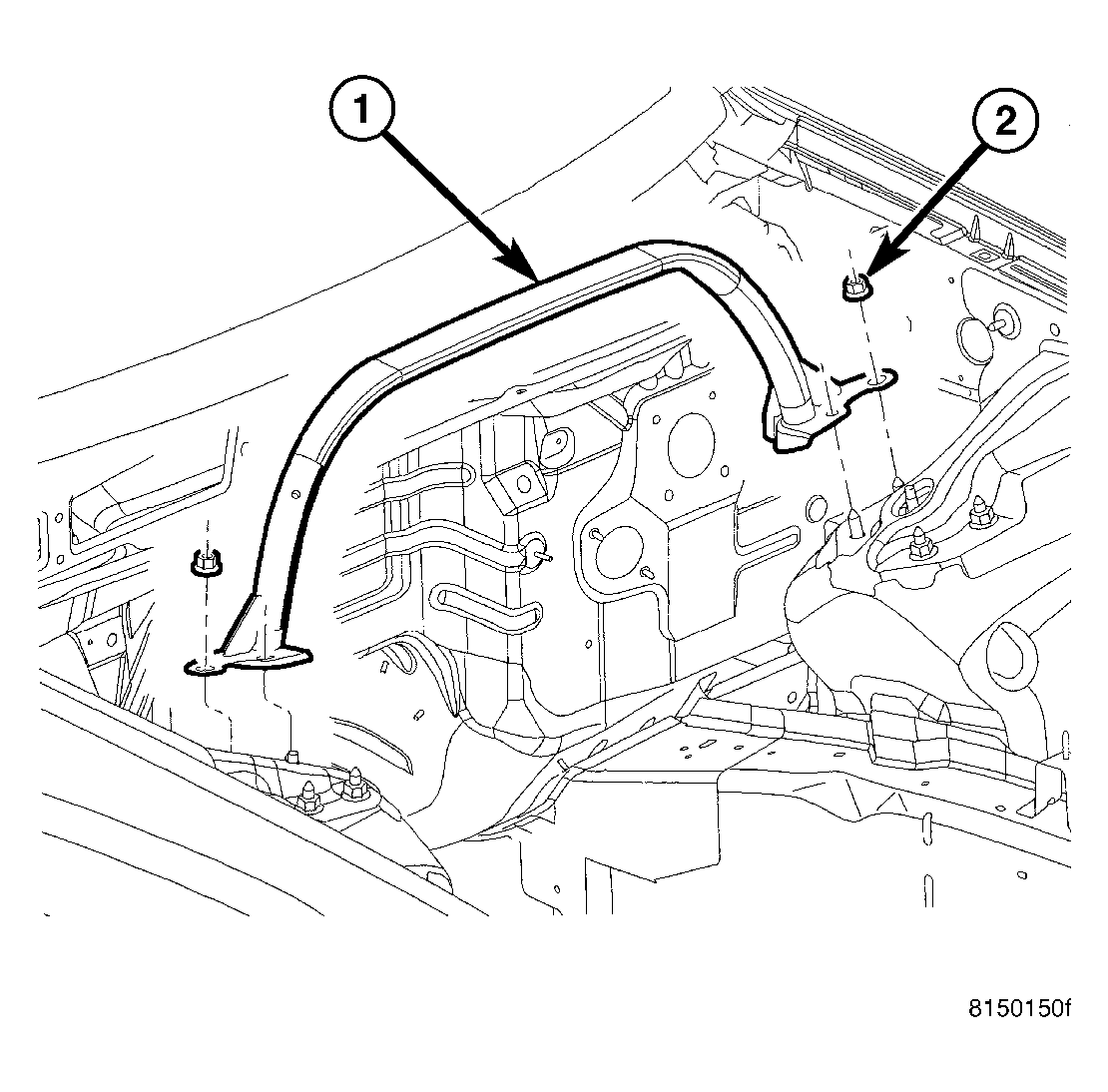

    Fig 16: Removing/Installing Strut Tower Support

    Courtesy of CHRYSLER LLC
30. Install the strut tower support (1).
31. Connect battery negative cable.
32. Start engine and inspect for leaks.
33. Road test vehicle.
