Engine Block: Cover-Structural: Removal

WARNING: This page is about a different variant/trim than selected.

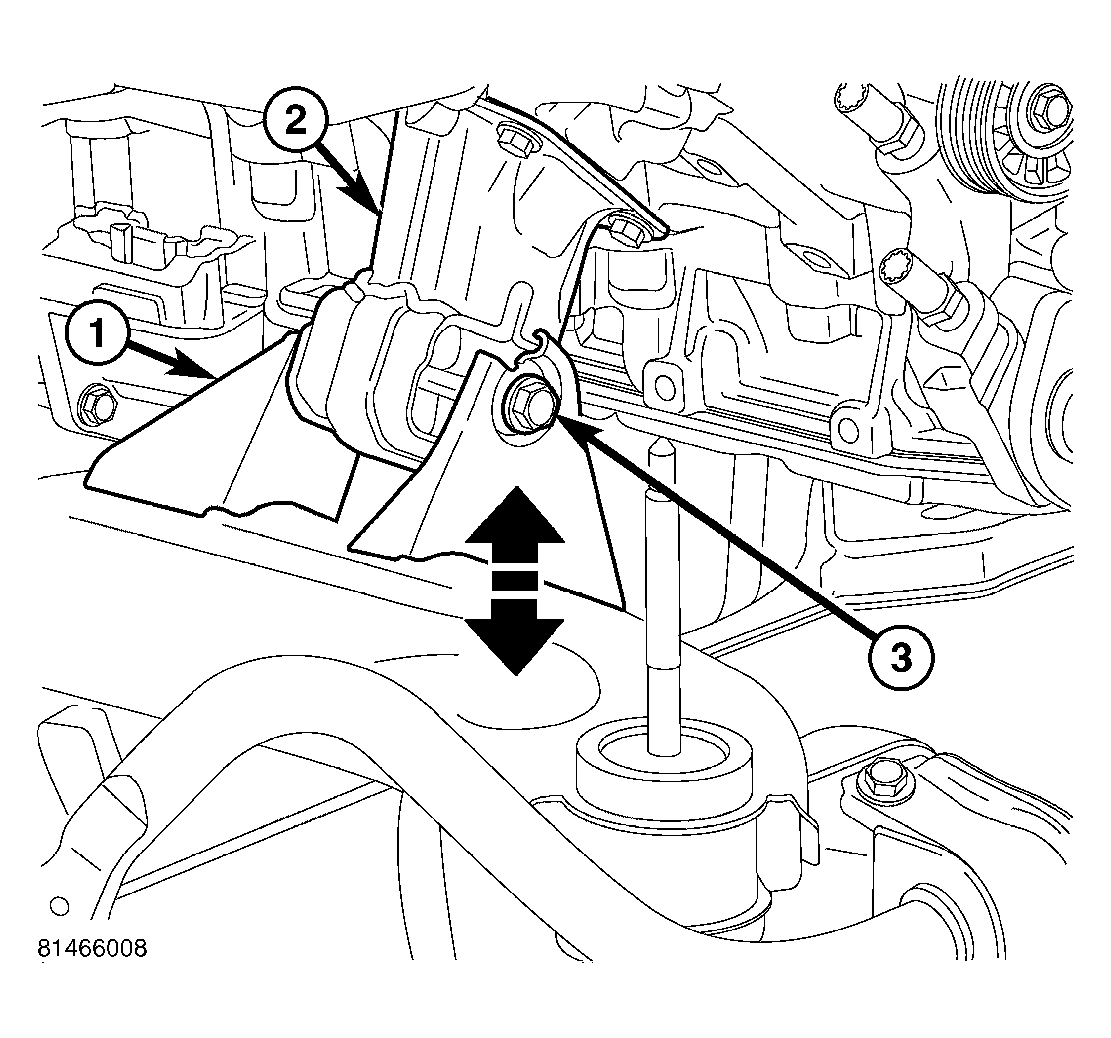

Fig 1: ENGINE MOUNT BOLT
GC0047294Courtesy of CHRYSLER LLC
  1. Loosen both the right and left engine mount bolts (3).

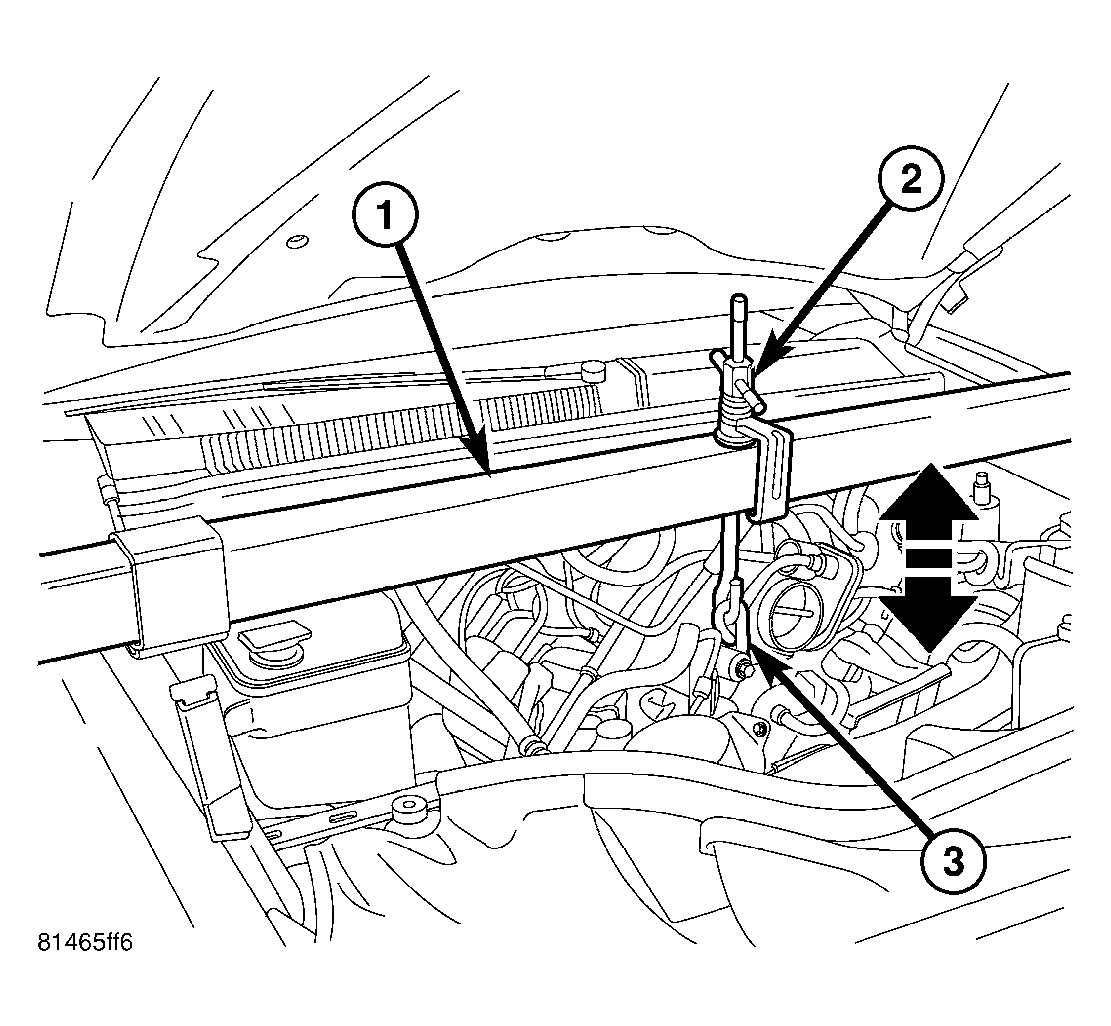

    Fig 2: ENGINE SUPPORT TOOL
    GC0047293Courtesy of CHRYSLER LLC
  2. Install the Engine Support Fixture 8534 (1) and connect the lifting adapter (2) to the water pump bolt stud (3). Do not use the third leg.
  3. Raise the engine to gain clearance for dust cover removal.
    Fig 3: STRUCTURAL DUST COVER
    GC0058596Courtesy of CHRYSLER LLC
  4. Remove the bolts attaching the structural dust cover to the transmission and the oil pan.
  5. Remove the structural dust cover from the vehicle.
