Engine Block: Cover-Structural: Installation

WARNING: This page is about a different variant/trim than selected.

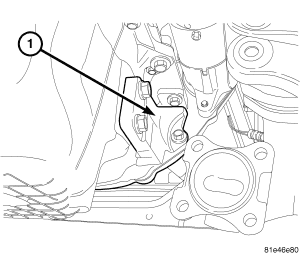

Fig 1: STRUCTURAL DUST COVER
GC0058596Courtesy of CHRYSLER LLC
  1. Loosely install the 4 fasteners.
  2. Ensure the dust cover is flush to the oil pan and transmission.
  3. Tighten the bottom fastener to the transmission to 54 N.m (39 ft. lbs.).
  4. Tighten the top bolt to the Oil Pan to 54 N.m (39 ft. lbs.).
  5. Tighten the top bolt to the transmission to 54 N.m (39 ft. lbs.).
  6. Tighten the bottom bolt to the Oil Pan to 54 N.m (39 ft. lbs.).

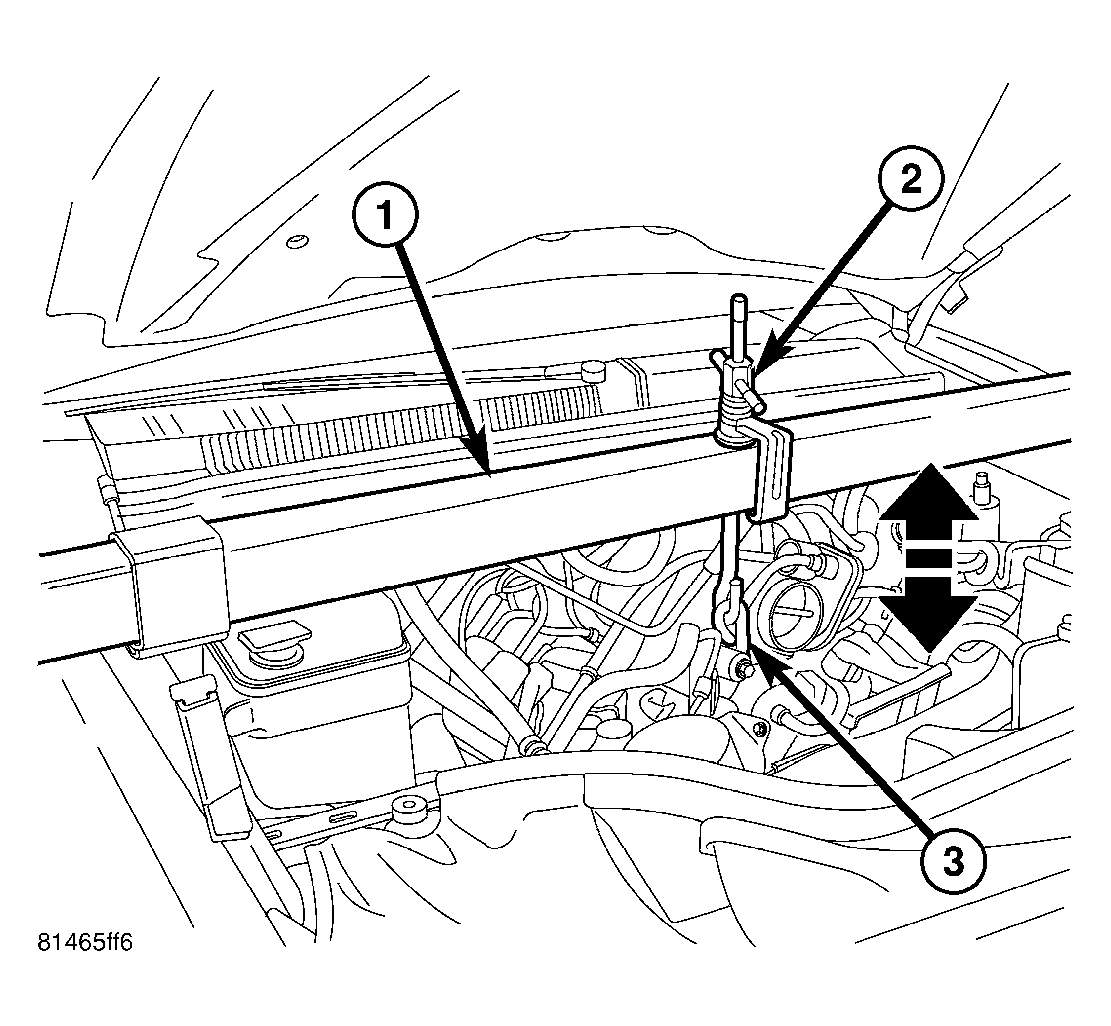

    Fig 2: ENGINE SUPPORT TOOL
    GC0047295Courtesy of CHRYSLER LLC
  7. Lower the vehicle.
  8. Lower engine into the mounts using Engine Support Fixture 8534 (1).
  9. Remove the Engine Support Fixture 8534 (1).

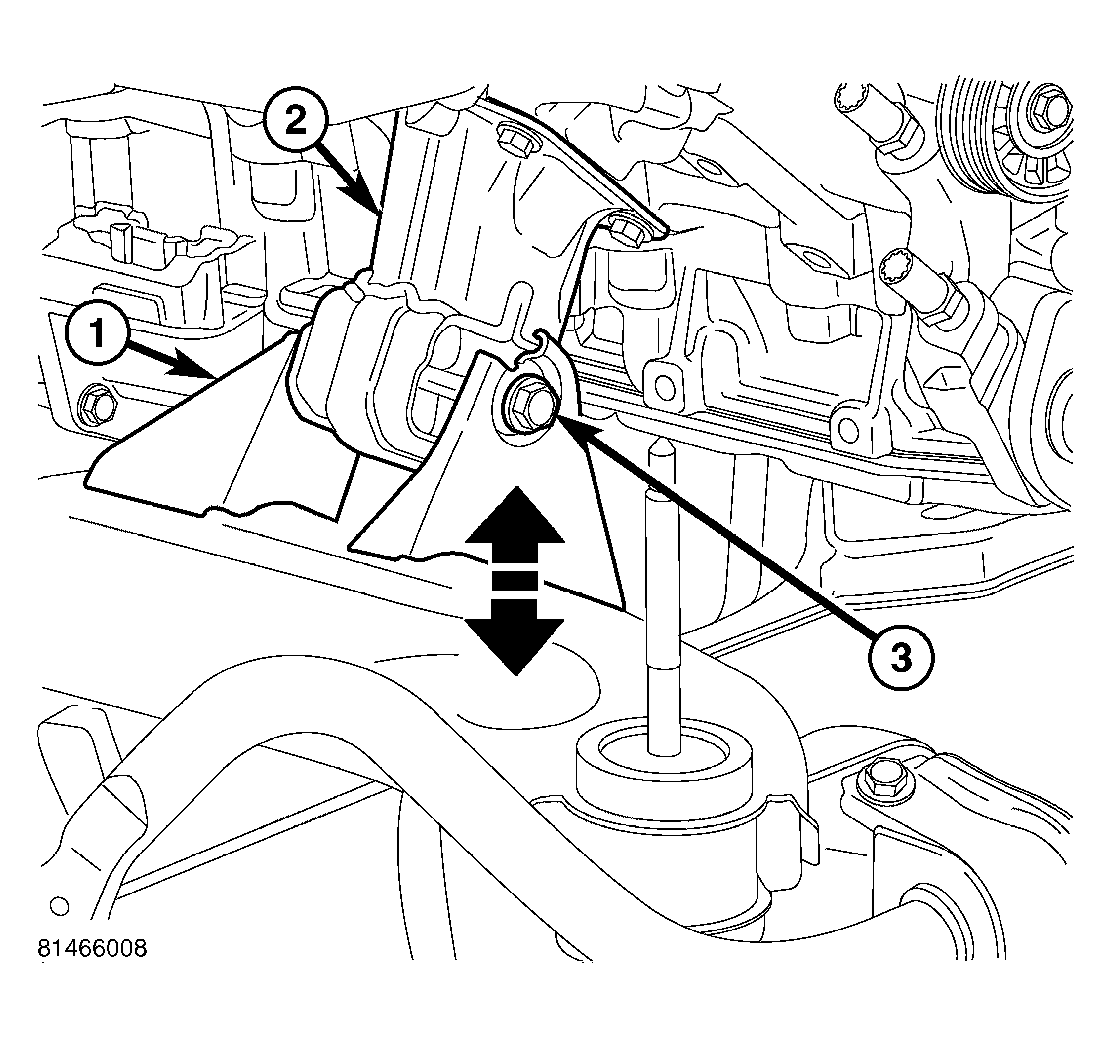

    Fig 3: ENGINE MOUNT BOLT
    GC0047296Courtesy of CHRYSLER LLC
  10. Raise the vehicle.
  11. Tighten the motor mount bolts (3).
