3.7L Engines

Fig 1: PCV Valve Component Location - 3.7L

Courtesy of CHRYSLER LLC

The PCV valve is located at the rear of the left cylinder head.

1. Remove line (1) and rubber connector hose from PCV valve.

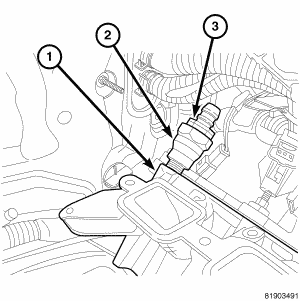

   Fig 2: Removing/Installing PCV Valve - 3.7L

   Courtesy of CHRYSLER LLC
2. Unthread PCV valve (3) from metal fitting (2).
