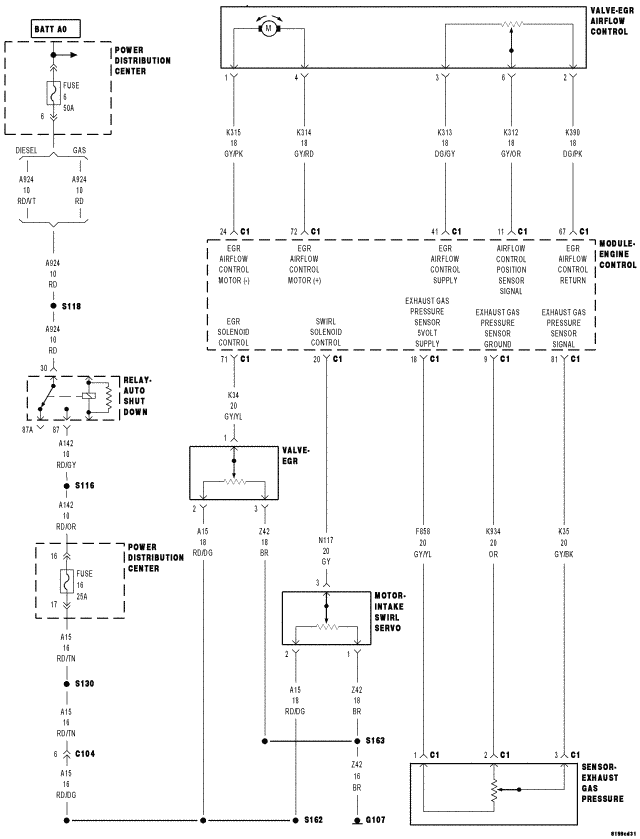

Home >> Jeep >> 2007 >> Grand Cherokee Laredo, 3.0 M >> Repair and Diagnosis >> Engine Performance >> System >> Diesel - DTCS P2010 To P2239 >> P213A-EGR Air Flow Throttle Control Circuit B Open >> Circuit Schematic
