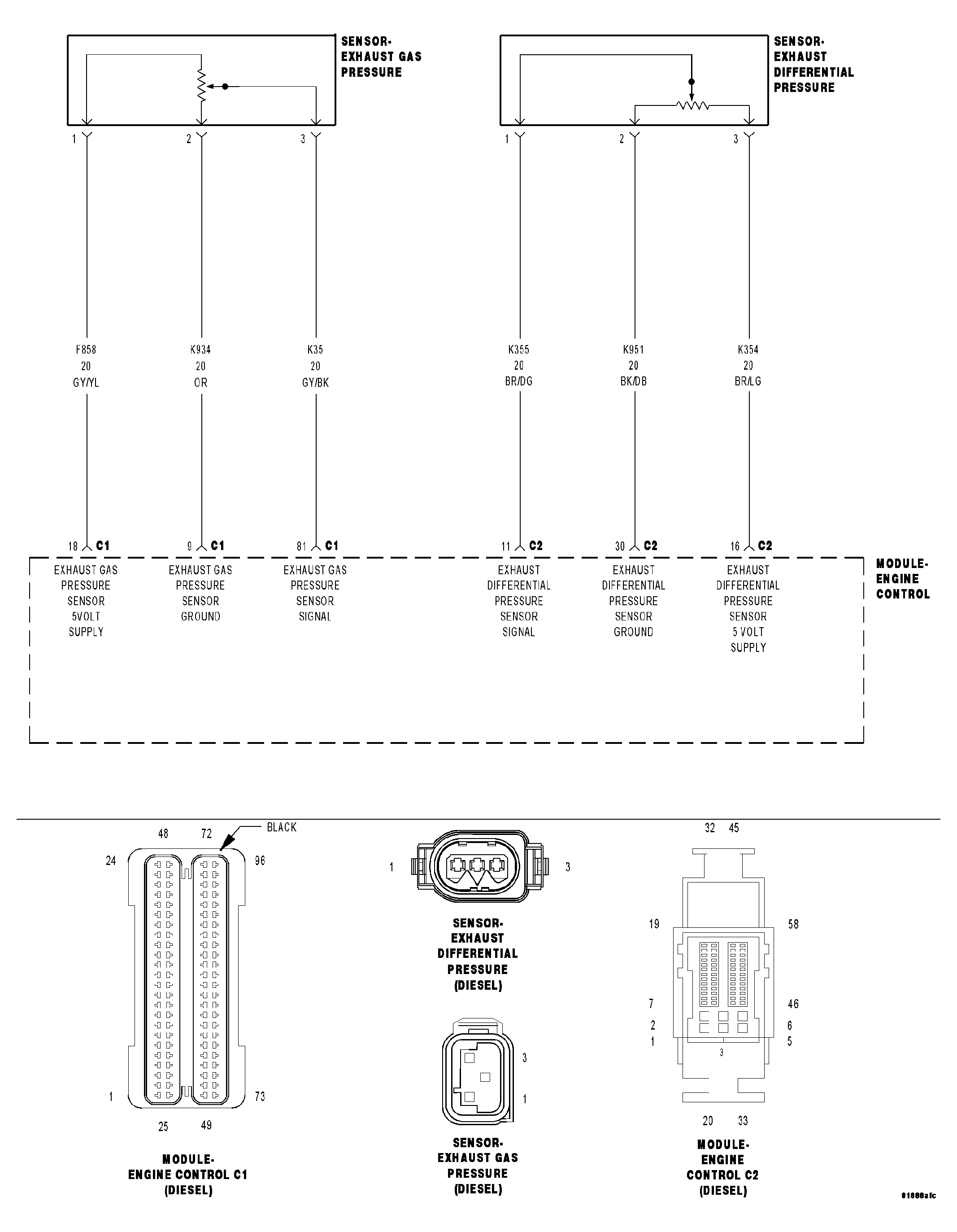

Home >> Jeep >> 2007 >> Grand Cherokee Laredo, 3.0 M >> Repair and Diagnosis >> Engine Performance >> System >> Diesel - DTCS P068A To P2009 >> P1452-Differential Pressure Sensor Hose Performance >> Circuit Schematic
