Diagnostic Test

1) S/C SWITCH VOLTAGES OUT OF RANGE

KEY	SIGNAL 1		SIGNAL 2
KEY	LO LIMIT	HI LIMIT	LO LIMIT	HI LIMIT
RELEASED	4.49	4.58	4.49	4.58
ON-OFF	0.54	0.95	3.69	3.75
SET	3.04	3.42	1.32	1.42
RESUME-ACCEL	3.99	4.09	1.62	2.29
CANCEL	1.19	1.84	3.00	3.10
DECEL	2.09	2.80	0.86	0.94

Turn the ignition on.

With the scan tool, monitor the S/C Switch signal voltages.

Press each button while noting the voltage readings for each circuit.

Are the S/C Switch voltages within the ranges specified in the table when each button is pressed?

Yes

Refer *CHECKING FOR AN INTERMITTENT CONDITION .

Go to step 2).

2) (V72) S/C SWITCH NO. 2 SIGNAL CIRCUIT VOLTAGE

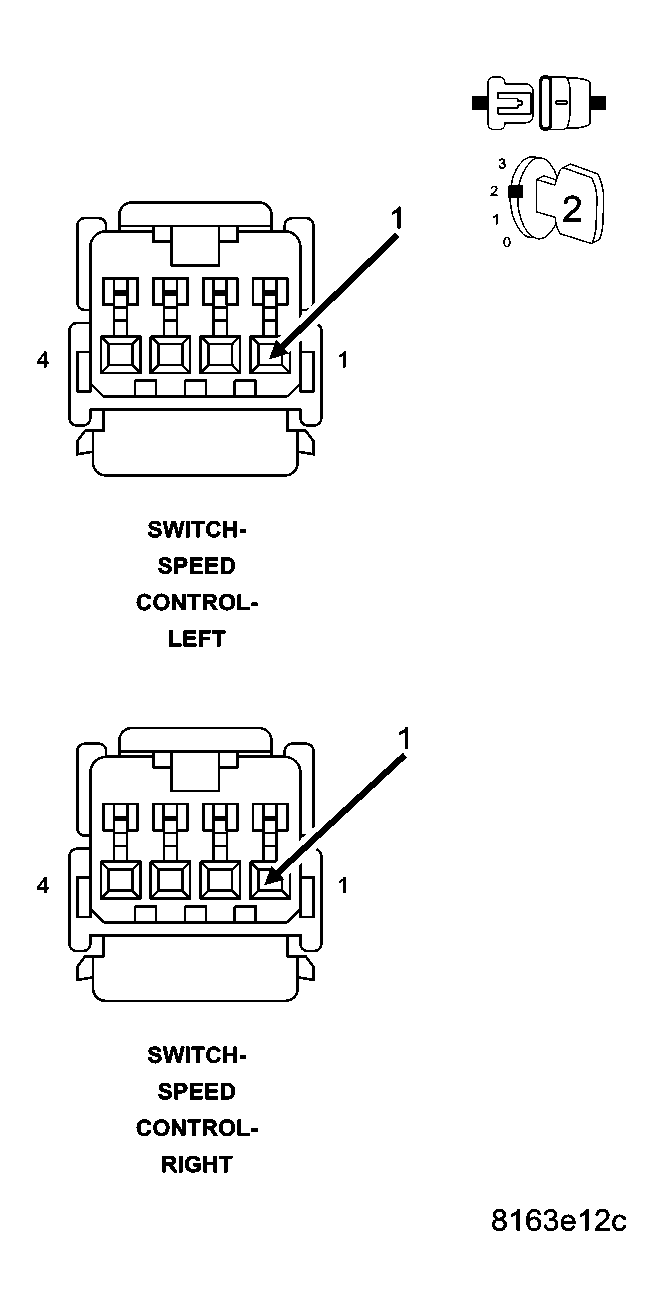

Fig 1: Checking Speed Control Switch No. 2 Signal Circuit Voltage
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect both Speed Control Switch harness connectors.

Turn the ignition on.

Measure the voltage of the (V72) S/C Switch No. 2 Signal circuit at both Speed Control Switch harness connectors.

Select the appropriate voltage reading.

4.5 to 5.5 volts at both connectors.
1. Go to step 3).
4.5 to 5.5 volts at only one connector.
1. Repair the (V72) S/C Switch No. 2 Signal circuit that measured below 4.5 volts for an open circuit or high resistance.
2. Perform ECM VERIFICATION TEST .
Below 4.5 volts at both connectors.
1. Go to step 6).
Above 5.5 volts for either measurement.
1. Go to step 8).
3) (V937) S/C SWITCH GROUND CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE

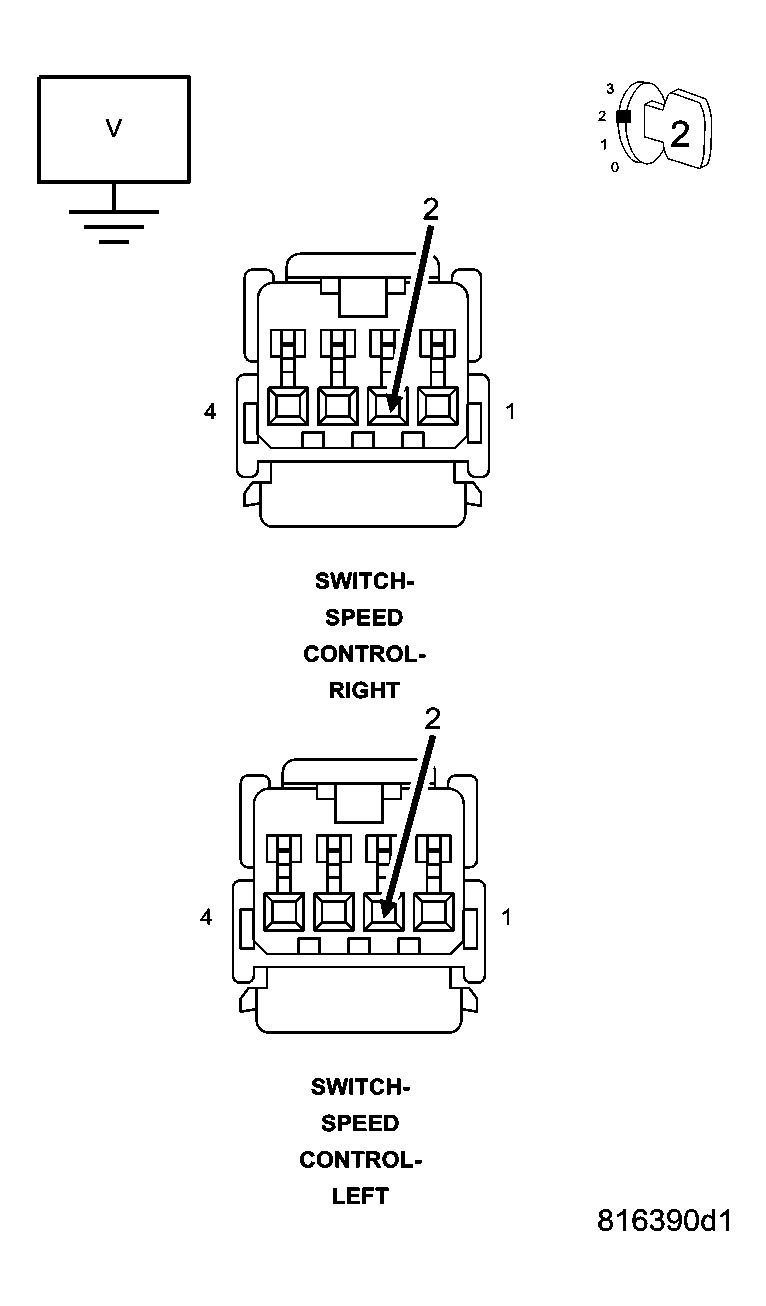

Fig 2: Measuring Resistance Of (V937) S/C Switch Ground Circuit Between Each Speed Control Switch Harness Connector And ECM Harness Connector
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Engine Control Module (ECM) harness connector.

Measure the resistance of the (V937) S/C Switch Ground circuit between each Speed Control Switch harness connector and the Engine Control Module (ECM) harness connector.

Is the resistance below 10.0 ohms for both circuits?

Yes
1. Go to step 4).
No
1. Repair the (V937) S/C Switch Ground circuit for an open circuit or high resistance.
2. Perform ECM VERIFICATION TEST .
4) (V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE

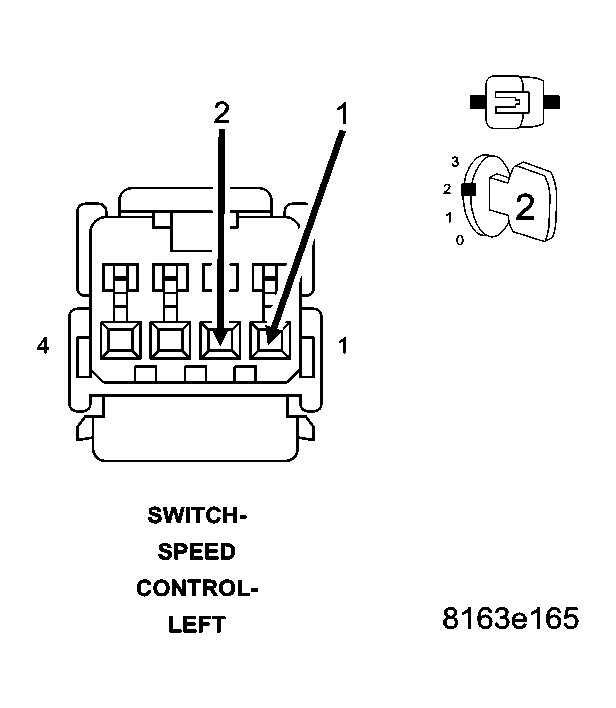

Fig 3: Checking Speed Control Switch Ground Circuit Shorted To Voltage
Courtesy of CHRYSLER LLC

Turn the ignition off.

Remove the ASD Relay from the PDC.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD Relay connector.

Turn the ignition on.

Measure the voltage of the (V937) S/C Switch Ground circuit.

Is there any voltage present?

Yes
1. Repair the (V937) S/C Switch Ground circuit for a short to voltage.
2. Perform ECM VERIFICATION TEST .
No
1. Go to step 5).
5) S/C SWITCHES

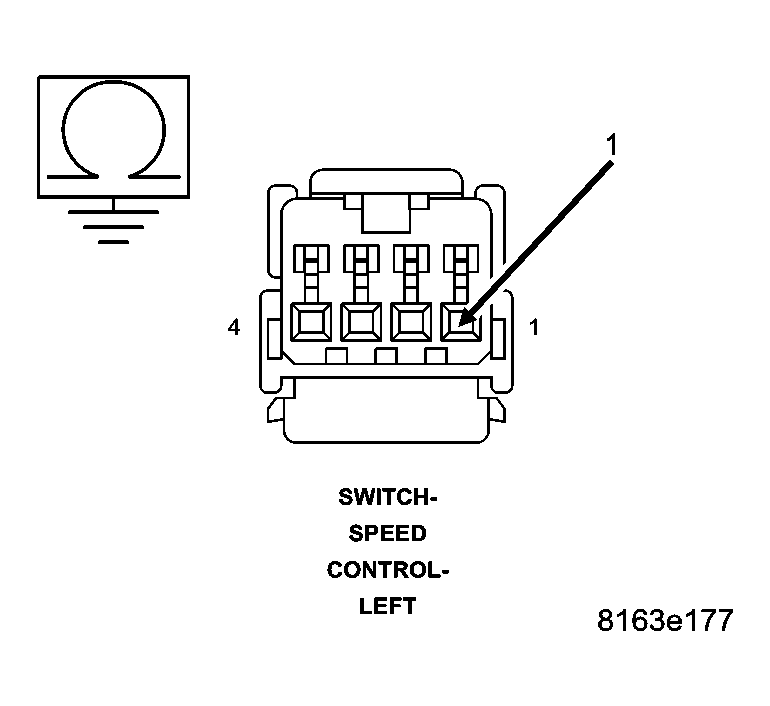

Fig 4: Checking Speed Control Switches
Courtesy of CHRYSLER LLC

Turn the ignition off.

Remove the jumper wire and install the ASD relay.

Connect the Engine Control Module (ECM) harness connector.

Turn the ignition on.

With the scan tool, monitor the S/C Switch Voltage.

While monitoring the scan tool, connect a jumper wire between the (V72) S/C Switch No. 2 Signal circuit and the (V937) S/C Switch Ground circuit in the S/C Switch harness connector.

Does the scan tool display below 0.1 volt with the jumper wire in place?

Yes
1. Replace the Speed Control Switches in accordance with the Service Information.
2. Perform ECM VERIFICATION TEST .
No
1. Go to step 9).
6) (V72) S/C SWITCH NO. 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

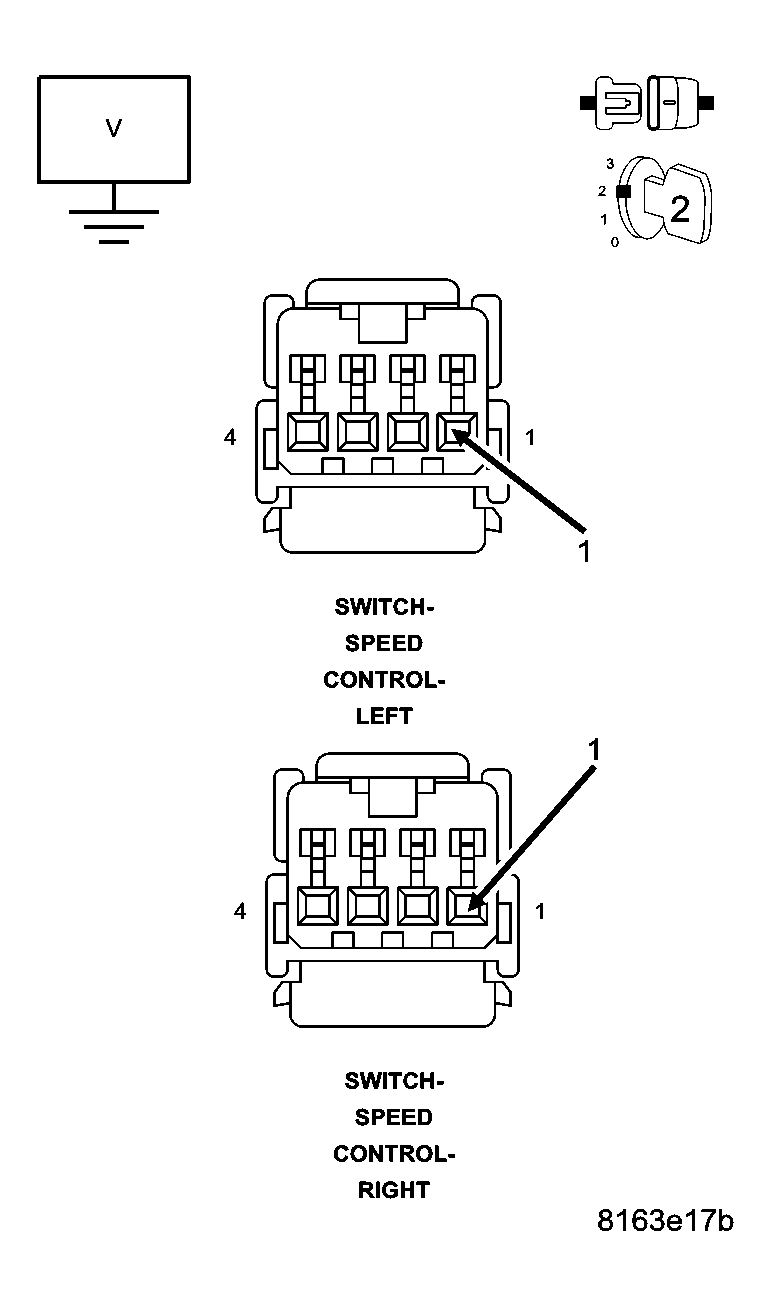

Fig 5: Checking Speed Control Switch No. 2 Signal Circuit For Open Or High Resistance
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Engine Control Module (ECM) harness connector.

Measure the resistance of the (V72) S/C Switch No. 2 Signal circuit between each Speed Control Switch harness connector and the Engine Control Module (ECM) harness connector.

Is the resistance below 10.0 ohms for both measurements?

Yes
1. Go to step 7).
No
1. Repair the (V72) S/C Switch No. 2 Signal circuit for an open circuit or high resistance.
2. Perform ECM VERIFICATION TEST .
7) (V72) S/C SWITCH NO. 2 SIGNAL CIRCUIT SHORTED TO GROUND

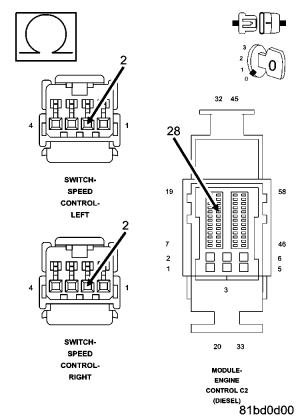

Fig 6: Checking Speed Control Switch No. 2 Signal Circuit For Short To Ground
Courtesy of CHRYSLER LLC

Measure the resistance between ground and the (V72) S/C Switch No. 2 Signal circuit.

Is the resistance above 1000 ohms?

Yes
1. Go to step 9).
No
1. Repair the (V72) S/C Switch No. 2 Signal circuit for a short to ground.
2. Perform ECM VERIFICATION TEST .
8) (V72) S/C SWITCH NO. 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE

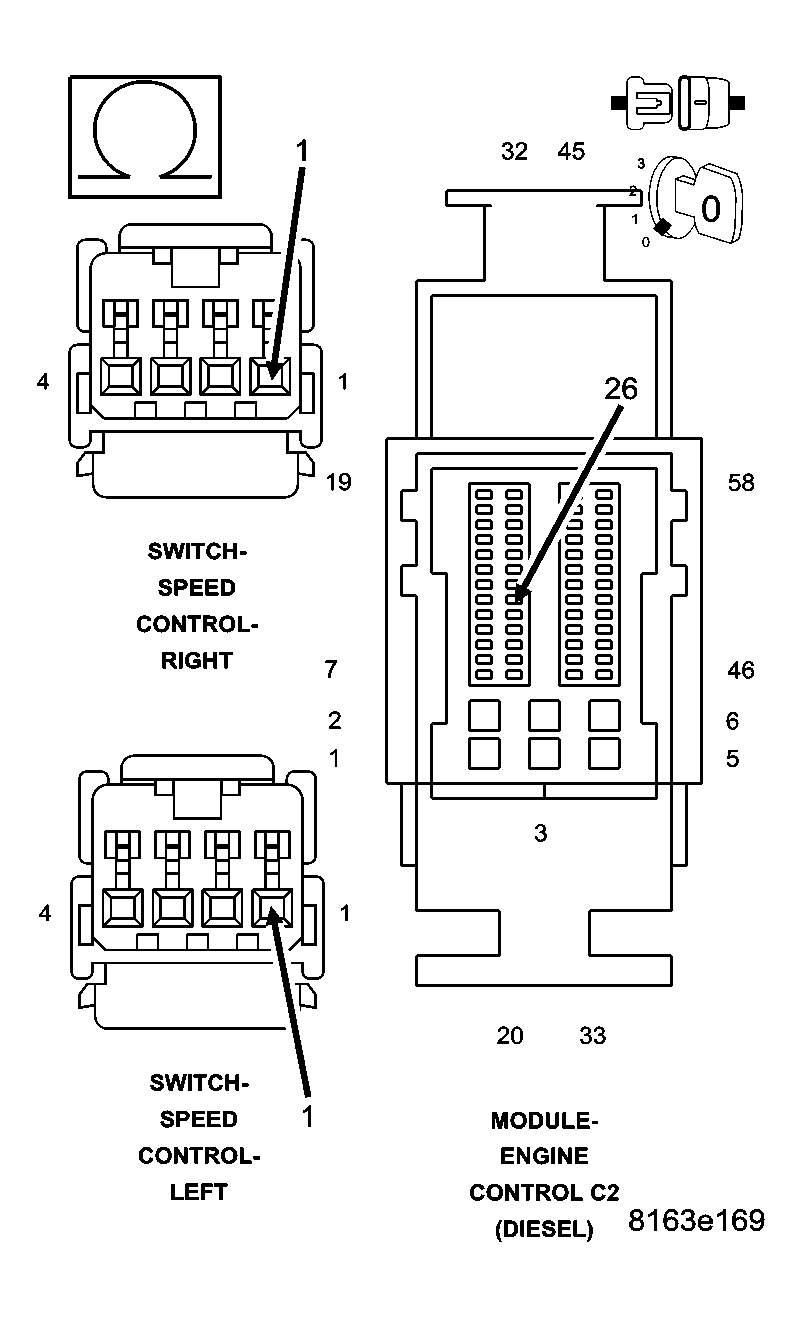

Fig 7: Checking Speed Control Switch No. 2 Signal Circuit For Short To Voltage
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Engine Control Module (ECM) harness connector.

Remove the ASD Relay from the PDC.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD Relay connector.

Turn the ignition on.

Measure the voltage of the (V72) S/C Switch No. 2 Signal circuit.

Is there any voltage present?

Yes
1. Repair the (V72) S/C Switch No. 2 Signal circuit for a short to voltage.
2. Perform ECM VERIFICATION TEST .
No
1. Go to step 9).
9) ENGINE CONTROL MODULE (ECM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control Switch and the Engine Control Module (ECM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes
1. Repair as necessary.
2. Perform ECM VERIFICATION TEST .
No
1. Replace the Engine Control Module (ECM) in accordance with the Service Information.
2. Perform ECM VERIFICATION TEST .
