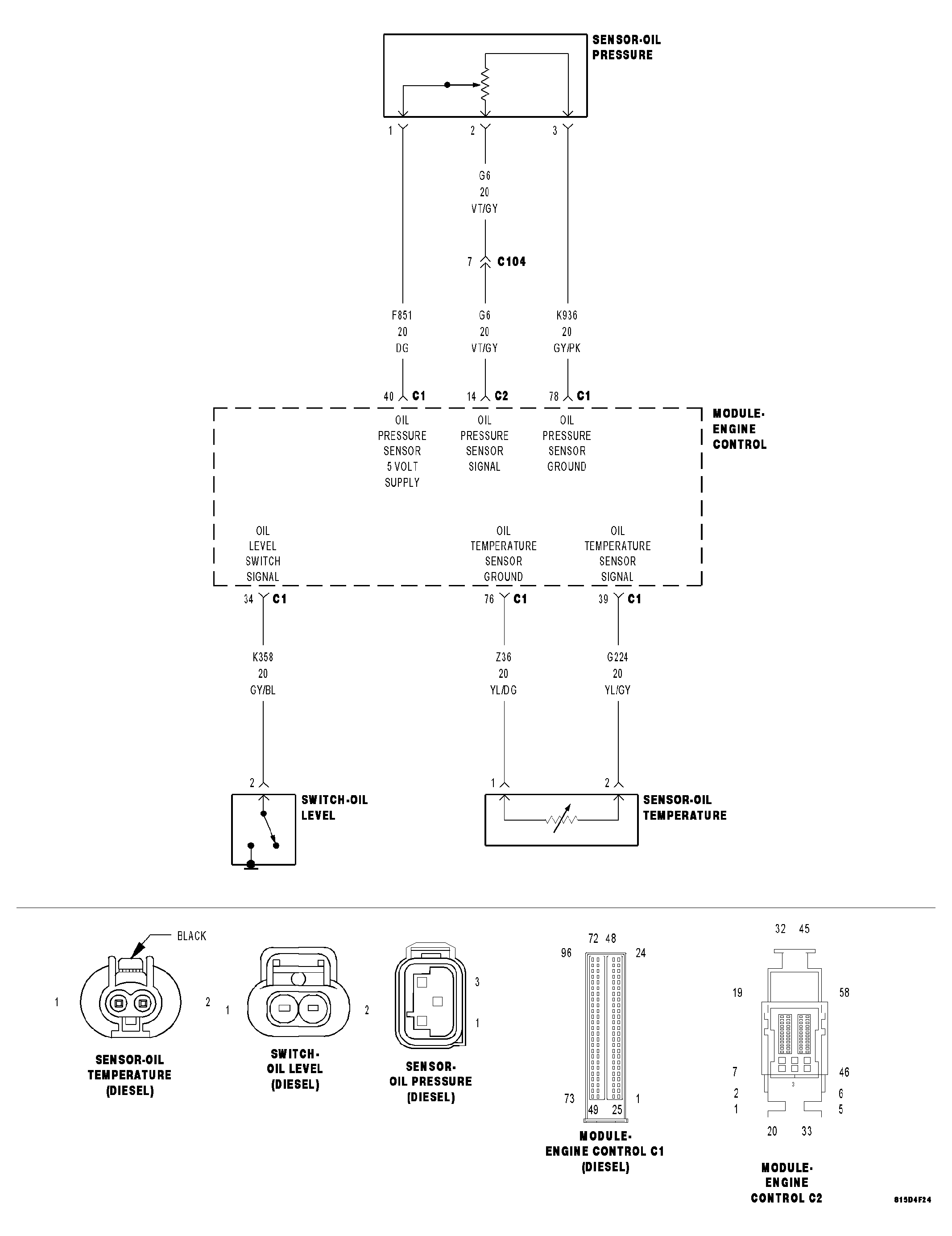

Home >> Jeep >> 2007 >> Grand Cherokee Laredo, 3.0 M >> Repair and Diagnosis >> Engine Performance >> System >> Diesel - DTCS P0198 To P0276 >> P0198-Engine Oil Temperature Sensor Circuit High >> Circuit Schematic
