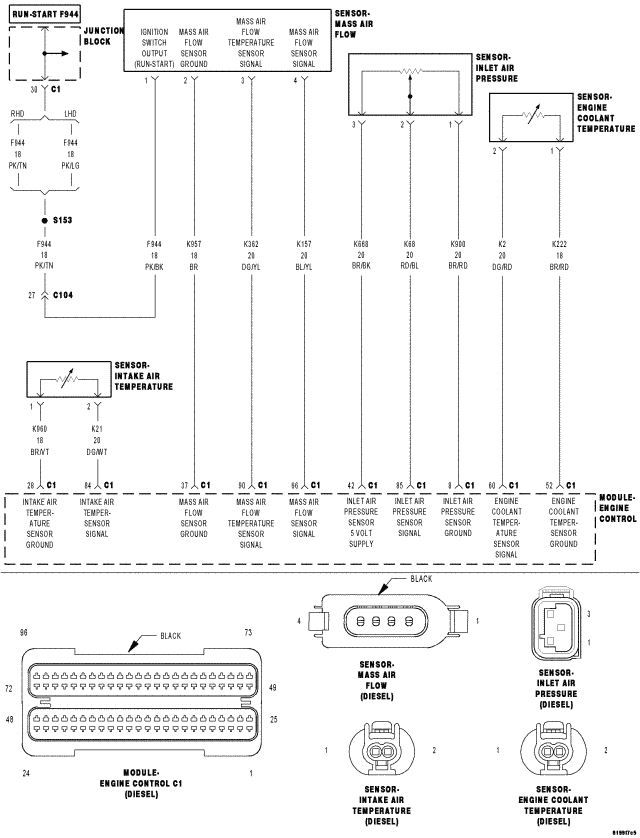

Home >> Jeep >> 2007 >> Grand Cherokee Laredo, 3.0 M >> Repair and Diagnosis >> Engine Performance >> System >> Diesel - DTCS P0100 To P0197 >> P0118-Engine Coolant Temperature Sensor Circuit High >> Circuit Schematic
